Plastic Conveyor Chains with Base Roller Chains

Category: Plastic Chains

Description

Plastic Conveyor Chains with Base Roller Chains

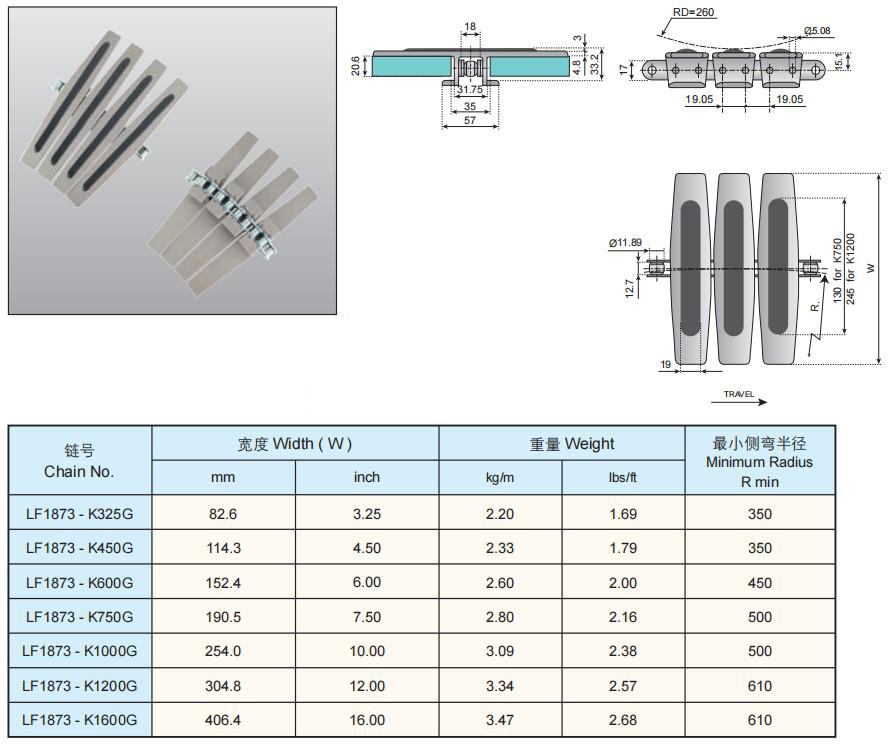

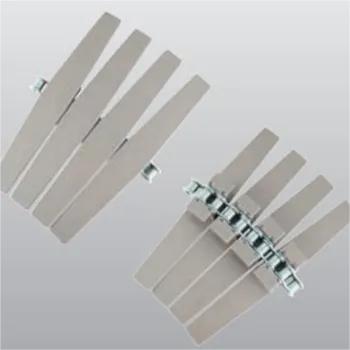

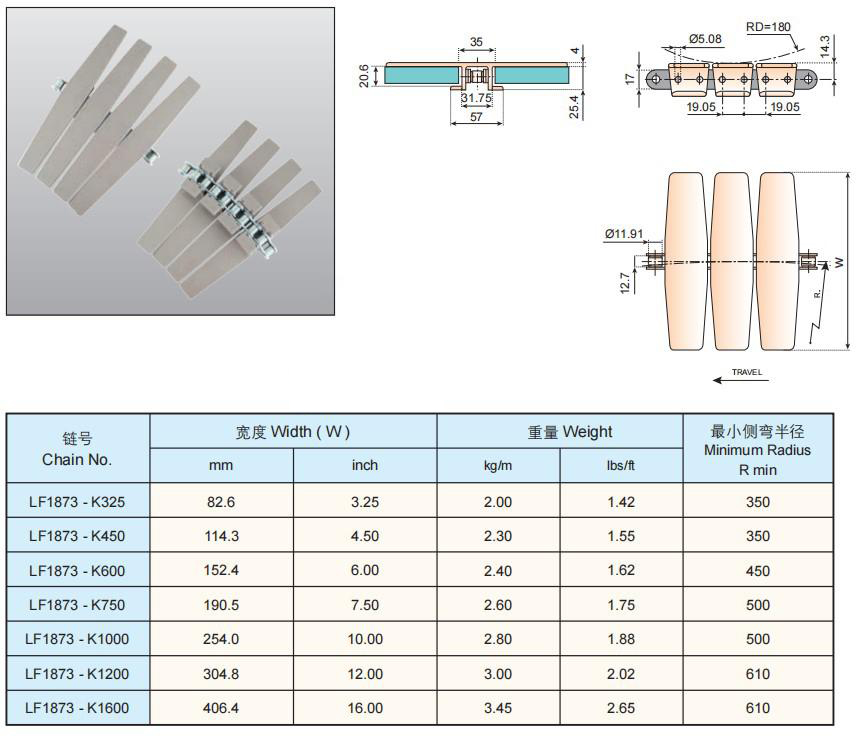

1873 Sideflexing with Base Roller Chains 19.05mm (3/4”) Pitch Widely used in all kinds of curved transportation in food industry. Material ( base roller chain ): stainless steel SUS304 or carbon steel The longest distance: 24M Max. speed: lubricant 90M/min dryness 60M/min Packing: 10 feet = 3.048 M/box 26pcs/M	1873g(1) with Rubber Top Widely used in all kinds of curved transportation in food industry. Material ( base roller chain ): stainless steel SUS304 or carbon steel The longest distance: 24M Max. speed: lubricant 90M/min dryness 60M/min Packing: 10 feet = 3.048 M/box 26pcs/M

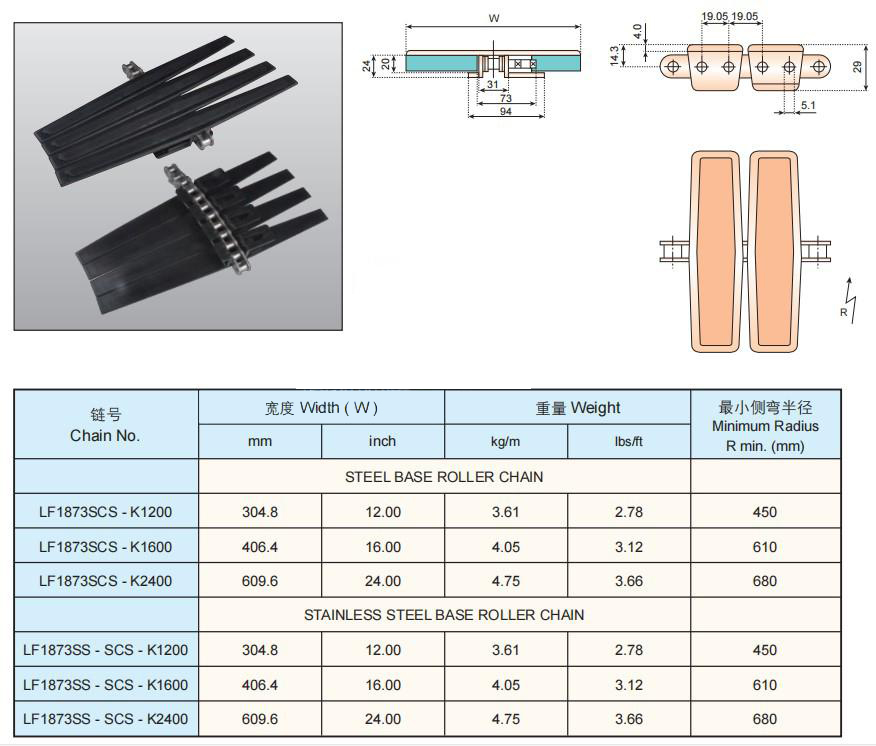

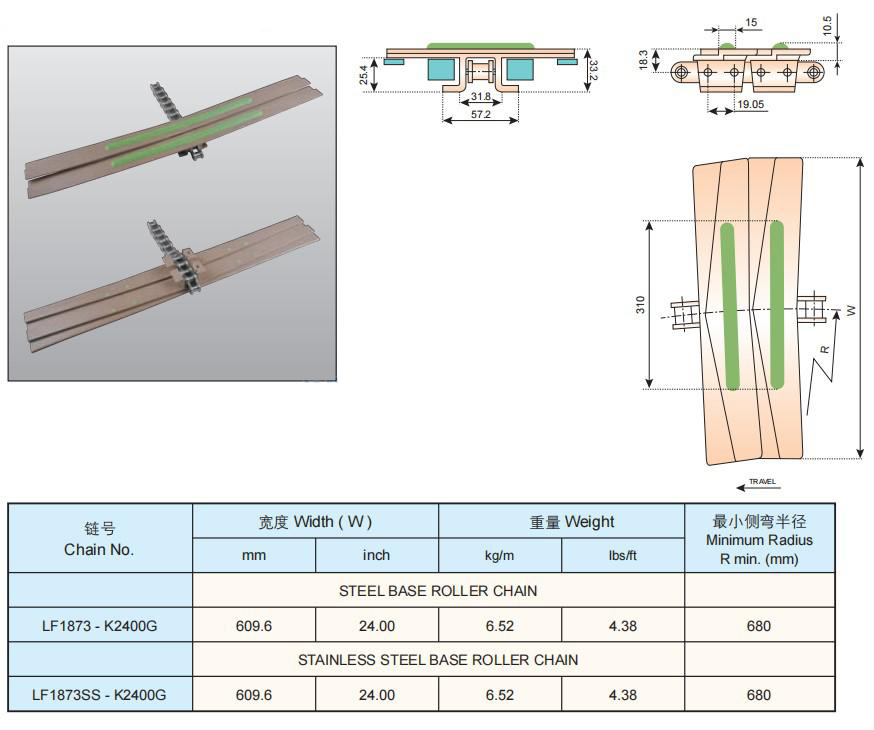

1873g(2) with Rubber Top Mainly used for high-speed long-distance curve conveyors, such as food industry, dish conveying. Bottom chain: carbon steel or stainless steel Consist of metal chain and plastic chain The longest distance: carbon steel – 30m stainless steel – 24m Max. speed: lubricant 90M / min dryness 60M / min Packing: 10 feet = 3.048 M / box 26pcs / M Max. tensile strength in carbon≤4000N stainless steel≤2000N	1873scs Chain (Spiral Conveyor System) Mainly used for high-speed long-distance curve conveyors, such as food industry, dish conveying. Bottom chain: carbon steel or stainless steel Consist of metal chain and plastic chain The longest distance: carbon steel – 30m stainless steel – 24m Max. speed: lubricant 90M / min dryness 60M / min Packing: 10 feet = 3.048 M / box 26pcs / M Max. tensile strength in carbon≤4000N stainless steel≤2000N

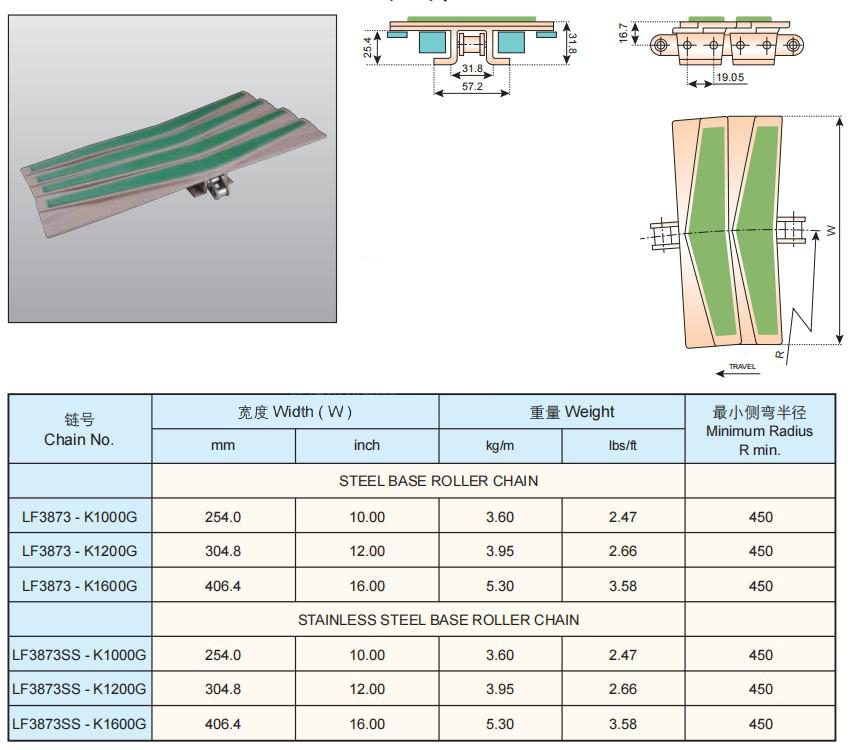

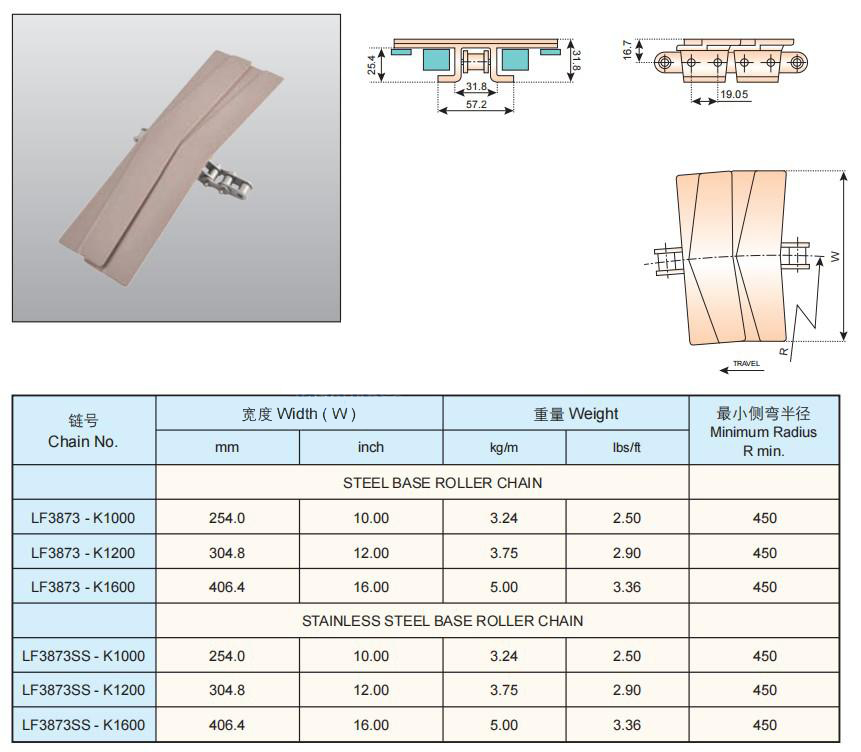

3873 Sideflexing Closed Surface with Base Roller Chains 19.05mm (3/4”) Pitch Widely used in all kinds of curved transportation in food industry. Material ( base roller chain ): stainless steel SUS304 and carbon steel The longest distance: 24M Max. speed: lubricant 90M / min dryness 60M / min Packing: 10 feet = 3.048 M / box 26pcs / M	3873g Sideflexing with Rubber Top with Base Roller Chains 19.05mm (3/4”) Pitch Widely used in all kinds of curved transportation in food industry. Material ( base roller chain ): stainless steel SUS304 and carbon steel The longest distance: 24M Max. speed: lubricant 90M / min dryness 60M / min Packing: 10 feet = 3.048 M / box 26pcs / M

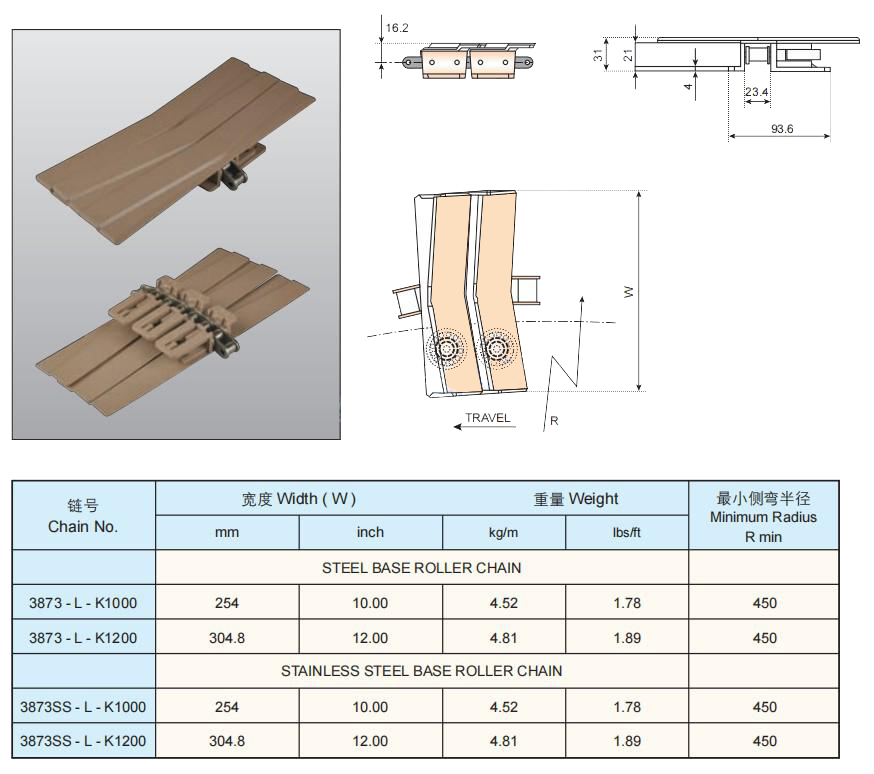

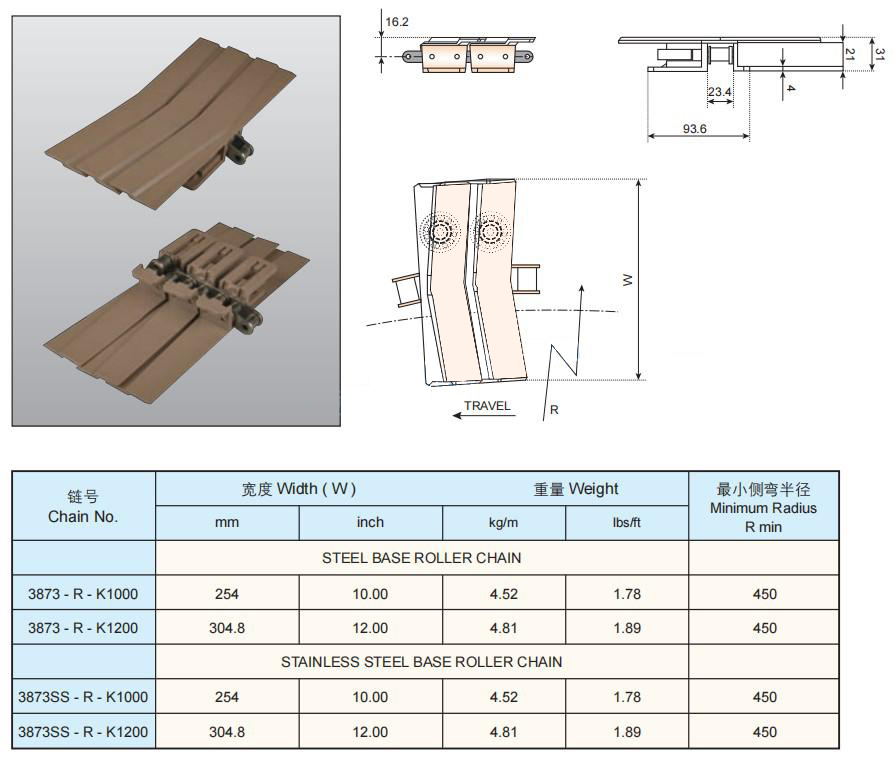

3873-l Sideflexing Chain Application in high-speed curve conveyors in food industry dish conveying Long-distance conveying Bottom chain: carbon steel or stainless steel Consist of metal chain and plastic chain The longest distance: carbon steel-30m stainless steel-24m Max. speed: lubricant 90M/min dryness 60M/min Packing: 10 feet = 3.048 M/box 26pcs/M Max tensile force in carbon≤4000N stainless steel≤2000N	3873-r Sideflexing Chain Application in high-speed curve conveyors in food industry dish conveying Long-distance conveying Bottom chain: carbon steel or stainless steel Consist of metal chain and plastic chain The longest distance: carbon steel-30m stainless steel-24m Max. speed: lubricant 90M/min dryness 60M/min Packing: 10 feet = 3.048 M/box 26pcs/M Max tensile force in carbon≤4000N stainless steel≤2000N

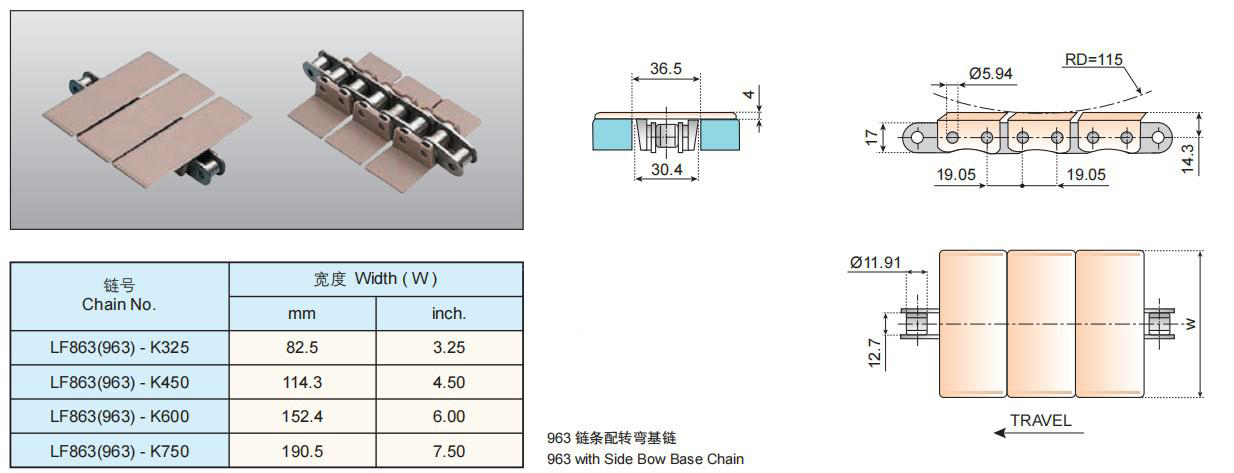

863 (963) Straight Running Plastic Chains with Base Roller Chains 19.05mm(3/4”)pitch

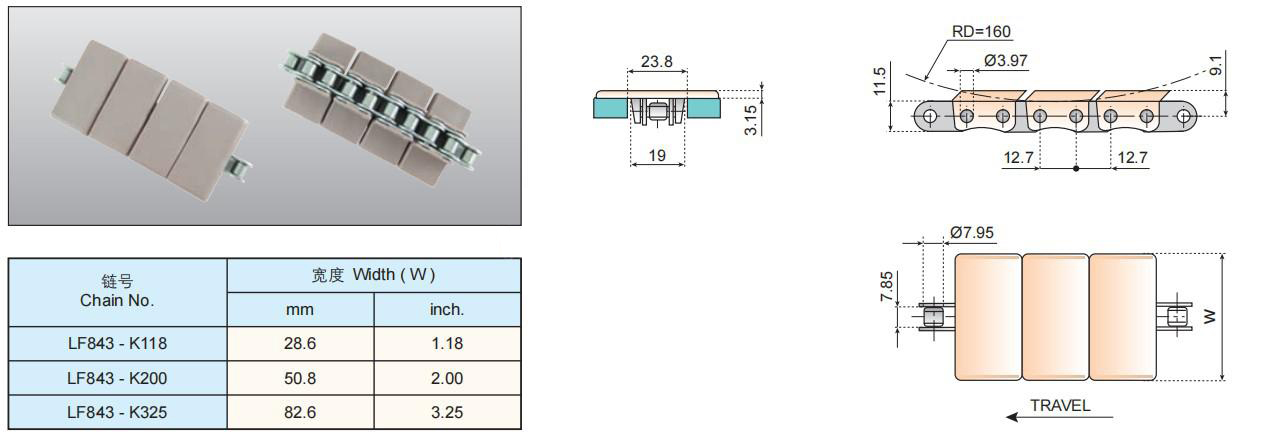

843 Straight Running Plastic Chains with Base Roller Chains 12.7mm(1/2”)pitch

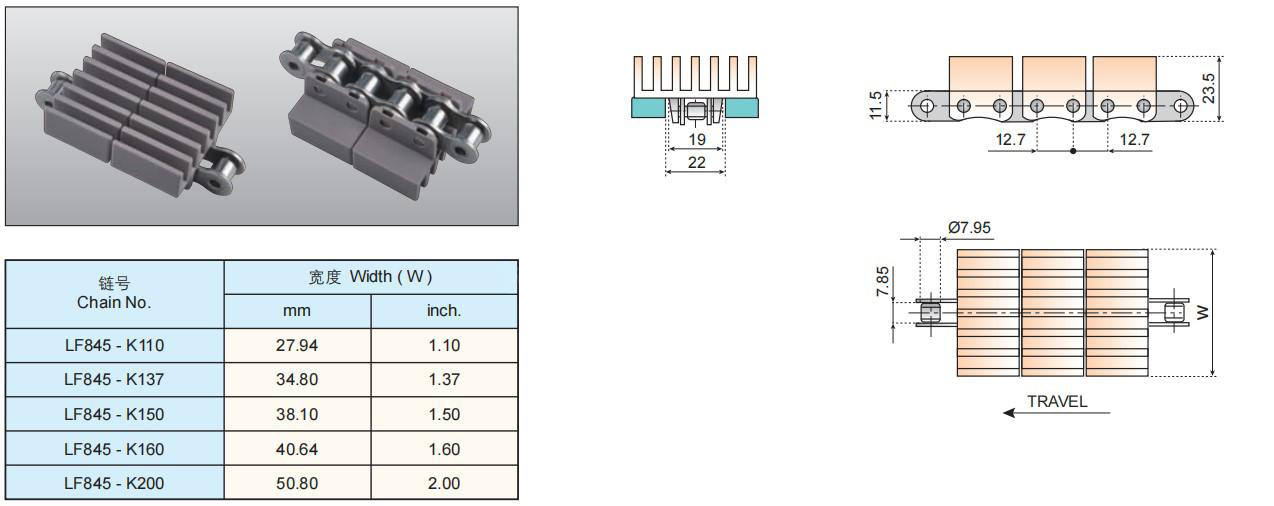

845 Straight Running Plastic Chains with Base Roller Chains 12.7mm(1/2”)pitch

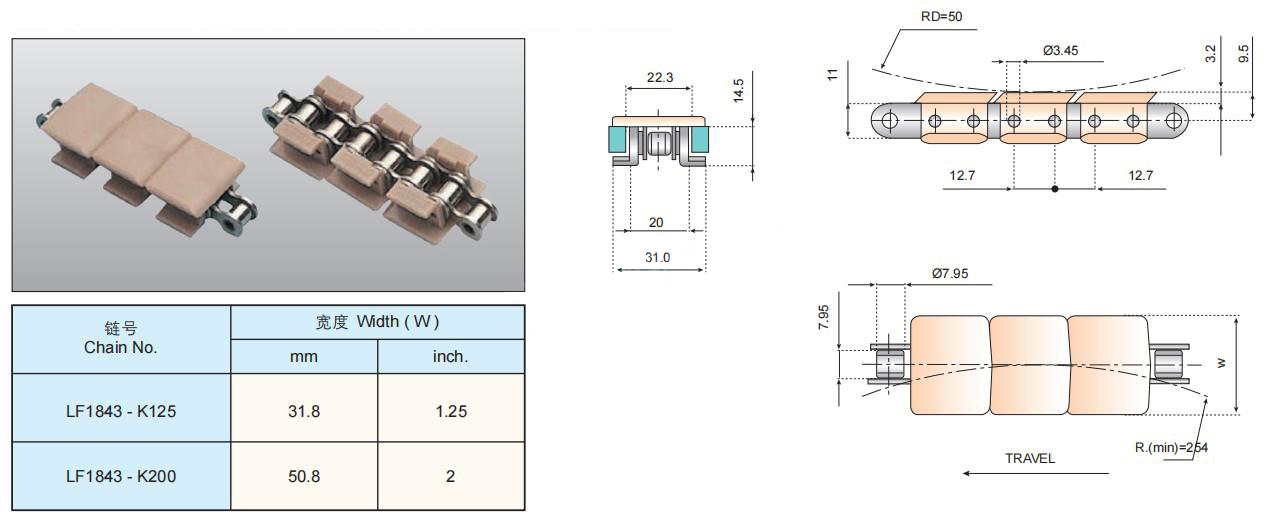

1843 Sideflexing Plastic Chains with Base Roller Chains 12.7mm(1/2”)pitch

1843g3 Sideflexing Plastic Chains with Base Roller Chains 12.7mm(1/2”)pitch

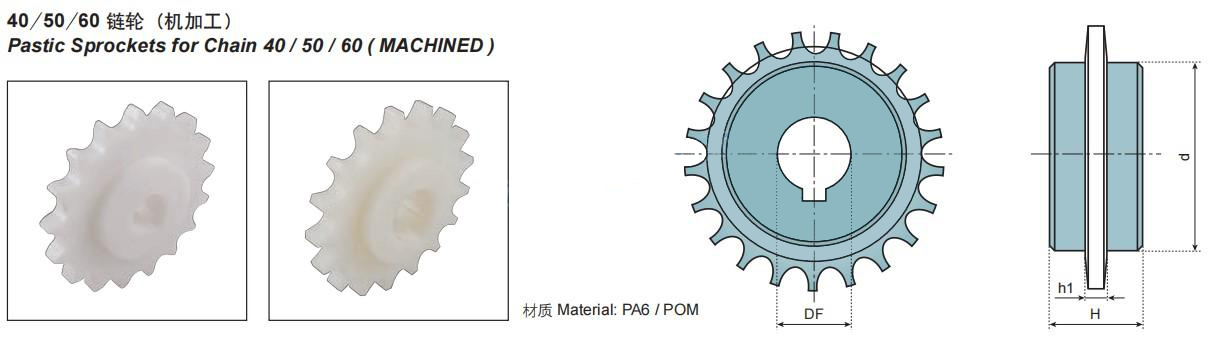

Chains and Sprockets

A conveyor chain(Plastic Conveyor Chains with Base Roller Chains)and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft.
A broken industrial chain sprocket can stop your machine from running. Many machines cannot operate without drive sprockets, and replacing them can cost a lot of time and money. Furthermore, the performance of a conveyor or drive depends on the interaction of the sprocket chain. Using the right sprocket is just as important as choosing the right chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. Our sprockets are engineered to perform well under pressure and to last.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Plastic Conveyor Chains with Base Roller Chains”

Packing&Shipping & Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.

We also can custom color package according to your demand
