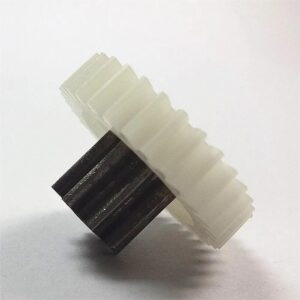

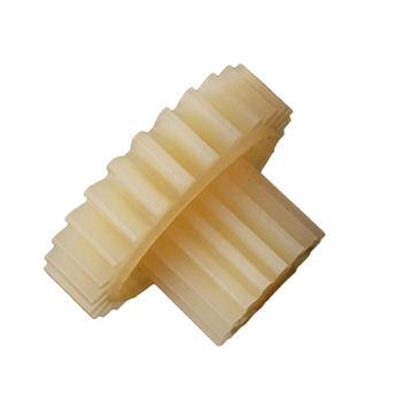

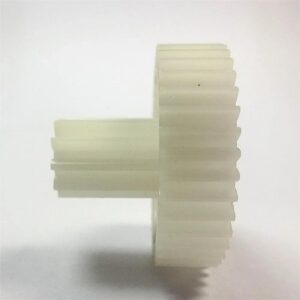

Plastic Double Spur Gear

Plastic Double Spur Gear

A plastic double spur gear(Plastic Double Spur Gear) is a type of gear used in mechanical systems to transmit power and motion between two rotating shafts. It is made of plastic material and has two sets of teeth, one on each side of the gear. The teeth on the gear mesh with the teeth on another gear to transmit torque and rotational motion.

The plastic double spur gear configuration means that there are teeth on both sides of the gear, which allows it to mesh with two other gears simultaneously, one on each side. This increases the efficiency of the gear system as it enables power to be transmitted in both directions.

Plastic double spur gears are commonly used in various applications, such as robotics, toys, and small machinery. They are lightweight, cost-effective, and have good wear resistance. However, they may not be suitable for high torque or high-speed applications, as they may wear out quickly or deform under heavy loads.

Specifications of Plastic Double Spur Gear

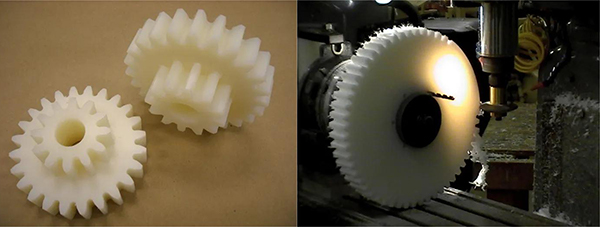

Advantages of Using Double Spur Gear Plastic

There are several advantages of using plastic double spur gears in mechanical systems:

1. Low cost: One of the main advantages of using plastic double spur gears is their low cost compared to metal gears. This makes them an attractive option for applications where cost is a primary consideration.

2. Lightweight: Plastic double spur gears are lighter in weight than metal gears, which makes them ideal for applications where weight is a concern.

3. Corrosion resistance: Plastic double spur gears are resistant to corrosion, which makes them suitable for use in harsh environments.

4. Noise reduction: Plastic double spur gears generate less noise than metal gears, which makes them suitable for applications where noise levels need to be kept low.

5. Self-lubricating: Some plastic double spur gears have self-lubricating properties, which eliminates the need for additional lubrication and maintenance.

6. Easy to manufacture: Plastic double spur gears can be easily molded into complex shapes and sizes, which makes them easy to manufacture and customize for specific applications.

7. Good wear resistance: Double spur gear plastic materials have good wear resistance, which makes them suitable for applications where the gears are subjected to frequent use.

8. Double spur gear configuration: The plastic double spur gear configuration of plastic gears enables them to transmit power and motion in both directions, which increases the efficiency of the gear system.

Overall, the advantages of using plastic double spur gears make them a popular choice for a wide range of applications, including robotics, toys, and small machinery. However, it’s important to note that plastic double spur gears may not be suitable for high torque or high-speed applications, as they may wear out quickly or deform under heavy loads.

Disadvantages of Plastic Double Spur Gears

While plastic double spur gears offer many advantages, they also have some disadvantages, including:

Lower temperature resistance: Plastic double spur gears have a lower temperature resistance compared to metal gears. They may deform or melt under high temperatures, which limits their use in high-temperature applications.

Limited load-bearing capacity: Plastic double spur gears have a lower load-bearing capacity than their metal counterparts. They may wear out or break easily under heavy loads, which limits their use in high-torque or high-speed applications.

Less durable: Plastic double spur gears are generally less durable than metal gears. They may wear out faster and require more frequent replacement.

Limited compatibility: Plastic double spur gears may not be compatible with certain lubricants or chemicals, which can cause them to degrade or fail.

Limited size and strength: Plastic double spur gears are generally limited in size and strength compared to metal gears. They may not be suitable for applications that require large or heavy-duty gears.

Environmental impact: Plastic double spur gears are not biodegradable and may contribute to environmental pollution if not disposed of properly.

Overall, the disadvantages of plastic double spur gear make them more suitable for applications where high torque, high-speed, or high-temperature resistance is not a requirement. It’s important to carefully consider the application requirements before choosing between plastic and metal gears.

Applications of Plastic Double Spur Gears

Plastic double spur gears are used in a variety of applications, including:

(1) Robotics: Plastic double spur gears are often used in robotics applications due to their lightweight and low-noise characteristics. They are used in robot joints, grippers, and other motion control systems.

(2) Toys: Plastic double spur gears are commonly used in toys such as model cars, robots, and other mechanical toys. They provide a cost-effective and lightweight solution for transmitting motion and power.

(3) Medical devices: Plastic double spur gears are used in various medical devices, such as pumps, imaging equipment, and surgical instruments. They offer a lightweight and corrosion-resistant solution for medical applications.

(4) Consumer electronics: Plastic double spur gears are used in various consumer electronics, such as cameras, printers, and scanners. They provide a cost-effective and lightweight solution for transmitting motion and power.

(5) Automotive: Plastic double spur gears are used in automotive applications such as power windows, windshield wipers, and climate control systems. They provide a lightweight and cost-effective solution for transmitting motion and power.

(6) Small machinery: Plastic double spur gears are used in small machinery such as vending machines, office equipment, and small appliances. They provide a cost-effective and lightweight solution for transmitting motion and power.

(7) Aerospace: Plastic double spur gears are used in aerospace applications such as satellites, drones, and other small flying devices. They provide a lightweight and corrosion-resistant solution for aerospace applications.

Overall, plastic double spur gears are commonly used in applications where weight, cost, and corrosion resistance are important factors. They are not typically used in applications that require high torque or high-speed capabilities.

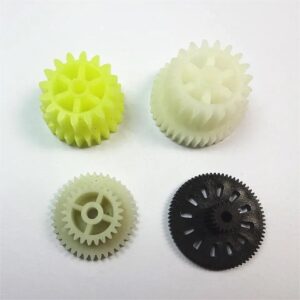

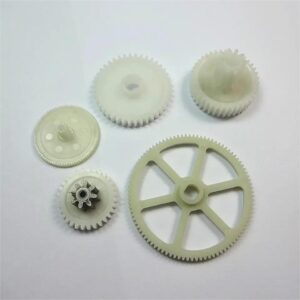

Double Spur Gear Plastic Manufacturers & Suppliers

Power-trans is a plastic double spur gear manufacturer offering the best custom-made replacement plastic gears you’ll find anywhere. Our engineering team sets the industry standard for long-lasting, corrosion-resistant custom plastic gears and plastic drive gears in diameters ranging from .5″ to 72″. A critical component to many machines and other systems, custom-made replacement plastic gears from Power-transtech can help get your operations moving again. As a double spur gear plastic manufacturer, we can machine and fabricate the components your machinery needs.

If any plastic double spur gears from your machinery have broken while in use, you may not be able to easily find replacement parts. Power-transtech is your first choice for all your custom plastic gear machining needs. We can bring you replacement plastic gears that will fit flawlessly within your existing systems, saving you trouble and headache from locating replacement gears that fit properly. Through our plastic double spur gear manufacturing, we can reverse engineer and reproduce replacement plastic double spur gears from your broken samples or incomplete definitions.

FAQ

Q1: What materials are used to make plastic double spur gears?

A: Plastic double spur gears can be made from various types of plastic materials, such as nylon, acetal, polycarbonate, and polyethylene.

Q2: What are the advantages of using plastic double spur gears over metal gears?

A: Plastic double spur gears are generally lighter in weight, less expensive, and have good wear resistance. They also generate less noise and are resistant to corrosion.

Q3: What are the disadvantages of using plastic double spur gears?

A: Plastic double spur gears may not be suitable for high torque or high-speed applications, as they may wear out quickly or deform under heavy loads. They also have a lower temperature resistance than metal gears.

Q4: What is the double spur gear configuration of plastic gears?

A: The double spur gear plastic configuration of plastic gears means that there are teeth on both sides of the gear, which allows it to mesh with two other gears simultaneously, one on each side. This increases the efficiency of the gear system as it enables power to be transmitted in both directions.

Q5: What are some common applications of plastic double spur gears?

A: Plastic double spur gears are commonly used in various applications, such as robotics, toys, and small machinery. They are also used in the automotive, medical, and consumer electronics industries.
