Plastic Flat Top Chains with Rubber Top
The plastic flat top chains constitute a lightweight yet a strong and silent alternative to steel chains. Plastic flat top chains are made of engineering plastic and are connected using stainless steel pins. These chains are primarily used in the food and packaging industry for conveying many kinds of containers. High friction rubber can be assembled on the top or bottom of a flat top chain. In this way, it can not only improve the increased friction of the surface but also protect fragile products from falling. Commonly, the rubber can be a standard thin rubber layer or thick elastic polyurethane rubber. Other types can be customized according to customers’ requirements.
Plastic Flat Top Chains with Rubber Top
The rubber plastic flat top chains constitute a lightweight yet a strong and silent alternative to steel chains. Plastic flat top chains are made of engineering plastic and are connected using stainless steel pins. These chains are primarily used in the food and packaging industry for conveying many kinds of containers. High friction rubber can be assembled on the top or bottom of a flat top chain. In this way, it can not only improve the increased friction of the surface but also protect fragile products from falling. Commonly, the rubber can be a standard thin rubber layer or thick elastic polyurethane rubber. Other types can be customized according to customers’ requirements.

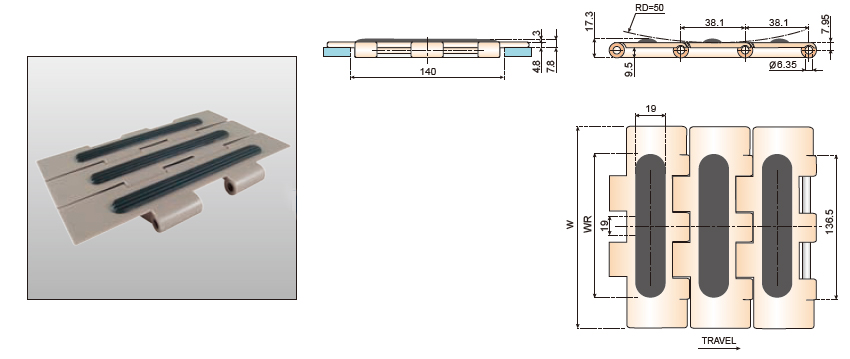

(1) 820G Single Hinge Straight Running Plastic Flat Top Chains with Rubber Top
Product Specifications
| Chain No. | Width ( W ) | Width ( WR ) | ||
| mm | inch | mm | inch | |
| 820 – K325G | 82.6 | 3.25 | 63 | 2.48 |
| 820 – K350G | 88.9 | 3.50 | 63 | 2.48 |
| 820 – K400G | 101.6 | 4.00 | 63 | 2.48 |
| 820 – K450G | 114.3 | 4.50 | 63 | 2.48 |
| 820 – K600G | 152.4 | 6.00 | 130 | 5.12 |
| 820 – K750G | 190.5 | 7.50 | 168 | 6.62 |

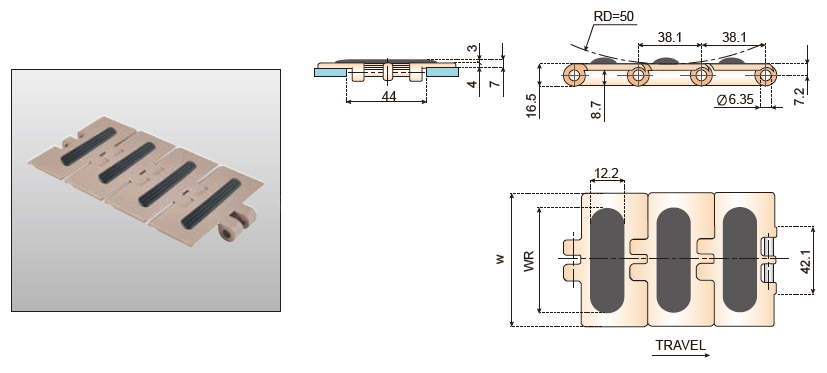

(2) 821G Double Hinge Straight Running Plastic Flat Top Chains with Rubber Top
Product Specifications
| Chain No. | Width ( W ) | Width ( WR ) | ||
| mm | inch | mm | inch | |
| 821 – K750G | 190.5 | 7.50 | 168 | 6.62 |
| 821 – K1000G | 254.0 | 10.00 | 195 | 7.68 |
| 821 – K1200G | 304.8 | 12.00 | 245 | 9.65 |

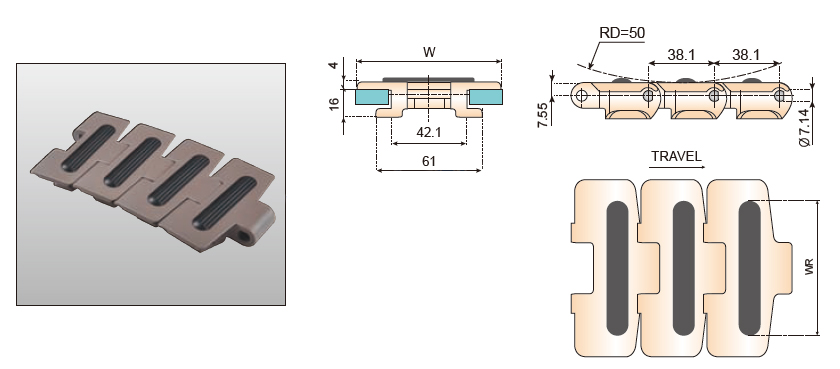

(3) 880TAB Sideflexing Plastic Flat Top Chains with Rubber Top
Product Specifications
| Chain No. | Width ( W ) | Width ( WR ) | ||
| mm | inch | mm | inch | |
| 880TAB – K325G | 82.6 | 3.25 | 63 | 2.48 |
| 880TAB – K450G | 114.3 | 4.50 | 63 | 2.48 |

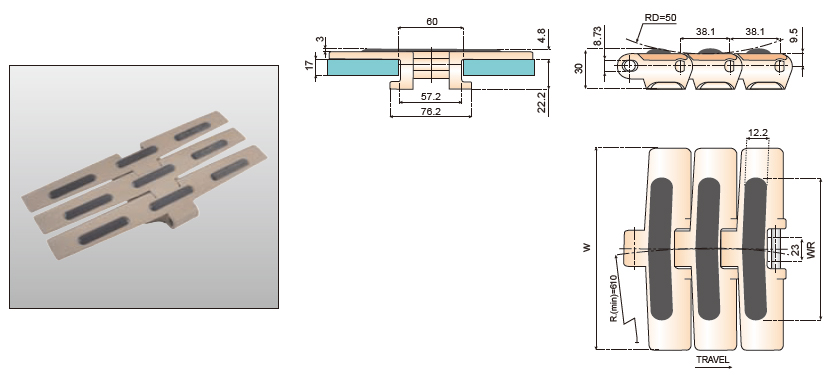

(4) 882TAB-G Sideflexing Plastic Flat Top Chains with Rubber Top
Product Specifications
| Chain No. | Width ( W ) | Width ( WR ) | ||
| mm | inch | mm | inch | |
| 882TAB – K600G | 152.4 | 6.00 | 130 | 5.12 |
| 882TAB – K750G | 190.5 | 7.50 | 168 | 6.62 |
| 882TAB – K1000G | 254 | 10.00 | 195 | 7.68 |
| 882TAB – K1200G | 304.8 | 12.00 | 245 | 9.65 |

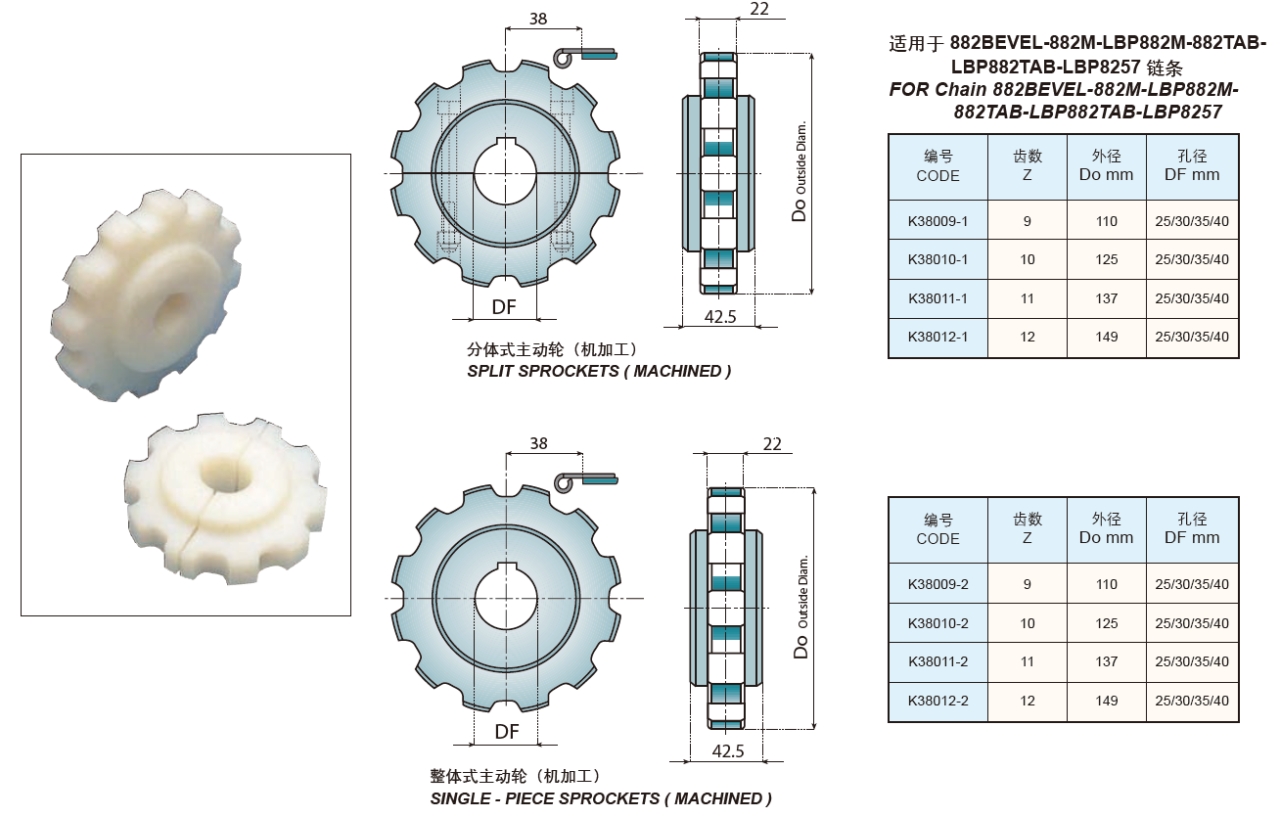

We Can Also Provide Matching sprockets and Idler Wheels.
A drive chain and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft. Using the right sprocket is just as important as choosing a suitable chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. We design our sprocketsto perform well under pressure and to last.
