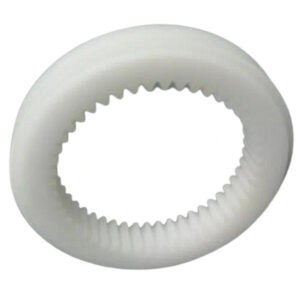

Plastic Internal Gear

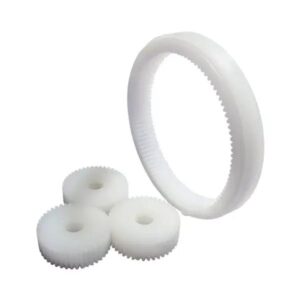

Plastic Internal Ring Gear
The structure of the plastic internal gear differs from the metal internal gear in several ways. The main difference is the internal gear seat, which is made of plastic material. This allows for a lower overall mass for the Plastic Internal Gear. Plastic pinions are not made of tooth-shaped transmission parts, so they are very simple and can be easily formed in the injection molding process.
The shaft of the plastic internal ring gear includes a stepped portion that engages a gear on its periphery. The stepped portion comprises two straight-edge sections and an inclined section. The rack moves along the channel as the gear turns, whereas the free end is free to move along the track.
Compared to metal gears, plastic internal gears are less expensive and do not require secondary finishing. Furthermore, due to the inherent properties of Plastic Gears, they can be made with greater precision. This represents a cost savings of fifty to ninety percent over their metal counterparts.
Details
Details| Plastic Internal Gear | |
| Dimension | Φ60mm |
| Module | M0.15-M2.0 |
| Material Type | POM, PA, PPA, PBT PEEK as customized |
| Meshing Grade | ISO6, JGMA 1, JIS 6, AGMA 13, DIN 6,Din5,AGMA12 |
| Application | Automotive, Military, Aircraft, Mechanical, industrial, Medical |
| Customized | ODM/OEM supported |
| Sample | Sample available |
| Modes of Packing | Vacuum-packed with Plastic Tray |
| Modes of Delivery | DHL UPS |
| Certificate | ISO 9001: 2008/TS16949 |

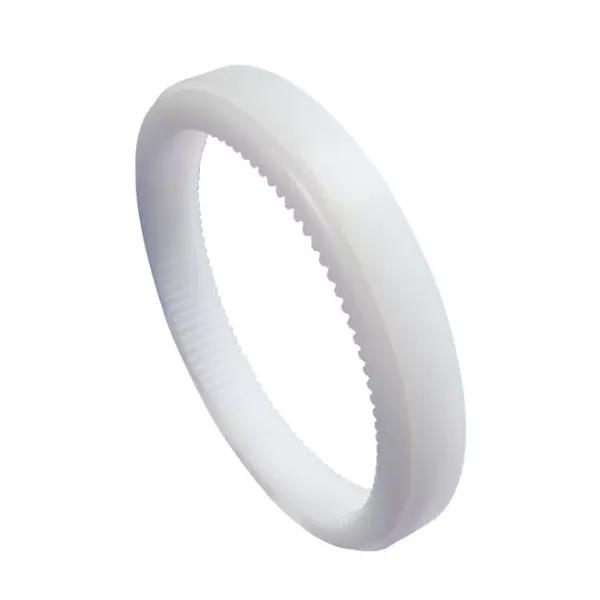

Ring Gear Module 1 Teeth 20 -140
 |
 |
- Pressure angle: 20 °
- Material: POM-C natural
- Mechanically manufactured toothing,
- excellent quality.
- Helix angle: 0 ° (straight flanks)
Part no
Number of teeth
b
A.
øD
OK
øC
øTK
Items:
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
HR1-20
20
5
35
20
18
2.8 (3x)
29
HR1-30
30
5
45
30
28
2.8 (3x)
39
HR1-40
40
5
55
40
38
2.8 (3x)
49
HR1-50
50
5
65
50
48
2.8 (3x)
59
HR1-60
60
5
75
60
58
2.8 (6x)
69
HR1-70
70
5
85
70
68
2.8 (6x)
79
HR1-80
80
5
95
80
78
2.8 (6x)
89
HR1-90
90
5
105
90
88
2.8 (6x)
99
HR1-100
100
5
115
100
98
2.8 (6x)
109
HR1-110
110
5
125
110
108
2.8 (6x)
119
HR1-120
120
5
135
120
118
2.8 (8x)
129
HR1-130
130
5
145
130
128
2.8 (8x)
139
HR1-140
140
5
155
140
138
2.8 (8x)
149
Other sizes are possible on request, as well as the production of plastic internal gear rings according to drawings.
Features
- Internal Gear provides a compact parallel shaft transmission drive with considerable speed reduction.
- Plastic Internal gears are often used in applications involving planetary gear drives and gear couplings. There are three major types of planetary gear mechanisms: planetary, solar, and star types. Depending on the type and the pattern of shafts as input and output, many variations of speed transmission ratios and rotational directions are produced.
- Provided highly precision plastic internal gear.
- Offers ODM & OEM services.
 |
 |
Where to Buy ?

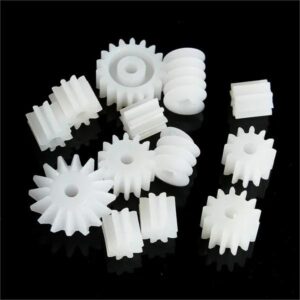

With over ten years of experience, We’re one of China’s leading manufacturers and suppliers of internal plastic gears. Our factory specializes in producing high-precision ring gear products. As a plastic gear supplier, we can provide customized services for plastic internal gear, and we also can provide other series plastic gear. Trust us and contact us now!
 |
 |
FAQ
1. Are you a manufacturer or a trading company?
We are a 3000-square-meter factory located in Hangzhou in Zhejiang Province, China.
2. How can I get a quote?
Detailed drawings (PDF/STEP/IGS/DWG…) with material, quantity, and process requirement information.
3. Can I get a quote without drawings?
We appreciate receiving your samples, pictures, or drafts with detailed dimensions for an accurate quotation.
4. Will my drawings be divulged if you benefit?
No, we pay much attention to protecting our customers’ privacy of drawings, and signing NDA are also acceptable.
5. Can you provide samples before mass production?
Sure, a sample fee is not free and we will return it when mass production is possible.
6. How about the lead time?
Generally, it takes 1-2 weeks for samples and 3-4 weeks for mass production.
7. How do you control the quality?
(1)Material inspection–Check the material surface and rough dimensions.
(2)Production first inspection–To ensure the critical dimension in mass production.
(3)Sampling inspection–Check the quality before sending it to the warehouse.
(4)Pre-shipment inspection–100% inspected by QC assistants before shipment.
8. What will you do if we receive poor-quality parts?
Please send us the pictures; our engineers will find the solutions and remake them for you asap.
