Plastic Roller Chain C2042 C2052 C2062H C2082H

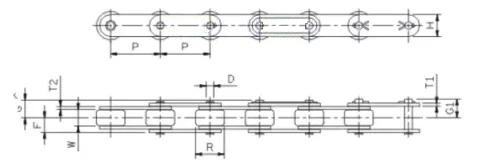

CHAIN NO. |
Pitch |
Width |
Roller |
Plate |
Pin |
Maximum
Allowable
Load
kgf
|
Approx Weight |
||||||
P |
W |
Dia |
Height |
Thickness |
Dia |
Lengths |
|||||||
inch |
mm |
mm |
R |
H | T1 | T2 | D | F | G | G1 | |||
C2042 | 1″ | 25.40 | 7.94 | 15.88 | 11.70 | 1.50 | 1.50 | 3.96 | 8.20 | 9.30 | 10.00 | 45 | 0.49 |
C2052 | 1-1/4″ | 31.75 | 9.53 | 19.05 | 14.60 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 70 | 0.80 |
C2062H | 1-1/2″ | 38.10 | 12.70 | 22.23 | 17.10 | 3.10 | 3.10 | 5.95 | 14.10 | 15.70 | 16.60 | 105 | 1.40 |
C2082H | 2″ | 50.80 | 15.88 | 28.58 | 23.00 | 3.90 | 3.90 | 7.94 | 17.90 | — | 20.80 | 180 | 2.26 |
