Plate Top Chain 1874TAB Sideflexing
1874TAB Sideflexing 19.05MM (3/4”) Pitch Plate Top Chains

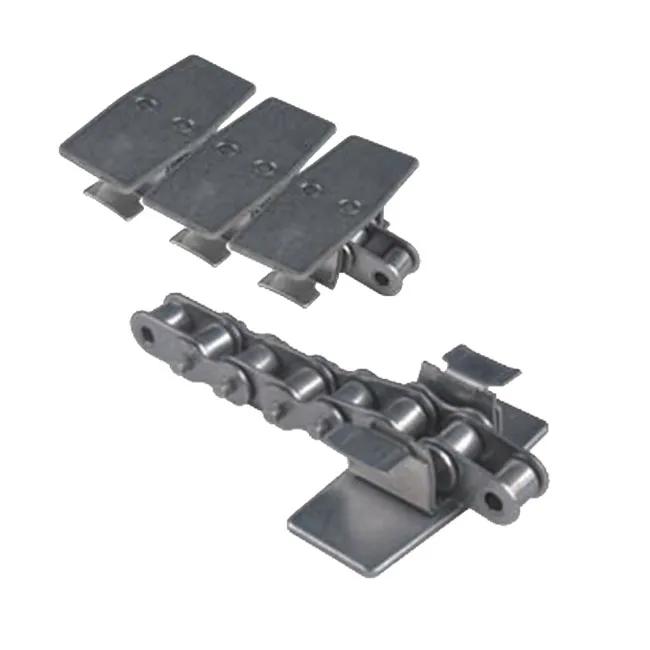

1874TAB Plate Top Chain Product Description
Plate-top chains(1874TAB Plate Top Chain) are a hybrid of steel roller chains and plastic plates – and an ingenious way of combining the advantages of both materials. Plate-top chains use specially adapted high-quality roller for tensile force transmission. The product load is borne by plastic flights that are custom-designed for the respective application, enabling the use of the dry running characteristics of a plastic-to-plastic pairing.
|
Chain No.
|
Width ( W )
|
Weight
|
Working load
|
||
|
mm
|
inch
|
kg/m
|
lbs/ft
|
N
|
|
|
STEEL TOP PLATE / STEEL BASE CHAIN
|
|||||
|
1874 TAB – K325
|
82.5
|
3.25
|
3.33
|
2.24
|
4500
|
|
1874 TAB – K450
|
114.3
|
4.50
|
4.00
|
2.69
|
4500
|
|
1874 TAB – K600
|
152.4
|
6.00
|
4.40
|
2.95
|
4500
|
|
1874 TAB – K750
|
190.5
|
7.50
|
4.80
|
3.22
|
4500
|
| STAINLESS STEEL TOP PLATE / STAINLESS STEEL BASE CHAIN | |||||
|
1874 TAB SS- K325
|
82.5
|
3.25
|
3.33
|
2.24
|
3400
|
|
1874 TAB SS – K450
|
114.3
|
4.50
|
4.00
|
2.69
|
3400
|
|
1874 TAB SS – K600
|
152.4
|
6.00
|
4.40
|
2.95
|
3400
|
|
1874 TAB SS – K750
|
190.5
|
7.50
|
4.80
|
3.22
|
3400
|
Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to the high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.
