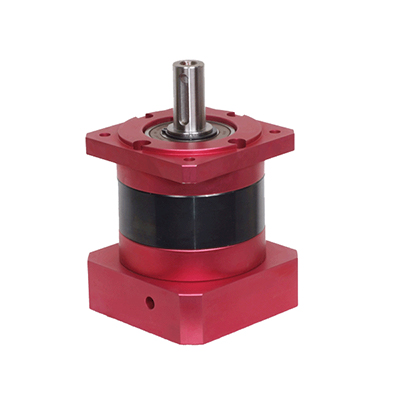

PLF Planetary Gearbox
PLF Planetary Gearbox
PLF Planetary gearboxes technical data:
| Type | PLF40 | PLF60 | PLF90 | PLF115 | PLF142 | Ratio | Stages | |
| Nominal output torqueT2N | Nm | 25 | 66 | 158 | 337 | 950 | 3 | 1 |
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 4 | |||
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 4 | |||
| 23 | 53 | 124 | 300 | 850 | 5 | |||
| 10 | 26 | 67 | 150 | 510 | 8 | |||
| – – | – – | – – | 150 | 510 | 10 | |||
| 25 | 66 | 158 | 337 | 950 | 9 | 2 | ||
| 25 | 66 | 158 | 337 | 950 | 12 | |||
| 25 | 66 | 158 | 337 | 950 | 15 | |||
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 16 | |||
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 20 | |||
| 23 | 53 | 124 | 300 | 850 | 25 | |||
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 32 | |||
| 23 | 53 | 124 | 300 | 850 | 40 | |||
| 10 | 26 | 67 | 150 | 510 | 64 | |||
| 25 | 66 | 158 | 337 | 950 | 60 | 3 | ||
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 80 | |||
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 100 | |||
| 25 | 66 | 158 | 337 | 950 | 120 | |||
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 160 | |||
| 23 | 53 | 124 | 300 | 850 | 200 | |||
| 27.5 | 71.5 | 172.5 | 360 | 1030 | 256 | |||
| 23 | 53 | 124 | 300 | 850 | 320 | |||
| 10 | 26 | 67 | 150 | 510 | 512 | |||
| Emergency stop | Nm | T2Not=2T2N | ||||||
Type PL40 PL60 PL90 PLF115 PLF142 stages Frmax.for10.000h N 185 280 490 1250 3500 Famax.for10.000h N 280 480 800 1900 5200 Efficiency with full load % 96 1 94 2 90 3 Average lifetime h 20000 Weight Kg 0.35 0.90 2.10 6.00 19.00 1 0.45 1.10 2.60 7.80 24.00 2 0.55 1.30 3.10 9.50 29.00 3
PLF Planetary Gearbox
| Type | PLF40 | PLF60 | PLF90 | PLF115 | PLF142 | Ratio | |
| Moment of inertia | kgcm2 | 0.031 | 0.135 | 0.77 | 2.63 | 12.14 | 3 |
| 0.022 | 0.093 | 0.52 | 1.79 | 7.78 | 4 | ||
| 0.019 | 0.078 | 0.45 | 1.53 | 6.07 | 5 | ||
| 0.017 | 0.065 | 0.39 | 1.32 | 4.63 | 8 | ||
| 0.03 | 0.131 | 0.74 | 2.62 | 12.15 | 9 | ||
| 0.029 | 0.127 | 0.72 | 2.56 | 12.37 | 12 | ||
| 0.023 | 0.077 | 0.71 | 2.53 | 12.35 | 15 | ||
| 0.022 | 0.088 | 0.5 | 1.75 | 7.47 | 16 | ||
| 0.019 | 0.075 | 0.44 | 1.5 | 6.65 | 20 | ||
| 0.019 | 0.075 | 0.44 | 1.49 | 5.81 | 25 | ||
| 0.017 | 0.064 | 0.39 | 1.3 | 6.36 | 32 | ||
| 0.016 | 0.064 | 0.39 | 1.63 | 5.28 | 40 | ||
| 0.016 | 0.064 | 0.39 | 1.3 | 4.5 | 64 | ||
| 0.029 | 0.076 | 0.51 | 2.57 | 7.5 | 60 | ||
| 0.019 | 0.075 | 0.5 | 1.5 | 7.5 | 80 | ||
| 0.019 | 0.075 | 0.44 | 1.49 | 7.4 | 100 | ||
| 0.029 | 0.064 | 0.7 | 2.5 | 7.3 | 120 | ||
| 0.016 | 0.064 | 0.39 | 1.3 | 6.5 | 160 | ||
| 0.016 | 0.064 | 0.39 | 1.3 | 6.2 | 200 | ||
| 0.016 | 0.064 | 0.39 | 1.3 | 5.7 | 256 | ||
| 0.016 | 0.064 | 0.39 | 1.3 | 5.4 | 320 | ||
| 0.016 | 0.064 | 0.39 | 1.3 | 5.2 | 512 |
Banklash arcmin(分) PLF40 PLF60 PLF90 PLF115 PLF142 stages precision <5 <3 <3 <3 <5 1 criterion <10 <8 <8 <8 <10 1 precision <8 <5 <5 <5 <8 2 criterion <12 <10 <10 <10 <12 2 precision <10 <8 <8 <8 <10 3 criterion <15 <12 <12 <12 <15 3
| PLF40 | PLF60 | PLF90 | PLF115 | PLF142 | ||
| Torsinal rigidity | Nm/arcmin | 0.7 | 1.8 | 4.4 | 9.2 | 26.7 |
| Noise | dB(A) | 55 | 58 | 60 | 65 | 70 |
| Max.input speed | min-1 | 10000 | 8000 | 6000 | 6000 | 6000 |
| Advised input speed | min-1 | 4500 | 4000 | 4000 | 3500 | 3000 |

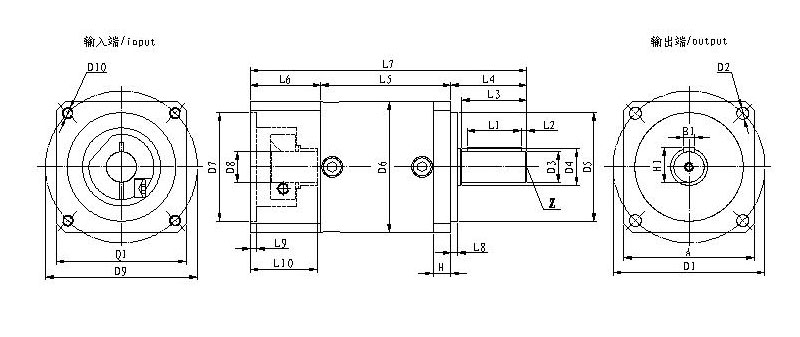

PLF Planetary gearboxes dimensions：
Type PLF40 PLF60 PLF90 PLF1151 PLF1422 stages 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 A Flange length 45 60 90 120 175 D1 Flange holes circle 50 70 100 130 185 D2 Mounting threadx depth 4?/font> φ3.5 φ5.5 φ6.5 φ8.5 φ11 D3 Output shaft deameter h6 10 14 20 25 40 D4 Shaft root 12 17 25 35 55 D5 Output centering h7 26 50 80 110 130 D6 Body diameter 40 60 80 115 160 D7 Input pinion bore H7 30 50 70 110 114.3 D8 Input pinion bore F7 8 14 19 22 35 D9 Hole circle 46 70 90 145 200 D10 Mounting threadx depth M4?0 M5?2 M6?5 M8?0 M12?5 Q1 Input flange □ 40 60 80 120 175 L1 Key length 15 25 30 40 65 L2 Distance from shaft end 4 2.5 3 5 7.5 L3 Shaft length from output 23 30 36 50 80 L4 Shaft length from output 26 35 40 55 87 L5 Body length 38 50.7 63.2 47 60.5 74 60 78.5 96 99.5 126.5 154 173.5 223 263.5 L6 Motor flange length 24.3 32 44 39 25 L7 Overall length 88.5 101 113.5 114 127.5 141 144 162.5 180 193.5 220.5 248 285.5 335 375.5 L8 Spigot depth 2 3 3 4 5 L9 Motor location depth 6 6.5 6.5 6.5 3.5 L10 Motor shaft length 25 30 40 55 79 B1 Key width 3 5 6 8 12 H1 Key height 11.2 16 22.5 28 43 H Flange length 6 8 10 14 15 Z Orient holes M3? M5?2 M6?6 M10?2 M12?5
*For longer motor shafts L6 applies: The measure L6 and L10 will be lengthen by the same amount as the motor shaft.
Hornwork 1）i=10 hour, A=□120，L5=96，L7=191；Hornwork 2）i=10 hour，L5=178，L7=290。
