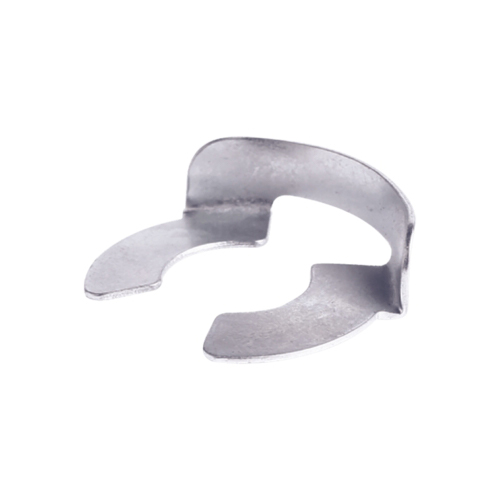

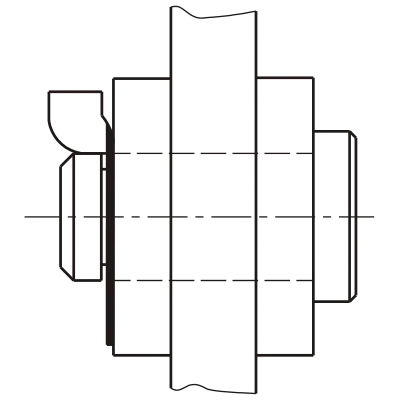

PM-K Retainers for Bolts
Surface treatment: Coated with rust-proof oil, zinc plating or nickel plating.

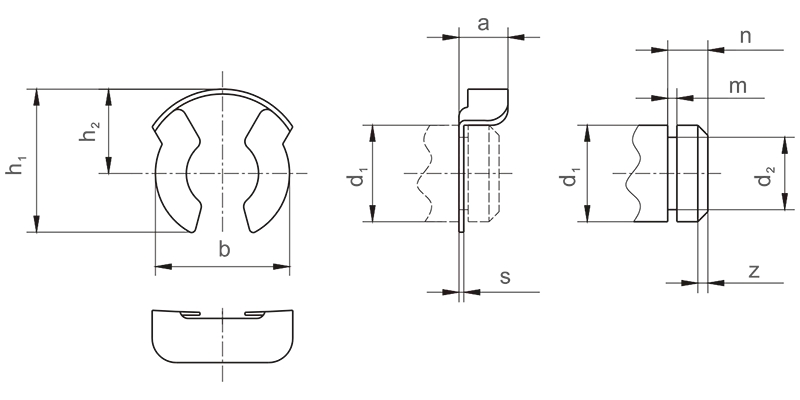

Part No. | Nom. Size | Retainer | Max.axial
thrust ca.N |
Weight | Bolts | ||||||||
d1 | ≈b | ≈h1 | ≈h2 | a | S | 100 pcs | d1
h11 |
d2
h11 |
m
+0.1 |
n | z | ||
PM-K3 | 3 | 4.3 | 5.0 | 3.0 | 2.0 | 0.4 | 1050 | 0.0049 | 3 | 2.3 | 0.64 | 1.5 | 0.50 |
PM-K4 | 4 | 6.5 | 7.0 | 4.3 | 2.7 | 0.4 | 1500 | 0.0109 | 4 | 3.2 | 0.64 | 2.0 | 0.50 |
PM-K5 | 5 | 7.5 | 8.7 | 5.2 | 2.8 | 0.5 | 3000 | 0.0195 | 5 | 4.0 | 0.74 | 2.5 | 0.50 |
PM-K6 | 6 | 10.4 | 11.5 | 6.8 | 3.5 | 0.5 | 4850 | 0.0332 | 6 | 5.0 | 0.74 | 3.0 | 0.75 |
PM-K8 | 8 | 11.5 | 12.1 | 7.2 | 4.1 | 0.5 | 5500 | 0.0408 | 8 | 6.0 | 0.94 | 3.5 | 1.00 |
PM-K10 | 10 | 15.6 | 16.3 | 9.5 | 5.9 | 0.6 | 9500 | 0.0899 | 10 | 8.0 | 1.05 | 4.5 | 1.00 |
PM-K12 | 12 | 16.7 | 18.0 | 10.5 | 6.1 | 0.6 | 10700 | 0.1102 | 12 | 9.0 | 1.15 | 5.0 | 1.25 |
PM-K14 | 14 | 19.0 | 20.0 | 11.5 | 6.5 | 0.7 | 12700 | 0.1578 | 14 | 10.0 | 1.25 | 5.5 | 1.50 |
PM-K16 | 16 | 22.7 | 23.5 | 13.8 | 7.8 | 0.8 | 14000 | 0.2282 | 16 | 12.0 | 1.35 | 6.0 | 1.50 |
PM-K20-25 | 24 | 34.5 | 34.0 | 20.0 | 9.0 | 1.0 | _ | 0.6171 | 20-25 | 16-18 | 1.80 | 8.0 | 1.50 |
