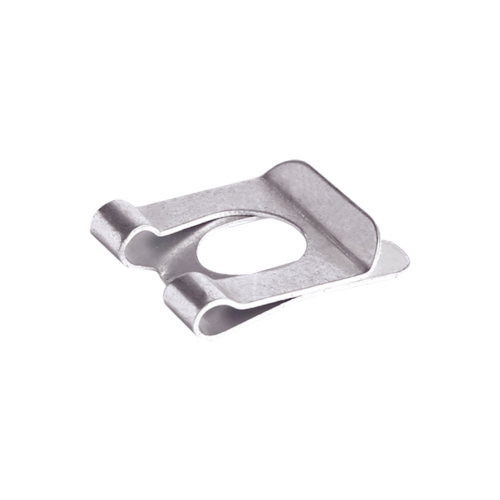

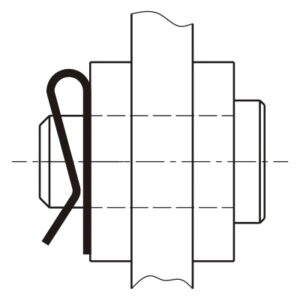

PM-S Retainers for Bolts
PM-S Retainers for Bolts
Material: Spring steel.
Surface treatment: Coated with rust-proof oil, zinc plating or nickel plating. |

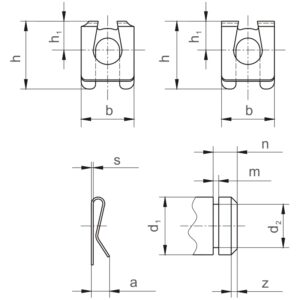

Part No. | Nom. Size | Retainer | Max.axial thrust ca.N | Weight | Bolts | ||||||||
d1 | b | h | h1 | a≈ | S | 100 pcs | d1
h11 |
d2
h11 |
m
+0.1 |
n | z | ||
PM-S4 | 4 | 7 | 8.5 | 4.0 | 2.3 | 0.3 | 1000 | 0.019 | 4 | 3.2 | 0.64 | 2.0 | 0.50 |
PM-S5 | 5 | 9 | 10.7 | 5.0 | 3.3 | 0.4 | 1300 | 0.034 | 5 | 4.0 | 0.74 | 2.5 | 0.50 |
PM-S6 | 6 | 11 | 14.1 | 6.0 | 3.8 | 0.4 | 1500 | 0.063 | 6 | 5.0 | 0.74 | 3.0 | 0.75 |
PM-S8 | 8 | 14 | 17.5 | 8.0 | 4.0 | 0.5 | 3600 | 0.109 | 8 | 6.0 | 0.94 | 3.5 | 1.00 |
PM-S10 | 10 | 18 | 22.1 | 10.0 | 5.0 | 0.5 | 6400 | 0.211 | 10 | 8.0 | 1.05 | 4.5 | 1.00 |
PM-S12 | 12 | 22 | 26.0 | 12.0 | 5.0 | 0.5 | 9600 | 0.280 | 12 | 9.0 | 1.15 | 5.0 | 1.25 |
PM-S14 | 14 | 25 | 30.0 | 13.5 | 6.0 | 0.6 | 11320 | 0.474 | 14 | 10.0 | 1.25 | 5.5 | 1.50 |
PM-S16 | 16 | 28 | 34.0 | 16.0 | 6.0 | 0.6 | 13500 | 0.563 | 16 | 12.0 | 1.35 | 6.0 | 1.50 |
