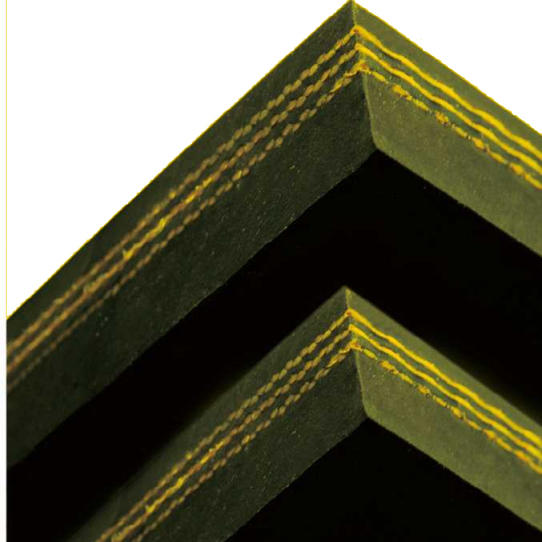

Polyester conveyor belt
Polyester conveyor belt
Characteristics
Common polyester conveyor belt is also named as EP conveyor belt, and has the features of warp low elongation and excellent weft trough formation property as its tensile body is canvas interwoven by warp polyester and weft polyamide, good water resistance, unchanged wet strength, no mildew, and lower safety factor as the initial modulus of polyester is high, and is suitable for conveying materials in medium and long distance and high transmission capacity at a high speed.
Specification and technical data of multi-ply EP conveyor belt
| Fabric
type |
Fabric structure | Fabric specs | Ply
thickness (mm/p) |
(N/mm) Strength series | (mm)
Cover Rubber thickness |
Width mm | Length
m |
||||||
| Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
| Polyester
(EP) |
Polyester
(EP) |
EP-80 | 0.60 | 160 | 240 | 320 | 400 | 480 | 2.0-8 | 0-4.5 | 400-1800 | ≤3OO | |
| EP-100 | 0.75 | 200 | 300 | 400 | 500 | 600 | |||||||
| EP-150 | 1.00 | 300 | 450 | 600 | 750 | 900 | 500-1800 | ||||||
| EP-200 | 1.10 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| (P) | EP-250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | ||||||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP-350 | 1.45 | 1025 | 1600 | 1750 | 2100 | 800-1800 | |||||||
| EP-400 | 1.55 | 2000 | 2000 | 2400 | 1000-1800 | ||||||||
| EP-500 | 1.70 | 2500 | 3000 | ||||||||||
Cover properties of the belts
| Cover grade | Tensile strength ≥ | Elongation at break ≥ | Abrasion | Change Rate of tensile strength and elongation after aging | |
| Mpa | kgf/cm2 | % | Cm3/161km | % | |
| Heavy(H) | 18 | 180 | 400 | 0.7 | -25~+25 |
| Medium(M) | 14 | 140 | 350 | 0.8 | -25~+25 |
| Light(L) | 10 | 100 | 300 | 1.0 | -30~+30 |
Adhesion and elongation of the belt
| Belt carcass | adhesive strength | Elongation | |||
| Between plies N/mm | Between rubber and carcass | Longitudinal elongation at break % ≥ | Longitudinal
elongation % ≤ |
||
| ≤1.5mm Rubber thickness ≤ 1.5mm | > 1.5mm Rubber thickness > 1.5mm | ||||
| Polyester canvas | ≥ 4.50 | ≥ 3.15 | ≥ 3.50 | 10 | 1.5 |
