606L2 606L3 Planetary Wheel Drives (606W..V)
Technical specification
Max.Output Torque (N.m) |
Ratio |
Recommend Hydraulic Motor |
Max. input speed |
Brake torque |
Brake work pressure |
|
Power-trans 606L |
||||||
18000 |
606L2 |
28.3 |
A2FE28·32 |
4000 |
430 |
20-50 |
606L3 |
63.2 |
-
- Input rotation opposite output rotation.
- Other ratio and other input type can be specially designed.

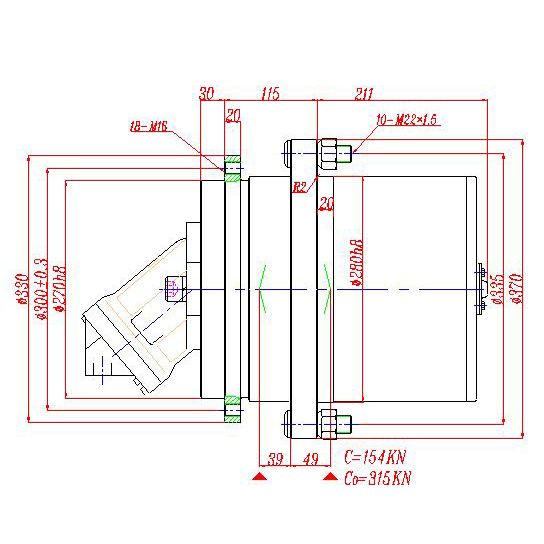

- When the gearbox is 2 stages, the dimension 211 should be changed to 159.
- If with manual disconnect application, please add mark at the end of product model.
