Power-trans 700L, 701L SLEW DRIVES
Power-trans 703AL, 705AL SLEW DRIVES

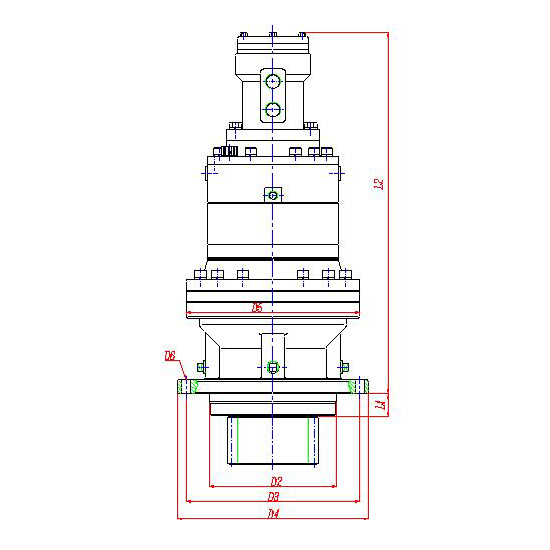

Dimension |
Type |
|||
|
Power-trans 700L |
Power-trans 701L |
Power-trans 703AL |
Power-trans 705AL |
D2 |
150 |
150 |
175 |
175 |
D3 |
195 |
195 |
245 |
245 |
D4 |
220 |
220 |
270 |
270 |
D5 |
185 |
185 |
245 |
245 |
D6 |
10-ф13 |
10-ф13 |
12-ф13 |
12-ф13 |
L1 |
31 |
31 |
32 |
32 |
L2 |
Size according to motor type |
|||
Pinion data |
Pinion data according to customer |
Technical specification
Type |
Max.Output Torque |
Ratio |
Recommend |
Max.input |
Brake |
Brake work |
|
Excavator |
Crane |
(i) |
(rpm) |
(N.m) |
(bar) |
||
Power-trans 700L |
1000 |
1200 |
3.4–32 |
SAE A adopt |
3500 |
50-400 |
20-50 |
Power-trans 701L |
1800 |
2400 |
3.4–32 |
SAE B adopt |
|||
Power-trans 703AL |
2500 |
3500 |
12.4—174.5 |
SAE C adopt |
|||
Power-trans 705AL |
5000 |
6500 |
12.4—174.5 |
A2FE 45·56·63 |
- Input – output rotate same direction.
- Other ratio and other input type can be specially designed.
