Power-trans 706AL, 707AL SLEW DRIVES
Power-trans 709AL, 711AL SLEW DRIVES

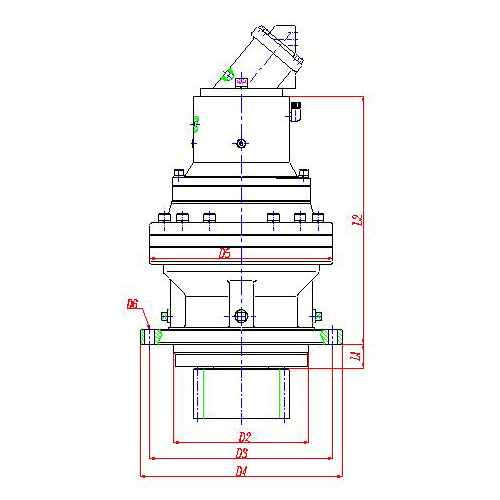

Dimension |
Type |
|||
Power-trans 706AL |
Power-trans 707AL |
Power-trans 709AL |
Power-trans 711AL |
|
D2 |
230 |
240 |
280 |
320 |
D3 |
335 |
335 |
385 |
500 |
D4 |
365 |
365 |
420 |
560 |
D5 |
300 |
345 |
345 |
425 |
D6 |
14-ф17 |
14-ф17 |
14-ф22 |
18-ф22 |
L1 |
55 |
60 |
60 |
70 |
L2 |
Size according to motor type |
|||
Pinion data |
Pinion data according to customer |
Technical specification
Type |
Max.Output Torque |
Ratio |
Recommend |
Max. input |
Brake |
Brake work |
|
Excavator |
Crane |
(i) |
(rpm) |
(N.m) |
(bar) |
||
Power-trans 706AL |
7700 |
12000 |
13.5—142.5 |
SAE A·B·C·D·E adopt |
3500 |
50-1000 |
20-50 |
Power-trans 707AL |
10500 |
165000 |
12.6—257.7 |
||||
Power-trans 709AL |
16000 |
26000 |
12.6—257.7 |
||||
Power-trans 711AL |
32000 |
45000 |
14.0—223.0 |
2500 |
400-3200 |
Input – output rotate same direction.
Other ratio and other input type can be specially designed.
