Power-trans 706BL4, 707AL4 Yaw and Pitch drive
Power-trans 709AL4, 711BL4 Yaw and Pitch drive

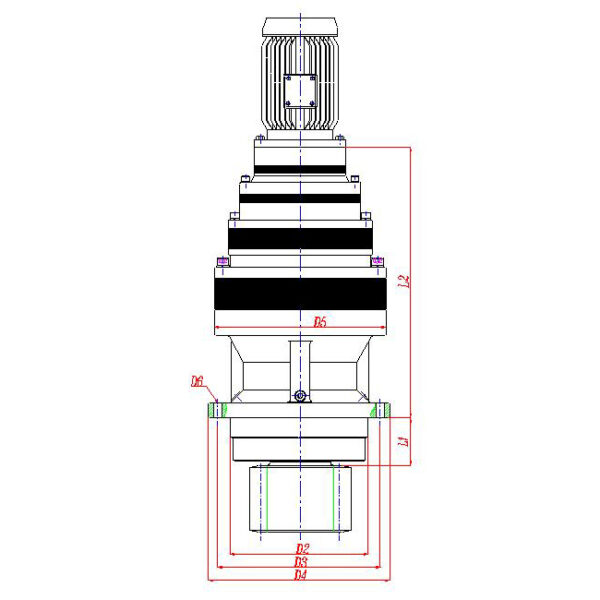

Dimension |
Type |
|||
|
Power-trans 706BL4 |
Power-trans 707AL4 |
Power-trans 709AL4 |
Power-trans 711BL4 |
D2 |
200 |
240 |
280 |
400 |
D3 |
250 |
335 |
385 |
445 |
D4 |
280 |
365 |
420 |
490 |
D5 |
292 |
345 |
345 |
428 |
D6 |
12-ф17 |
14-ф17 |
14-ф22 |
24-ф22 |
L1 |
40 |
60 |
60 |
110 |
L2 |
Size according to motor type |
|||
Pinion data |
Pinion data according to customer |
Technical specification
Type |
Nominal |
Peak Static |
Ratio |
(N.m) |
(N.m) |
(i) |
|
Power-trans 706BL4 |
8000 |
15000 |
203–2045 |
Power-trans 707AL4 |
12000 |
25000 |
278–1856 |
Power-trans 709AL4 |
18000 |
30000 |
278–1856 |
Power-trans 711BL4 |
35000 |
80000 |
256–1606 |
- Input – output rotate same direction.
- Other ratio can be specially designed.
