Power-trans 711L SLEW DRIVES
Power-trans 713L3, 715L3 SLEW DRIVES

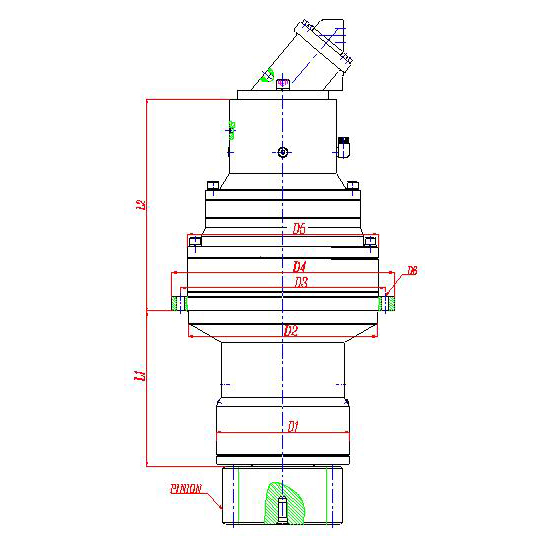

Dimension |
Type |
||
|
Power-trans 711L |
Power-trans 713L3 |
Power-trans 715L3 |
D1 |
300 |
340 |
370 |
D2 |
425 |
400 |
470 |
D3 |
460 |
510 |
600 |
D4 |
500 |
560 |
640 |
D5 |
428 |
445 |
542 |
D6 |
12-ф22 |
24-ф22 |
24-ф22 |
L1 |
345 |
420 |
465 |
L2 |
Size according to motor type |
||
Pinion data |
Pinion data according to customer |
Technical specification
Type |
Max.Output Torque |
Ratio |
Recommend |
Max. input |
Brake |
Brake work |
|
Excavator |
Crane |
(i) |
(rpm) |
(N.m) |
(bar) |
||
Power-trans 711L |
32000 |
45000 |
14.0—223.0 |
A2FE 80·90·107·125 |
2500 |
400-3200 |
20-50 |
Power-trans 713L3 |
40000 |
55000 |
50.3—276.1 |
A2FE 160·180 |
3500 |
400-1000 |
|
Power-trans 715L3 |
70000 |
80000 |
53.8—241.9 |
A2FM 250·355 |
2500 |
850-3200 |
- Input – output rotate same direction.
- Other ratio and other input type can be specially designed.
