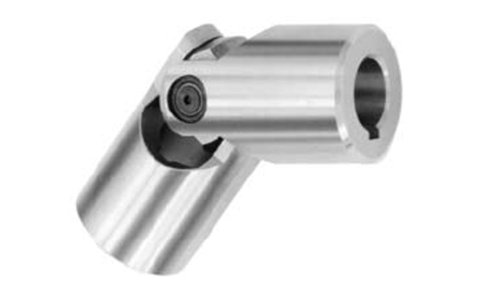

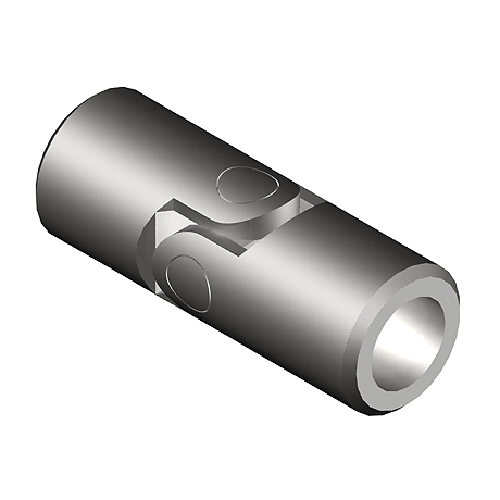

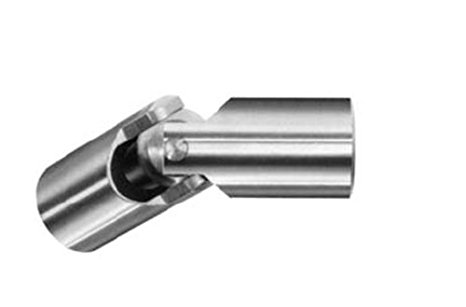

PR single universal joints

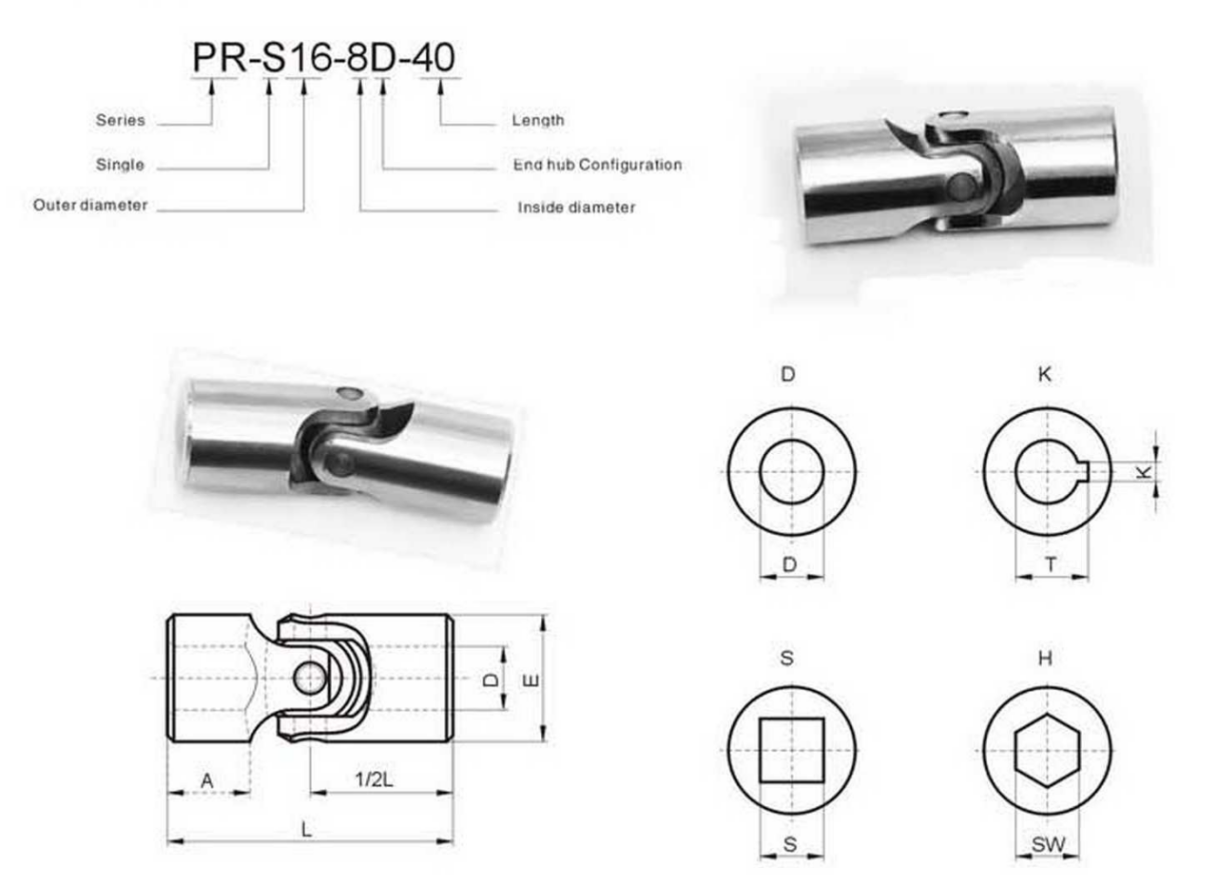

Dimensional data
china manufacturer of Universal joints, Specialist in:Universal joints, china Universal joints, coupling Universal joints, single Universal joints, double Universal joints.
Part No.\Size | D(H7) | E | L | A | 1/2L | K
(JS9) |
T | S
(H8) |
SW
(H8) |
PR-S16 | 8 | 16 | 40 | 11 | 20 | 2 | 9 | 8 | 8 |
PR-S20 | 10 | 20 | 45 | 11.5 | 22.5 | 3 | 11.4 | 10 | 10 |
PR-S23 | 12 | 23 | 50 | 14 | 25 | 4 | 13.8 | 12 | 12 |
PR-S26 | 14 | 26 | 56 | 15 | 28 | 5 | 16.3 | 14 | 14 |
PR-S30 | 16 | 30 | 65 | 18 | 32.5 | 5 | 183 | 16 | 16 |
PR-S35 | 20 | 35 | 78 | 21.5 | 39 | 6 | 22.8 | 20 | 20 |
PR-S40 | 22 | 40 | 95 | 25.5 | 47.5 | 6 | 24.8 | 22 | 22 |
PR-S45 | 25 | 45 | 108 | 31 | 54 | 8 | 28.3 | 25 | 25 |
PR-S50 | 30 | 50 | 122 | 35 | 61 | 8 | 33.3 | 30 | 30 |
