PTO Generators Gearboxes – Replacement of Comer Code L-25A

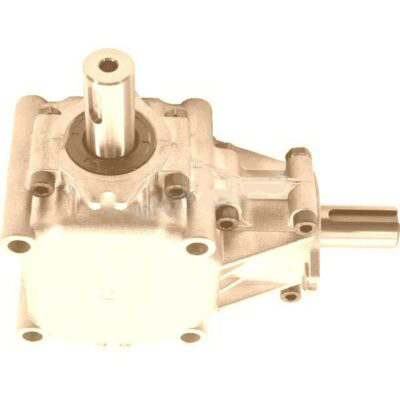

PTO Generators Gearboxes Model: T-L25A
- Aluminium casing
- input 1 inch rounf with key path + transverse hole for lock
- output fan 1 inch diameter
- lateral output at 1.5:1 (speed reduction) 1 inch x 15 spline
- Can also replace 9.124.871.00 or 9.124.871.10 or 9.124.380.00 (older model but exactly the same size)
- Sold and sent without oil ( capacity of approximately 0.35L of SAE90)
Description |
Comer gearboxes cpl. L-25A 1:1 (PTO Generators Gearboxes)
|
---|---|
Application |
|
Consists of |
|
Technical information |
|
Long description |
|
Max. input power |
11 kW
|
Max. output torque |
189 nm
|
Contains oil |
No
|
Max. oil capacity |
0.35 l
|
Max. oil change interval |
500 h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Aluminium
|
Weight |
4.1 kg
|
Gear arrangement |
1 – 2
|
Ratio |
1 : 1
|
Input shaft |
Z
|
Shaft X |
25 (B)
|
Shaft Z |
1 3/8″ (6) (C)
|
