Pull-behind Mower Gearbox (Trailing Mower Gearbox) GC281 Replacement of Comer T-279D
The T-279D gearbox is a pull-behind mower gearbox, also known as a trailing mower gearbox. It is a component working in various types of agricultural and landscaping equipment, specifically designed for powering rotary cutters or mowers that are towed behind a tractor or other vehicles.
The primary function of a pull-behind mower gearbox T-279D is to transfer power from the tractor’s power take-off (PTO) to the blades or cutting mechanism of the mower. This allows the mower to cut grass, weeds, and other vegetation efficiently in large areas or rough terrains.
The trailing mower gearbox T-279D has a specific gear ratio that determines the speed and cutting performance of the mower. Different gear ratios are available to suit different cutting needs and ground conditions. The gearbox is built to withstand the demanding conditions of outdoor use. It is constructing with high-quality materials and designing to provide long-lasting performance even in rugged terrains.

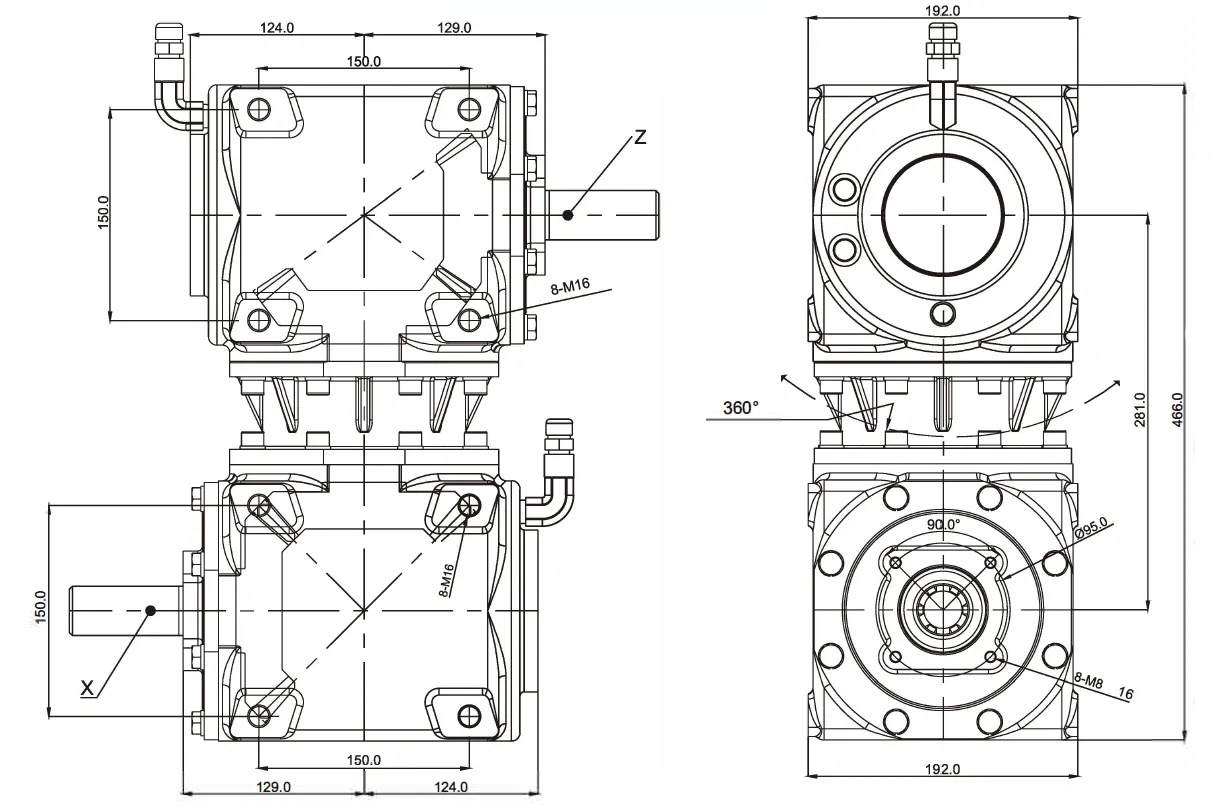

Dimensions of Trailing Mower Gearbox Replacement of Comer T-279D

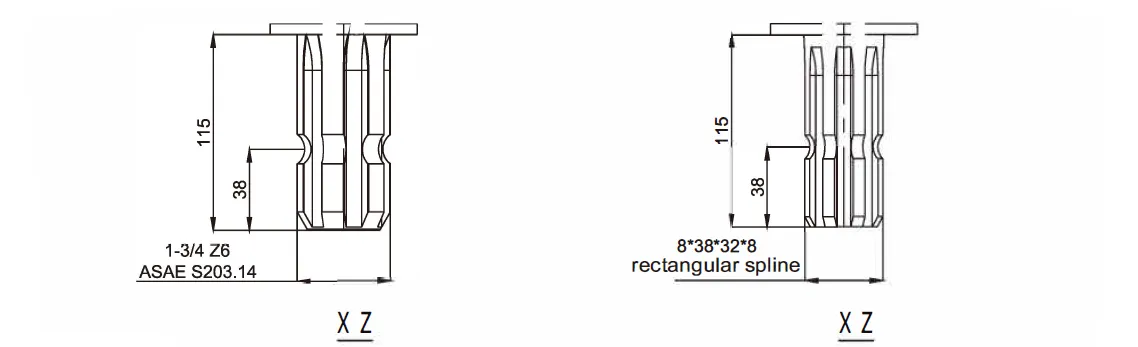

Trailing Mower Gearbox Replacement of Comer T-279D Shaft Dimensions
Trailing Mower Gearbox Replacement of Comer T-279D Technical Data
i | Suitable | Rpm input | Rpm output | KW(Nom) | Output torque | Toothing | ||
r/min | r/min | hp | N.m | |||||
Speed increase | 1: 1 | Lawn mower, etc | 540 | 540 | 85 | 1400 | Gleason Helical Teeth |
|
Remark: If you have any special require feel free let me know, we also accept custom. |

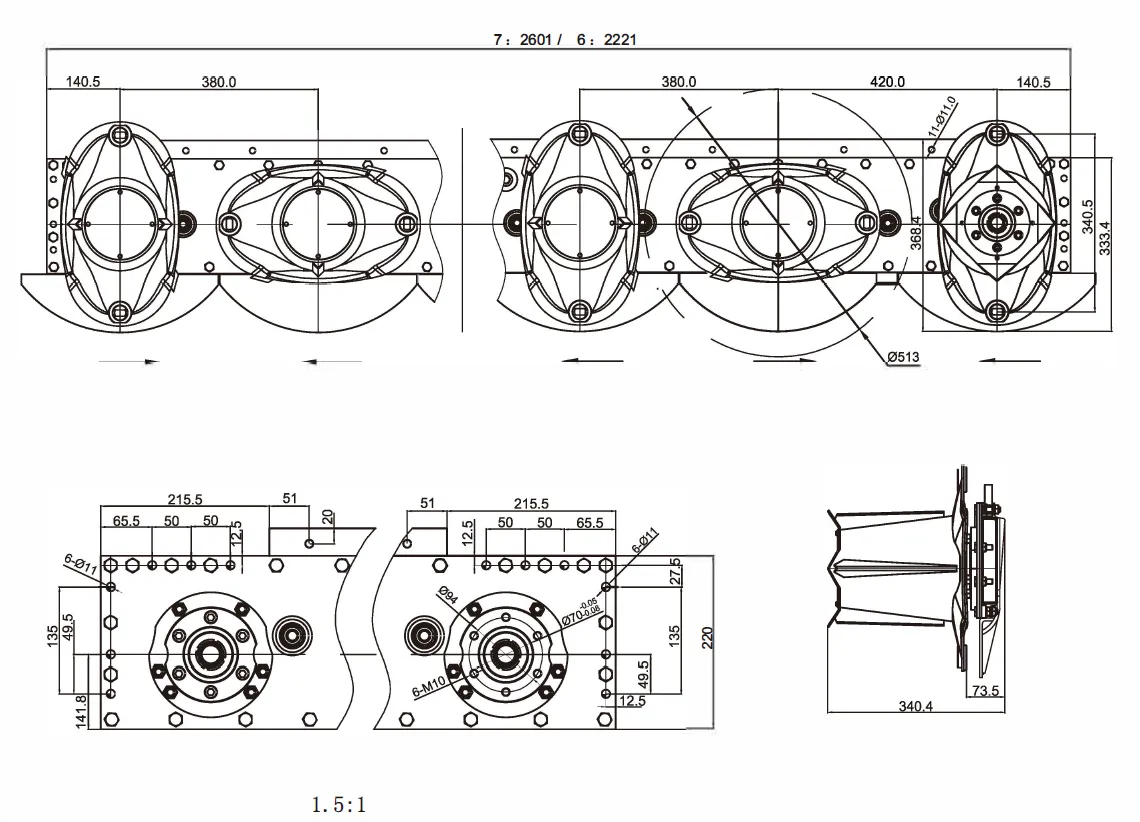

Pull-behind Mower Cutter Bar (Trailing Mower Cutter Bar) GT Dimensions
Pull-behind Mower Cutter Bar (Trailing Mower Cutter Bar) GTTechnical Data
Model number | GT06 | GT07 |
MOP (kw/hp) | 52/70 | 66/90 |
Work breadth (m) | 2.5 | 3.0 |
cutter number (n) | 6 | 7 |
Number of blades (n) | 12 | 14 |
Rpm input (r/min) | 3000 | |
Rpm output (r/min) | 3000 | |
Remark: If you have any special require feel free let me know, we also accept custom. |
Advantages of Pull-behind Mower Gearbox Replacement of Comer T-279D
The T-279D pull-behind mower gearbox offers several advantages for users in the agricultural and landscaping industries. Some key advantages of using the T-279D lawn mower gearbox include:
1. Durability: The T-279D gearbox is built to withstand the demanding conditions of outdoor use. It is constructed with high-quality materials, ensuring long-lasting performance even in rugged terrains. This durability reduces the need for frequent repairs or replacements, resulting in cost savings for the user.
2. Efficient Power Transfer: The lawn mower gearbox efficiently transfers power from the tractor’s power take-off (PTO) to the mower blades or cutting mechanism. This efficient power transfer ensures consistent and reliable operation, allowing for efficient grass and vegetation cutting.
3. Versatility: Designed to be compatible with various types of rotary cutters and mowers. This versatility allows users to select the appropriate cutting equipment for their specific needs while still utilizing the same gearbox. It offers flexibility and the ability to adapt to different cutting requirements.
4. Smooth Operation: Dngineered to provide smooth operation, minimizing vibrations and reducing wear on the equipment. This smooth operation translates to improved cutting performance and a more comfortable user experience.
5. Ease of Maintenance: Designed for easy maintenance and serviceability. It typically includes features such as oil fill and drain plugs, making oil changes and lubrication straightforward tasks. This ease of maintenance ensures that the gearbox remains in optimal condition, prolonging its lifespan and reducing downtime.
Trailing Mower Gearbox Replacement of Comer T-279D Applications in Agriculture
The T-279D trailing mower gearbox finds various applications in the field of agriculture. Some of the key applications of this gearbox include:
(1) Pasture Mowing: One of the primary uses of the T-279D gearbox is in mowing pastures and grasslands. It is commonly used to tow rotary cutters or mowers behind a tractor to efficiently cut and maintain large areas of grass. The gearbox’s durability and efficient power transfer make it suitable for tackling the demanding conditions of pasture mowing.
(2) Field Maintenance: The T-279D agricultural gearbox is also working in agricultural field maintenance. It can be employed for cutting weeds and undergrowth in crop fields, orchards, or vineyards. The gearbox’s versatility allows it to be paired with different cutting attachments, enabling farmers to adapt to the specific requirements of their fields.
(3) Roadside Mowing: Many rural areas require regular roadside maintenance to ensure clear visibility and safe driving conditions. The T-279D lawn mower gearbox is commonly working in tow-behind mowers for roadside mowing applications. It efficiently cuts grass, shrubs, and other vegetation along highways, rural roads, and ditches.
(4) Land Clearing: When agricultural land needs to be cleared of dense vegetation or overgrown areas, the trailing mower gearbox T-279D can be utilized for this purpose. It is often paired with heavy-duty rotary cutters or brush mowers to clear land efficiently, preparing it for cultivation or other agricultural activities.
(5) Large Grounds Maintenance: The lawn mower gearbox T-279D is suitable for maintaining large grounds such as parks, sports fields, golf courses, and recreational areas. It enables the towing of wide cutting decks or multiple rotary cutters, allowing for efficient and uniform grass cutting in these expansive areas.
Maintainance of Trailing Mower Gearbox Replacement of Comer T-279D
Proper maintenance of the replacement Comer T-279D gearbox is essential to ensure its optimal performance and longevity. Here are some maintenance tips for the T-279D trailing mower gearbox:
1. Lubrication: Regular lubrication is crucial for the smooth operation of the gearbox. Follow the manufacturer’s recommendations regarding the type of lubricant to use and the recommended intervals for oil changes. Ensure that the gearbox is properly filled with the appropriate lubricant to the recommended level.
2. Inspections: Perform regular visual inspections of the gearbox to identify any signs of damage, leaks, or wear. Check for loose bolts, damaged seals, or any other abnormalities. Address any issues promptly to prevent further damage or potential failure.
3. Cleaning: Keep the gearbox clean and free from debris, dirt, and grass clippings. Regularly clean the exterior of the gearbox and the surrounding area to prevent the accumulation of contaminants that could affect its performance.
4. Safety Precautions: When performing maintenance tasks on the trailing mower gearbox, always follow proper safety precautions. This includes disconnecting the power source, such as the tractor’s PTO, before working on the gearbox. Use appropriate safety equipment, such as gloves and eye protection, to protect yourself during maintenance procedures.
We Also Offer Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.
Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
Why Choose Our Fertilizer Seeder Gearbox?
Our company is a professional reducer high-tech enterprise integrating scientific research, production and sales, a high-tech small and medium-sized enterprise in Zhejiang Province, a member of Hangzhou R&D center, and a specialized and special new small and medium-sized enterprise in Zhejiang Province. We have a professional R&D team and technical staff specializing in the production of various gearboxes, gearbox assemblies, and components. The products include various series of helical gear reducers, agricultural machinery gearboxes, industrial gearboxes, etc. A number of technical patents and products are pioneering in China. We strictly follows the quality management system to manufacture high-quality products. Highly appreciated by domestic and foreign customers. Founded in 1992, We have rich production experience, perfect organizational structure, and complete R&D and design capabilities. It also provides technical support and design and development cases for customers in various industries.
