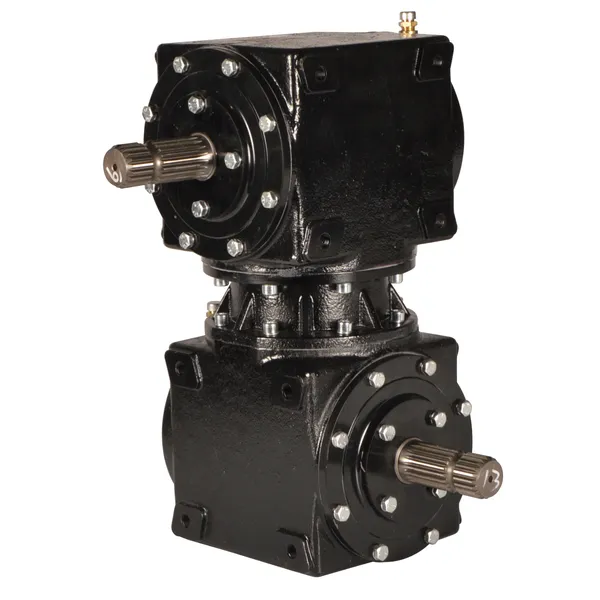

Pull-behind Mower Gearbox (Trailing Mower Gearbox) GC325
The pull-behind mower gearbox (trailing mower gearbox) GC325 is a lawn mower gearbox, designed for use with various types of mowers and agricultural equipment. Designed to provide power transmission and control for cutting blades or other attachments mounted on the rear of a tractor or other power unit. Built to withstand the rigorous demands of heavy-duty mowing applications and offers reliable performance and durability. It is commonly working in larger-scale mowing operations, such as maintaining parks, sports fields, golf courses, or large estates.
The gearbox is responsible for transferring power from the tractor’s power take-off (PTO) to the cutting blades or other attachments. It ensures efficient power transfer while maintaining the required speed and torque for effective cutting. The gearbox is equipped with a specific gear ratio that determines the rotational speed and torque output. The gear ratio is optimized to match the requirements of different cutting conditions and to provide the desired cutting performance.

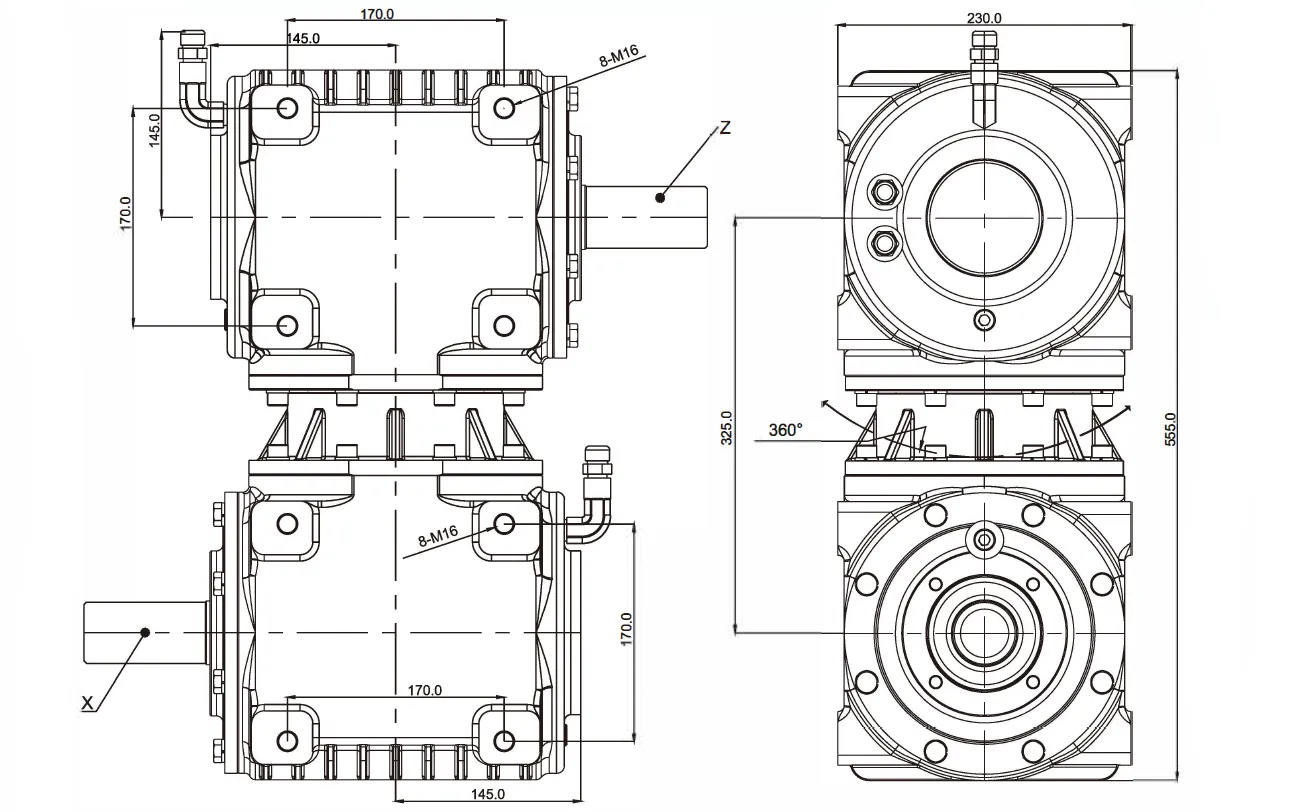

Dimensions of Trailing Mower Gearbox GC325

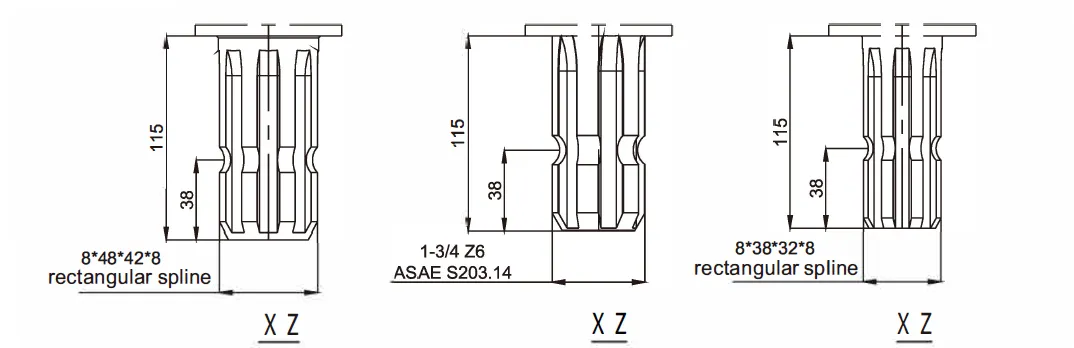

Trailing Mower Gearbox GC325 Shaft Dimensions
Trailing Mower Gearbox GC325 Technical Data
i | Suitable | Rpm input | Rpm output | KW(Nom) | Output torque | Toothing | ||
r/min | r/min | hp | N.m | |||||
Speed increase | 1: 1 | Lawn Mower, etc | 540 | 540 | 160 | 1400 | Gleason Helical Teeth |
|
Remark: If you have any special require feel free let me know, we also accept custom. |

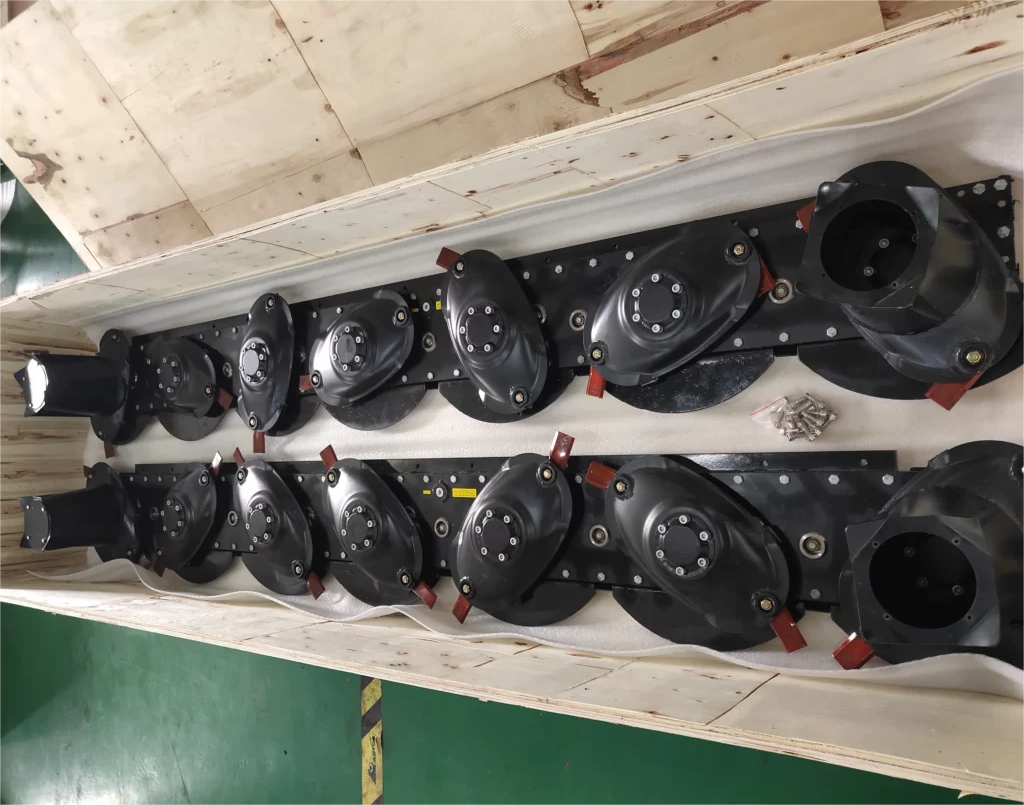

Pull-behind Mower Cutter Bar (Trailing Mower Cutter Bar) GCYB Dimensions
Pull-behind Mower Cutter Bar (Trailing Mower Cutter Bar) GCYB Technical Data
Model number | GCYB06 | GCYB07 |
MOP (kw/hp) | 5加0 | 66/90 |
Work breadth (m) | 2.5 | 3.0 |
cutter number (n) | 6 | 7 |
Number of blades (n) | 12 | 14 |
Rpm input (r/min) | 3000 | |
Rpm output (r/min) | 3000 | |
Remark: If you have any special require feel free let me know, we also accept custom. |

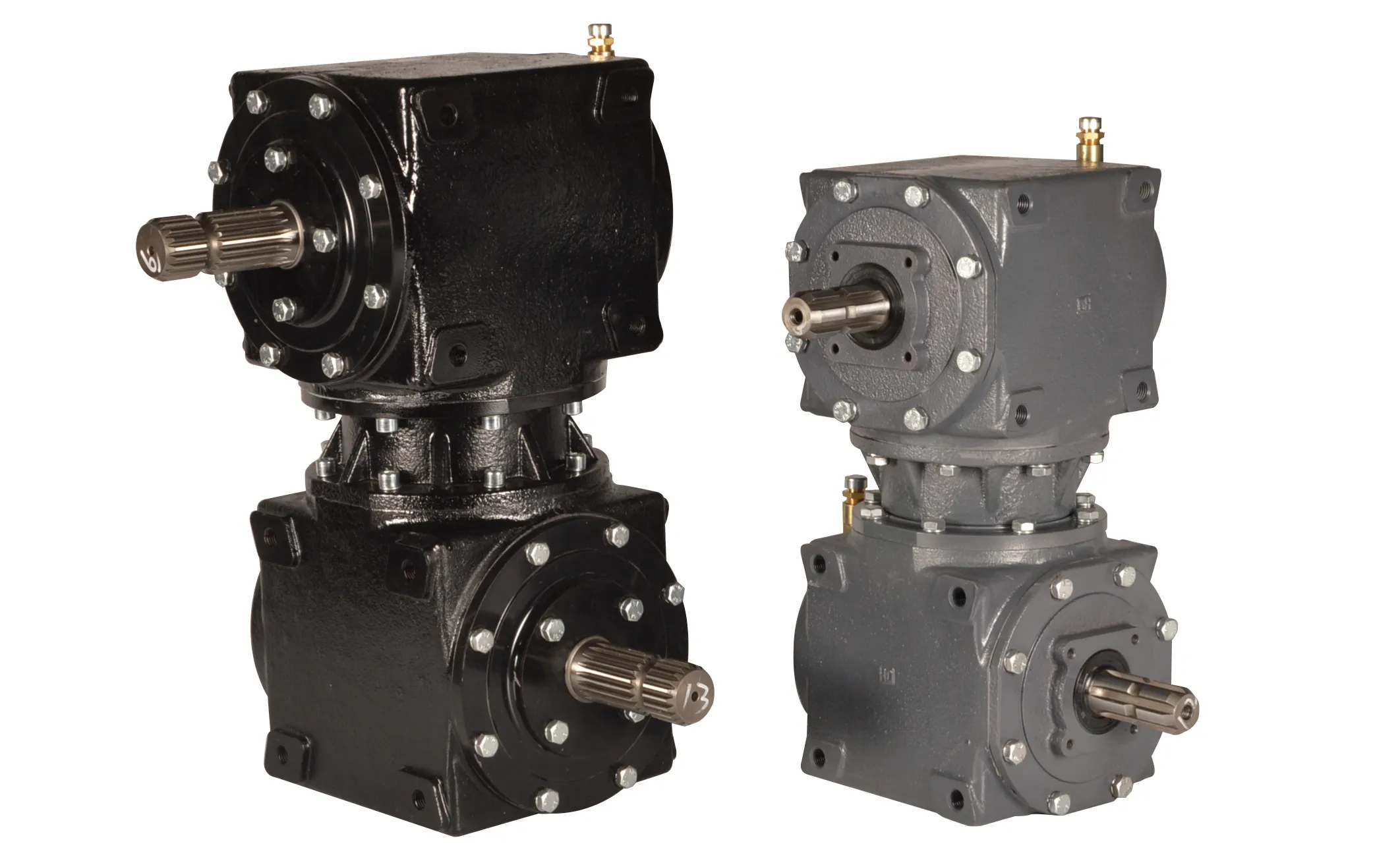

Features of Pull-behind Mower Gearbox GC325 for Lawn Mower
The GC325 pull-behind mower gearbox is designed for use with lawn mowers and offers several features that enhance its performance and functionality. Here are some of the key features of the GC325 specifically tailored for lawn mower applications:
1. Power Transmission: The gearbox efficiently transfers power from the power take-off (PTO) of the lawn tractor to the cutting blades. This ensures that the blades receive sufficient power for effective cutting and mulching of grass.
2. Cutting Height Adjustment: The GC325 lawn mower gearbox often includes a cutting height adjustment feature. This allows you to raise or lower the cutting blades to achieve the desired grass height. It provides flexibility to adapt to different grass types and mowing preferences.
3. Gear Ratio: Designed with a specific gear ratio optimized for lawn mowing applications. This gear ratio allows the blades to rotate at an appropriate speed to achieve efficient cutting while maintaining the necessary torque for tough grass conditions.
4. Durability and Strength: Constructed using durable materials to withstand the demands of lawn mowing. It can handle the vibrations and impacts associated with mowing, ensuring long-lasting performance.
5. Safety Features: The GC325 gearbox may include safety mechanisms such as a shear pin or a slip clutch. These features protect the gearbox and the mower from damage in case of sudden impacts or overload situations. They also make it easier to repair or replace damaged components.
6. Compatibility: Designed to be compatible with a variety of lawn mowers and can be easily attached to the rear of the lawn tractor. However, it’s important to ensure compatibility with your specific mower model before making a purchase.

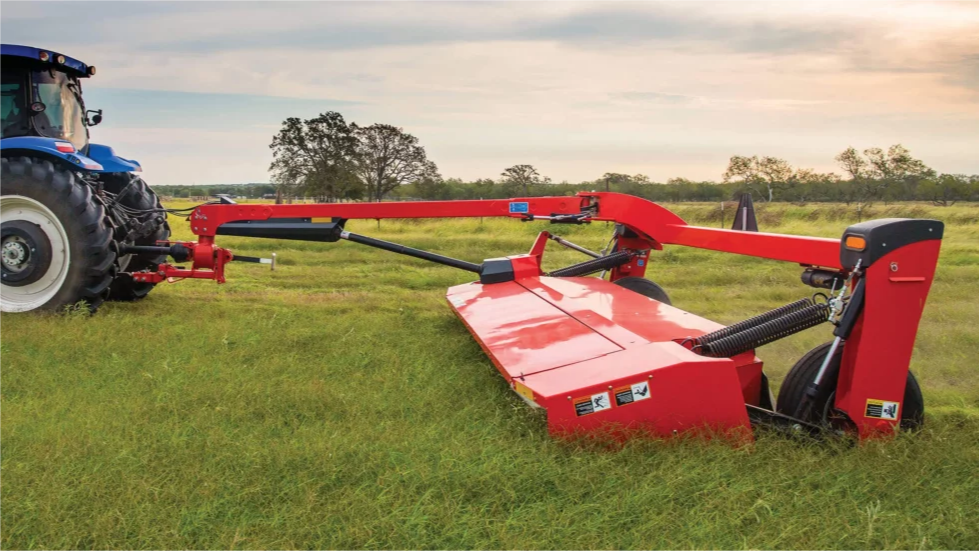

Trailing Mower Gearbox GC325 Common Applications
The Trailing Mower Gearbox GC325 is specifically designed for use in various agricultural applications, particularly in trailing or pull-behind mowers. Its robust design and efficient power transmission make it suitable for a range of tasks in the agricultural sector. Here are some of the primary applications:
1. Large Field Mowing: The lawn mower gearbox GC325 is ideal for mowing extensive agricultural fields. It’s designed to handle the demands of large-scale mowing, providing consistent power for uniform cutting across vast areas.
2. Pasture Management: In managing pastures for livestock, this gearbox helps power mowers that are essential for maintaining healthy grassland, ensuring optimal conditions for grazing.
3. Haymaking: The gearbox is working in mowers for hay production. Its efficient operation is crucial for cutting grass that will be dried and stored as hay for livestock feed.
4. Crop Residue Management: After harvesting crops like corn or wheat, the GC325 agricultural gearbox can be used in mowers to chop and distribute crop residues over the field, aiding in soil health management.
5. Weed Control: For controlling weed growth in between crop rows or in fallow fields, the gearbox supports mowers in effectively cutting down unwanted vegetation.
6. Orchard and Vineyard Maintenance: Used in mowers for maintaining the undergrowth in orchards and vineyards, helping to control weeds and maintain clean growing conditions.
7. Roadside and Public Land Maintenance: Employed in mowers used for maintaining roadsides, public lands, and buffer zones adjacent to agricultural lands.
Trailing Mower Gearbox GC325 Common Troubleshooting
Designed to provide reliable performance, occasional issues or malfunctions may arise. Here are some common troubleshooting steps for addressing potential problems with the GC325 gearbox:
1. Gearbox Noise or Vibration:
- Ensure that the gearbox is securely and properly mounted to the mower or tractor. Check for loose bolts or mounting brackets and tighten them if necessary.
- Inspect the cutting blades or attachments for any damage, such as bent blades or excessive wear. Replace any damaged components that may be causing imbalance or vibration.
- Check the gearbox’s lubrication level and quality. Insufficient or degraded lubrication can lead to increased noise or vibration. Follow the manufacturer’s guidelines to refill or replace the lubricant as needed.
2. Loss of Power or Cutting Performance:
- Verify that the tractor’s power take-off (PTO) is engaging correctly and supplying power to the gearbox. Check the PTO connection and ensure it is secure and properly aligned.
- Examine the gearbox’s input and output shafts for any signs of damage or wear. Damaged shafts can result in power loss or reduced cutting performance. Replace any worn or damaged shafts as necessary.
- Inspect the gearbox’s gears for wear or damage. Worn gears can result in inefficient power transmission. If necessary, consult the manufacturer or a professional for gear replacement or repair.
3. Gearbox Overheating:
- Ensure that the gearbox is adequately lubricate. Insufficient lubrication can cause excessive friction and overheating. Check the lubrication level and quality, and refill or replace the lubricant as recommended by the manufacturer.
- Verify that the gearbox is not overload. Excessive load on the cutting blades or attachments can lead to overheating. Reduce the load or adjust the cutting height to alleviate strain on the gearbox.
- Inspect the gearbox’s cooling fins or vents. Clean any debris or obstructions that may be blocking airflow and contributing to overheating.
4. Gearbox Leaks:
- Check for any oil or lubricant leaks around the gearbox housing. Leaks can indicate worn seals or damaged gaskets. Replace any faulty seals or gaskets to prevent further leakage.
- Ensure that the gearbox’s drain plug and fill plug are tightening securely. Loose plugs can result in oil leakage. Tighten the plugs as needed, but be cautious not to overtighten.
We Also Offer Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.
Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
