R PRECISION RIGHT ANGLE PLANETARY GEARBOX

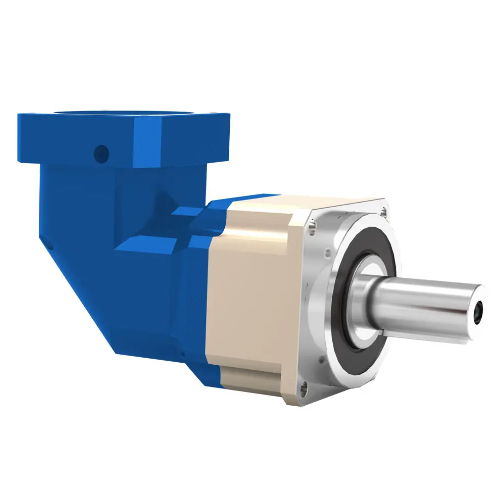

Overview of R Planetary Right Angle Gear Reducer

Low backlash, high rigidity, and high torque are the main characteristics of the PAR gear reducer.
The right-angle design of the reducer can efficiently save mounting space.
The elastic design of the connecting plate and the various sizes enables our gearbox to be combined with all brands of servo motors.
High-quality synthetic lubricants are used to make all parts in the gearbox fully lubricated and protected.

Description

Indication of Model Numbers of R Speed Reducers

Description of R High Precision Planetary Gearboxes

Our company’s famous R series(r precision right angle planetary gearbox) has the advantages of high rigidity, high torque, no oil leakage, maintenance-free, smooth transmission, low noise, etc. It is the perfect solution for the motion control industry. 90-degree right-angle installation can save installation space. The internal structure of the R series gear reducer adopts a spiral bevel gear design, which has stable operation and low noise.
Our company provides a wide variety of planetary gearboxes for the different needs of customers, including in-line gearboxes, right-angle gearboxes, hollow shaft gearboxes, etc. Our company has always focused on research and development of new high-quality products, ensuring that our gearbox production features high performance, high efficiency, and low noise operation.
Featuring a 90-degree right-angle design, the R series is an ideal solution for motion control applications. Flange input design fits most stepper, servo, AC, or DC motors. It is easy to install and maintenance-free.

Overview of R Technical Parameters

1) Gearbox outline dimension: 42,60,90, 115, 142, 180, 220
2)Reduction ratio: 3, 4, 5, 6, 7, 8, 9, 10, 14, 20 ( Single Stage )
15, 20, 25, 30, 35, 40, 50, 70, 80, 100, 120, 140, 160, 180, 200 ( Two Stage )
3) Lubrication: Lifetime lubrication with use of fully synthetic grease
4) Rated Input speed: 3000— 8000rpm
5) Service Life: >20, 000 hours
6) Backlash: for P1 precision 1-Stage :≤ 5 arcmin, 2-Stage: ≤ 8 arcmin
for P2 precision 1-Stage :≤ 8 arcmin, 2-Stage: ≤ 10 arcmin
7)Operating temperature: -15°C to +90°C
8)Protection Class: IP65
9)Noise Value: ≤65~75 DBA

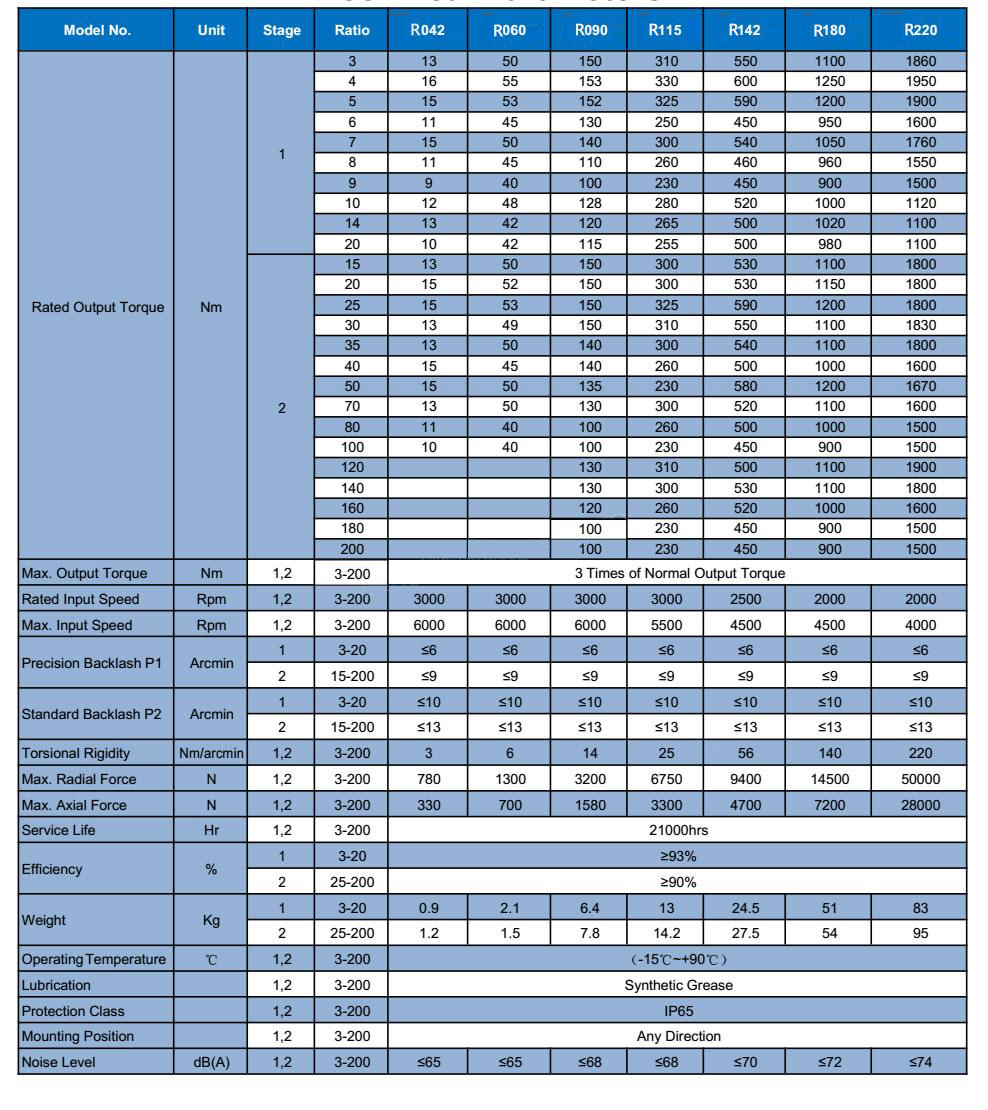

Specification Table of R Planetary Speed Reducer

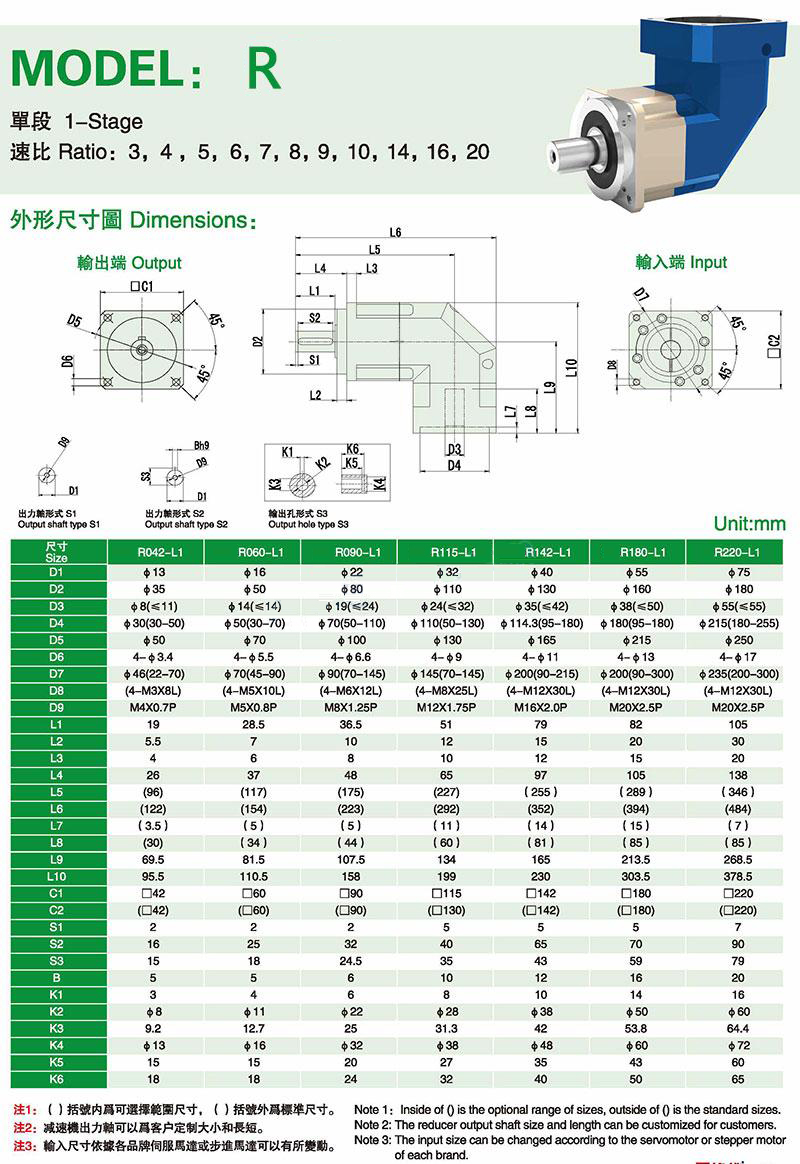

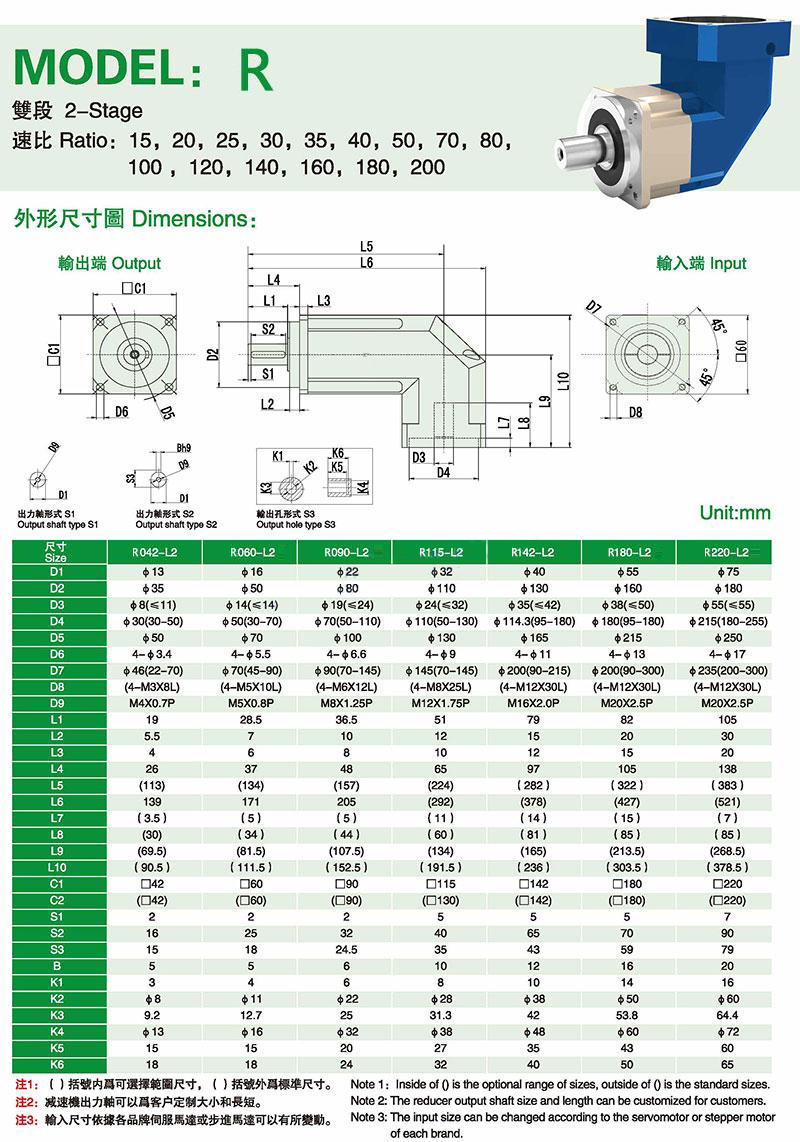

Catalog of R Precision Speed Reducer(r precision right angle planetary gearbox)
