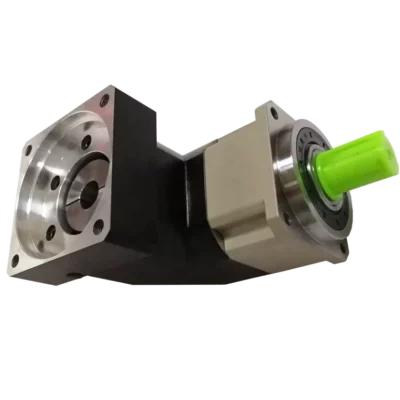

R Right Angle Precision Planetary Gearbox
Overview of R Precision Planetary Right Angle Gearbox
- Right angle type to make motor mounted in 90 degrees bending to save space.
- The use of needle roller bearing achieved high rigidity and high torque.
- The lowest backlash was achieved by the use of spiral bevel gears.
- It is easy to install and can be matched with servo motor and stepper motors.
- No need to replace the grease and free maintenance.
R Right Angle Precision Planetary Gearbox

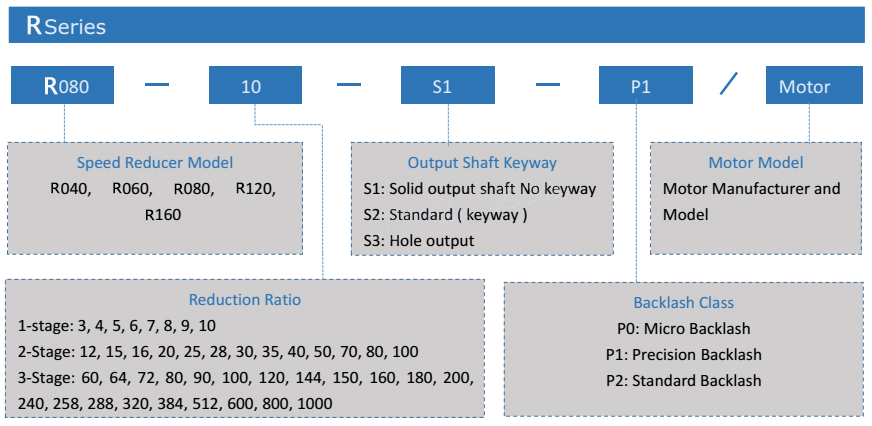

R Right Angle Precision Planetary Gearbox(Indication of Model Numbers of R Speed Reducers)
Description of R Planetary Right Angle Speed Reducer
The R series is suitable for applications with special requirements, especially in space. The compact R planetary gear unit is the perfect solution when installation space is small. Both ends of the planetary gears are supportting the needle bearings to improve torsional rigidity. Both ends of the output shaft are supporting high-precision low-clearance bearings, which have a larger bearing capacity. What’s more, the flange output design makes it easier to connect with equipment.
Application of R Precision Planetary Gearbox
R precision planetary right angle gear reducers are widely working in various fields: environmental protection equipment, precision instruments, flame-cutting, CNC machine tools, tool machinery, automation industry, printing machinery, textile printing and dyeing, pharmaceutical leather, environmental protection equipment, coal equipment, cement equipment, beer Beverages, mining machinery, wire rope drive life testing machines, glass equipment, winding machines, food packaging, welding equipment, CNC machine tools, laser cutting, industrial robot measuring equipment, rubber and plastics, petrochemicals, hoisting and other light and heavy industries, machinery Transmission and precision control fields.
R planetary gearbox excellent manufacturing process:
All components of the R series planetary gearbox are in compliance with our company’s strict quality control system. Planetary gears and sun gears are designning as helical gears, carburized and quenching to 58-62HRC, and subjectting to precision grinding and technical correction to achieve a perfect transmission effect. The planetary gear supports needle rollers at both ends, which improves the torsional rigidity. The protection level of the R planetary gearbox reaches the international standard IP65 (full dustproof and waterproof).

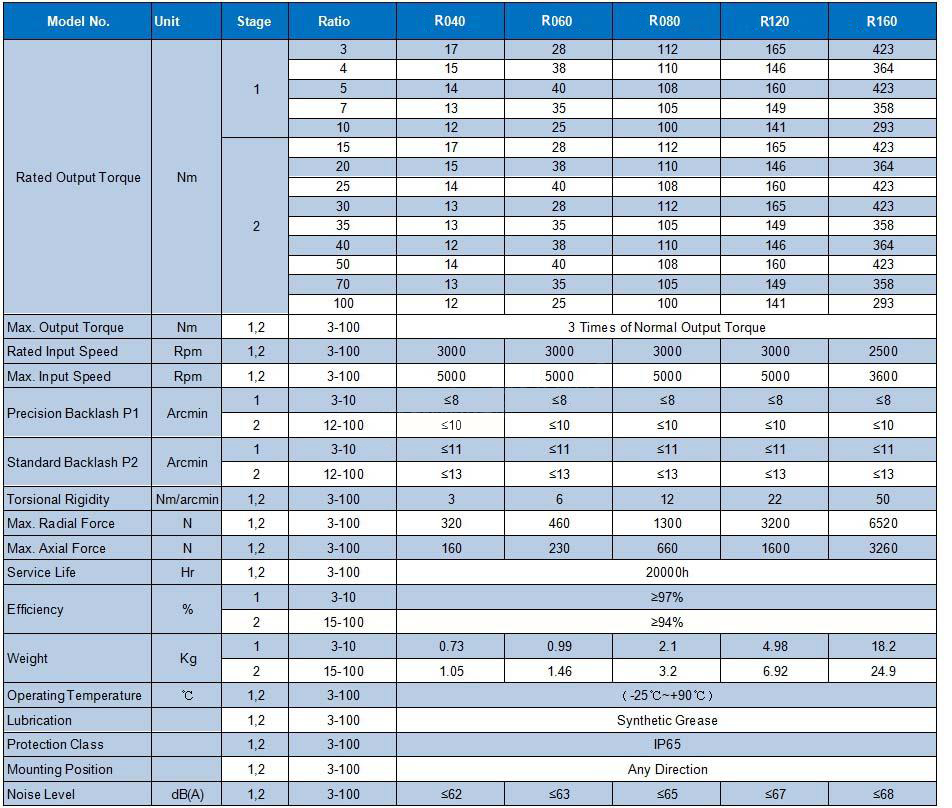

Specification Table of R Planetary Gear Reducer

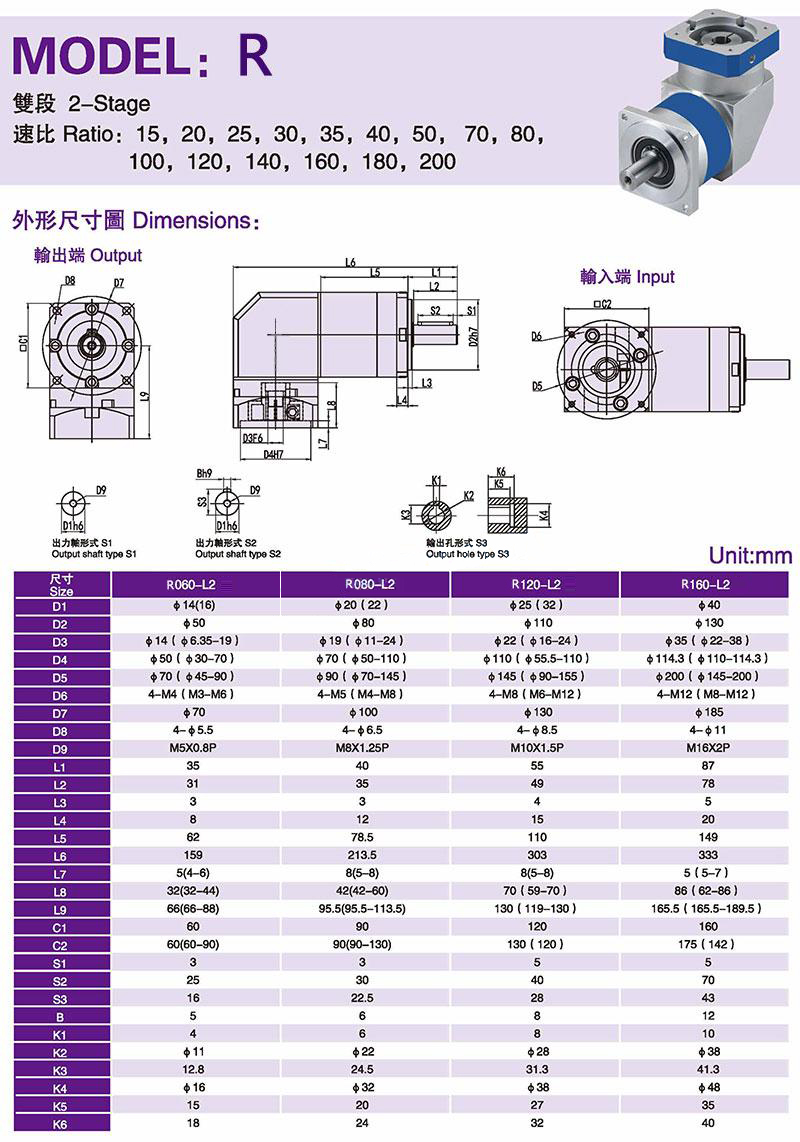

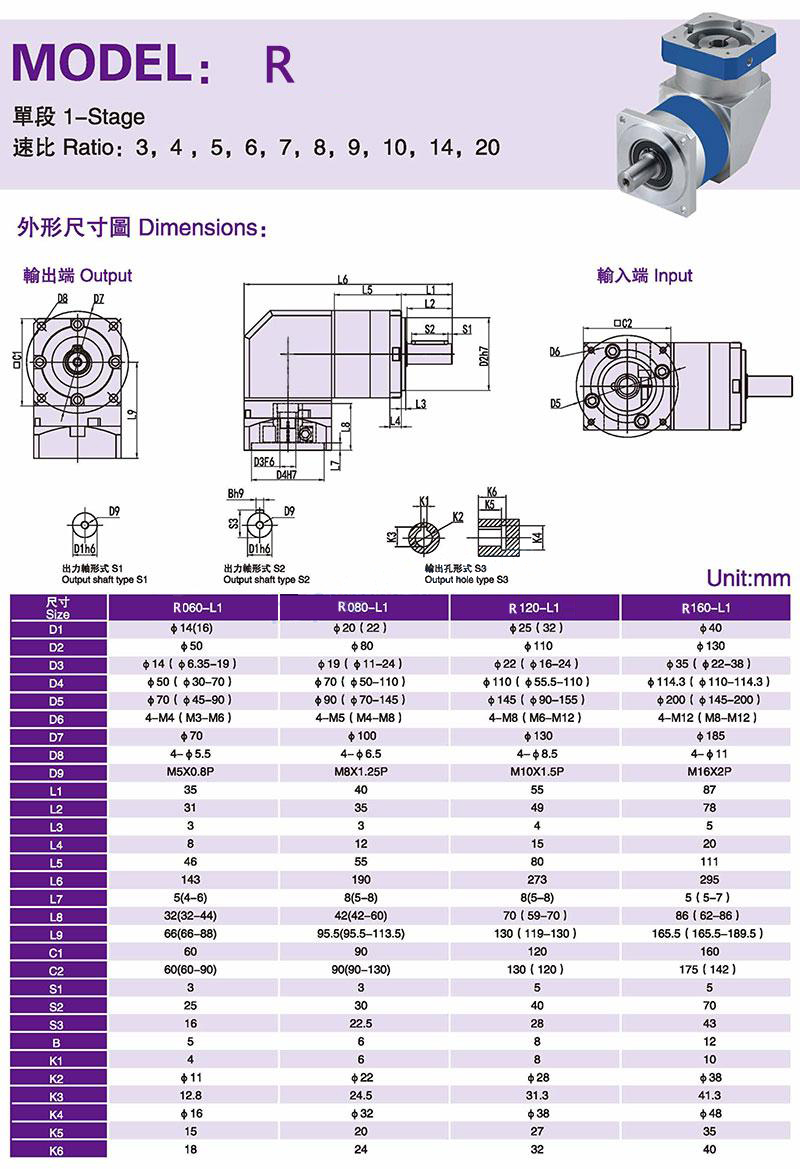

Catalog of R Precision Speed Reducer
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
