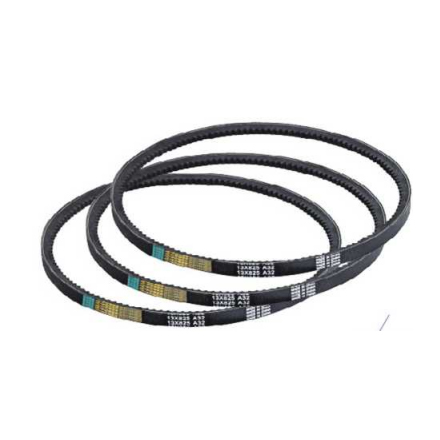

Raw edged V-belt
Raw edged V-belt Characteristics
Common raw edge V-belt is featured by large friction factor, small bending loss, high transmission efficiency, long service life and the like, and can absorb transmission vibration noise, with over the 108 times of fatigue resistance.

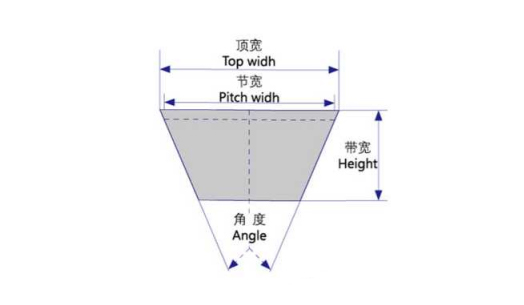

Type, cross-section dimension and length of the belt
Type | Top widh (mm) | Pitch widh (mm) | Height
(mm) |
Wedge angle | |
normal | Y | 6 | 5.3 | 4 | 40° |
Z | 10 | 8.5 | 6 | ||
A | 13 | 11 | 8 | ||
B | 17 | 14 | 11 | ||
C | 22 | 19 | 14 | ||
D | 32 | 27 | 19 | ||
E | 38 | 32 | 23 | ||
SPZ | 10 | 8 | 8 | ||
SPA | 13 | 11 | 10 | ||
SPB | 17 | 14 | 14 | ||
SPC | 22 | 19 | 18 | ||
3V(9N) | 9.5 | 8.5 | 8 | ||
5V(15N) | 16 | 14.2 | 13.5 | ||
8V(25N) | 25.4 | 23.7 | 23 |
