RC-30 Rotary Cutters Gearboxes – Replacement of Omni Code RC-30

Rotary Cutter Gearboxes – Replacement of Omni Code RC-30

RC-30 Rotary Cutters Gearboxes are mechanical devices that are used to transfer power from a tractor or other power source to a rotary cutter. The rotary cutter is a type of agricultural equipment that is used to cut grass, weeds, and other vegetation. RC-30 Rotary Cutters Gearboxes are mounted on the rotary cutter and are responsible for transmitting the power from the power source to the cutting blades of the rotary cutter. The rotary cutter gearboxes consist of a series of gears that are housed in a metal casing. The gears are designed to mesh together and transfer power from the input shaft to the output shaft. The input shaft is connected to the power source, while the output shaft is connected to the cutting blades of the rotary cutter.
Rotary cutter gearboxes are available in a variety of sizes and configurations to meet the specific needs of different applications. They are commonly working in agriculture, landscaping, and other outdoor applications where vegetation needs to be cut or cleared. The gearboxes are designed to be durable and long-lasting, even in harsh environments and high-load applications.

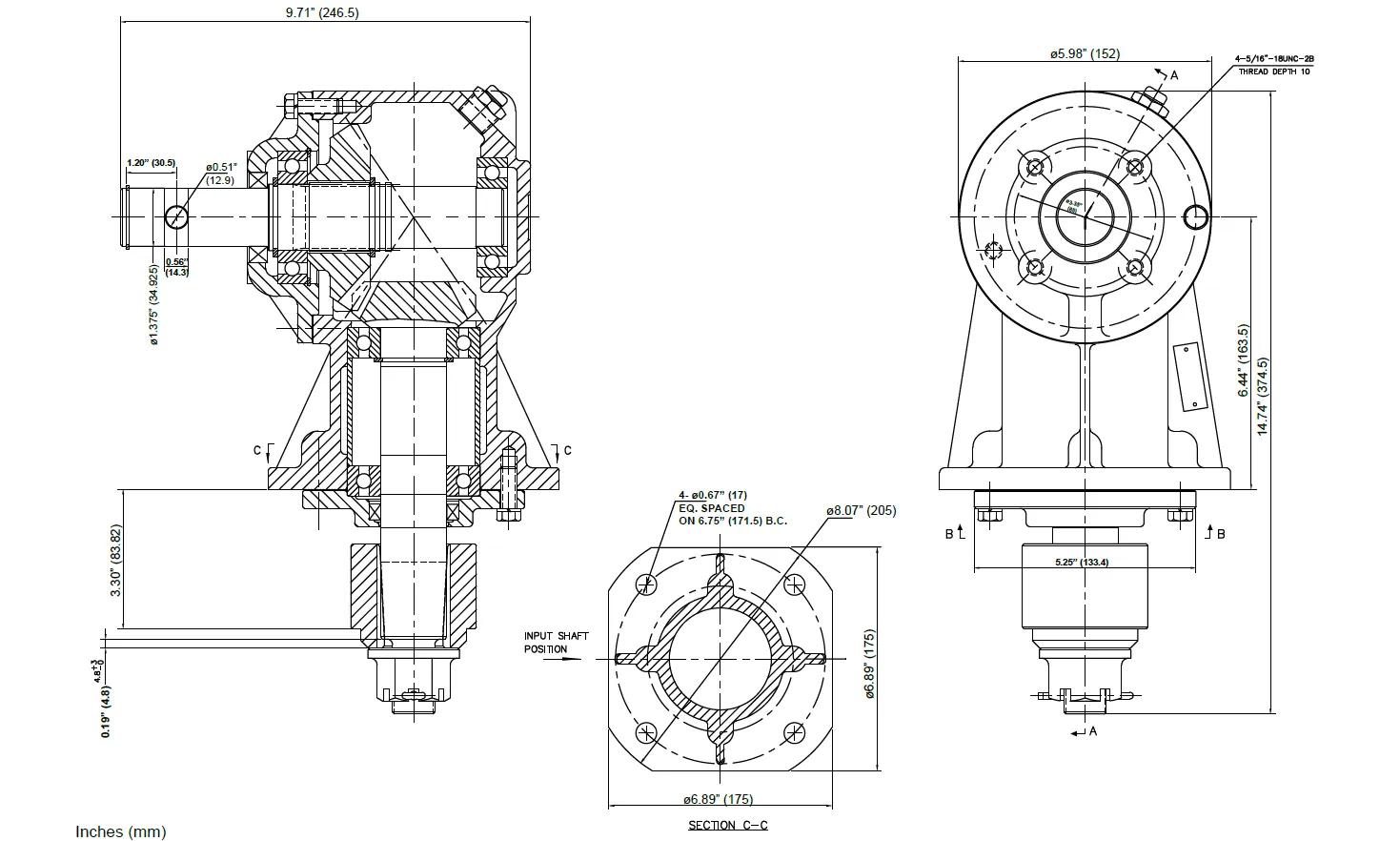

RC30 Series Rotary Cutter Gearboxes Specifications

RC-30 Rotary Cutter Gearbox 1-3/8” – 6 Spline Input Shaft, 1:1.47 Ratio with 12 Tapered Spline Output Shaft

Gear Ratio: 1:1.47 speed up gear ratio for use on 5′ and larger diameter rotary cutters. Input and Output Shaft Diameter: 1-3/8” – 6 spline input shaft with 12 tapered spline output shaft Power Rating: This gearbox has an input RPM of 540, an output RPM of 794 with a max torque of 446 Nm, and a counterclockwise rotation Mounting: Four-bolt mounting matches industry standards; each gearbox includes a blade carrier mounting nut and cotter pin. Includes replacement stump jumper/flywheel 12 splined hub Shipped dry and require 16 ounces of 80-90W gear lube or equivalent. Lubricant is not included Hub is included

RC-30 Rotary Cutters Gearboxes Details

RC30 40 HP Rotary Cutter Gearboxes Features

The RC30 40 HP rotary cutter gearbox is a high-quality gearbox that is designed to provide reliable and efficient power transmission for rotary cutters. Here are some of the key features of this rotary cutter gearbox:

1. High power capacity: The RC30 rotary cutter gearbox is designed to handle up to 40 horsepower, making it suitable for use with a wide range of rotary cutters.
2. Heavy-duty construction: The rotary cutter gearbox is made of high-quality materials, including cast iron housing and steel gears, to ensure durability and long-lasting performance.
3. Smooth operation: The rotary cutter gearbox is designed to operate smoothly and quietly, reducing wear and tear on the gearbox and other components.
4. Easy maintenance: The rotary cutter gearbox is designed to be easy to maintain, with easy access to the gears and other components for inspection and lubrication.
5. Versatility: The RC30 rotary cutter gearbox is available in a variety of configurations to meet the specific needs of different applications, including different input and output shaft sizes and ratios.
6. Sealed design: The rotary cutter gearbox is designed to be sealed to prevent dirt, debris, and other contaminants from entering the gearbox and causing damage.
7. Standard mounting: The rotary cutter gearbox is designed to be mounted using standard mounting patterns, making it easy to install on a wide range of rotary cutters.

Overall, the RC30 40 HP rotary cutter gearbox is a reliable and durable solution for power transmission in rotary cutters, providing high power capacity, heavy-duty construction, smooth operation, easy maintenance, versatility, sealed design, and standard mounting.

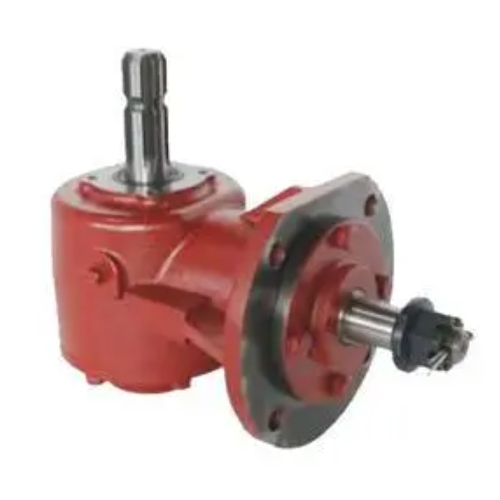

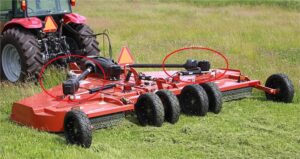

RC30 40 HP Rotary Cutter Gearbox for Rotary Cutter

A 40 HP rotary cutter gearbox is used to transfer power from a tractor or other power source to a rotary cutter. The gearbox is designed to handle up to 40 horsepower, making it suitable for use with a wide range of rotary cutters. A rotary cutter is a type of agricultural equipment that is used to cut grass, weeds, and other vegetation.

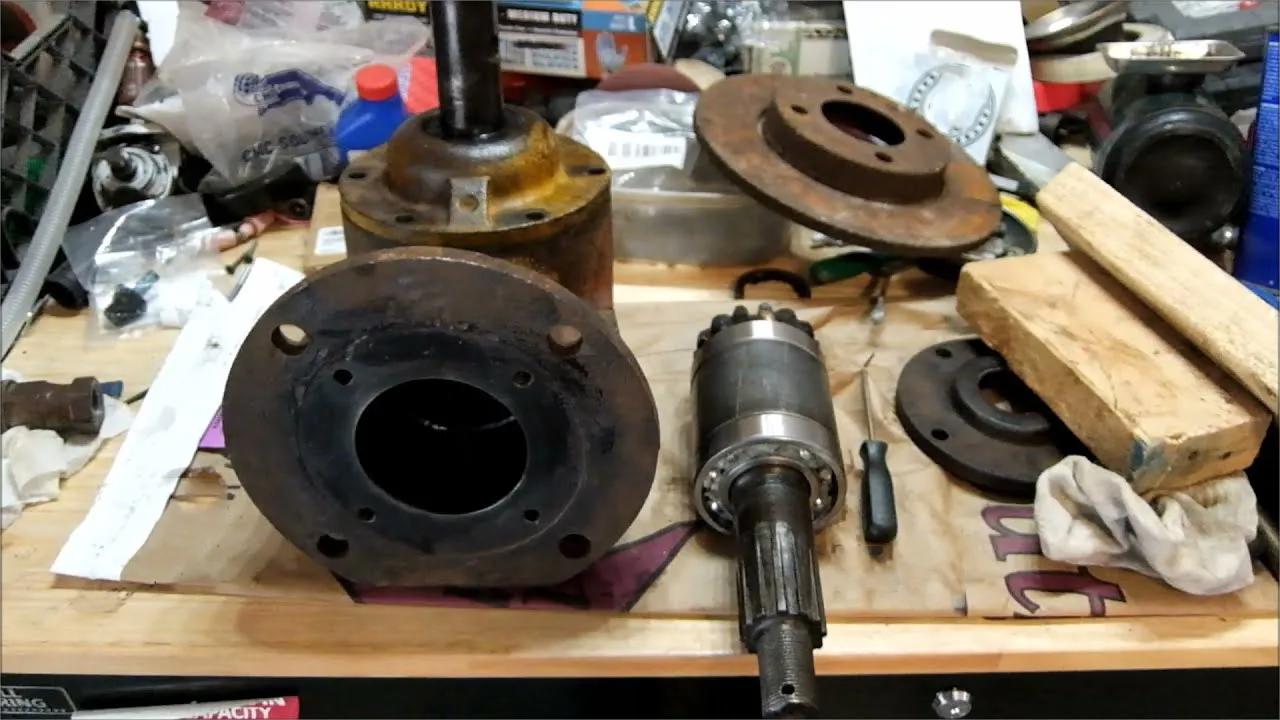

Rotary Cutter Gearbox Seal Replacement Operation Steps

Replacing the seal on a rotary cutter gearbox can help prevent oil leaks and damage to the gearbox. Here are the steps to replace the seal:

1. Remove the rotary cutter gearbox from the machine and drain the oil from the gearbox.
2. Remove the retaining ring or snap ring that holds the seal in place.
3. Use a seal puller or pry bar to remove the old seal from the gearbox. Be careful not to damage the sealing surface or the gearbox housing.
4. Clean the sealing surface and the inside of the gearbox housing with a clean rag or a solvent.
5. Apply a thin layer of oil or grease to the sealing surface and the inside of the gearbox housing.
6. Install the new seal into the gearbox housing.
7. Use a seal driver or a socket that fits the outer diameter of the seal to tap it into place. Be careful not to damage the seal or the gearbox housing.
8. Install the retaining ring or snap ring to hold the seal in place.
9. Refill the gearbox with the recommended oil and check for leaks.
10. Reinstall the rotary cutter gearbox onto the machine and test it for proper operation.

Overall, replacing the seal on a rotary cutter gearbox is a relatively simple process that can help prevent oil leaks and damage to the gearbox. It is important to use the correct tools and follow the manufacturer’s instructions to ensure a proper seal replacement.

PTO Shafts for Rotary Cutter Gearboxes(RC-30 Rotary Cutters Gearboxes)

PTO (power take-off) shafts are an essential component of rotary cutter gearboxes. The PTO shaft connects the gearbox to the tractor or other power source, transferring power from the engine to the rotary cutter gearbox and ultimately to the cutting blades of the rotary cutter. Here are some key points to consider when selecting PTO shafts for rotary cutter gearboxes:

1. Length: Select the length of the PTO shaft based on the distance between the tractor and the rotary cutter gearbox. It is important to select a shaft that is long enough to allow for proper clearance and movement of the rotary cutter.
2. Size: The size of the PTO shaft should match the size of the gearbox input shaft and the tractor PTO output shaft. It is important to ensure that the shafts are compatible to prevent damage to the gearbox or other components.
3. Safety: Equip the PTO shafts with safety features, such as shields or guards, to prevent injury in the event of a malfunction or failure.
4. Maintenance: PTO shafts should be maintained regularly to ensure optimal performance and longevity. This includes lubrication, cleaning, and inspection for signs of wear or damage.
5. Compatibility: It is important to ensure that the PTO shaft is compatible with the specific make and model of the rotary cutter gearbox and tractor.

Overall, selecting the right PTO shaft for a rotary cutter gearbox is essential for ensuring optimal performance and safety. It is important to consider factors such as length, size, safety features, maintenance requirements, and compatibility when selecting PTO shafts.

China Rotary Cutter Gearbox Manufacturers

As one of the experienced rotary cutter gearbox(RC-30 Rotary Cutters Gearboxes) manufacturers, we offer a variety of high-performance rotary cutter gearboxes to meet your needs. There are several rotary cutter gearboxes for sale on the Power-transtech.

You can find 40 hp rotary cutter gearboxes, 60 hp rotary cutter gearboxes, 75 hp rotary cutter gearboxes, 100 hp rotary cutter gearboxes, rotary cutter gearbox seals 90 hp. You can also find PTO shafts used in agriculture applications. Prices vary depending on the make and model, so be sure to compare prices and features before making your purchase.

Overall, agricultural gearboxes are essential components of many types of agricultural equipment, providing reliable and efficient power transmission for a wide range of applications.

Feed Mixer Gearbox	Post Hole Digger Gearbox	Agricultural Sprayer Gearbox	Flail Mower Gearbox	Cutter Bars Gearbox
Gearbox For Hay Tedders	Rotary Mower Gearbox	Rotary Cutter Gearbox	Hydraulic Drive Gearbox	Lawn Mower Gearbox
Fertilizer Spreader Gearboxes	Agitators Gearbox For Sewage	Angular Gearbox	Irrigation Reels Gearbox	Manure Spreader Gearbox
Micro Tiller Gearbox	Parallel Gearbox	Snowblower Gearbox	Round Baler Gearbox	Rotary Tiller Gearbox

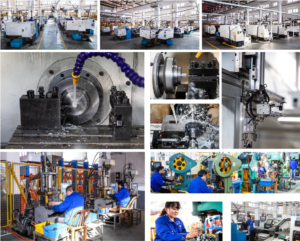

Rotary Cutter Gearboxes Production Workshop

Devoted to R&D and manufacturing and personnel training on various gearboxes, reducers. And engineering machinery, including bevel gearboxes, agricultural gearboxes, planetary gearboxes, helical gearboxes, cycloidal gearboxes, worm gearboxes. We offers reliable agricultural gearbox solutions for almost any farming application. The agricultural gearbox is the main mechanical component of the kinematic chain of farming machines. We make high-quality for all kinds of agriculture gearboxes. Vast choices include the agricultural machine application of rotary cutters, fertilizer spreaders. Feed mixers, post-hole diggers, flail mowers, rotary tillers, etc. Welcome to contact us by phone or email.
