RC Series Foot-mounted Helical Gear Unit
The high degree of modularity is a design feature of the RC helical gearboxes range. It can be connected respectively with motors such as normal motors, brake motors, explosion-proof motors, frequency conversion motors, and servo motors. IEC motor, and so on. This kind of product is widely used in drive fields such as textile, foodstuff, ceramics packing, logistics plastics, and so on. It is possible to set up the version required using flanges or feet.

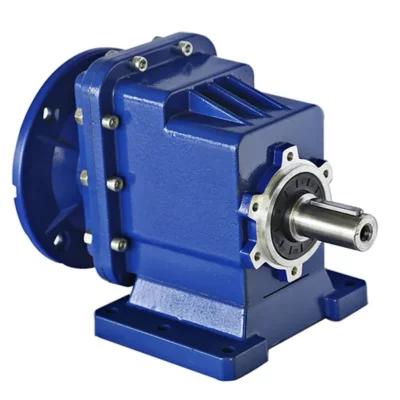

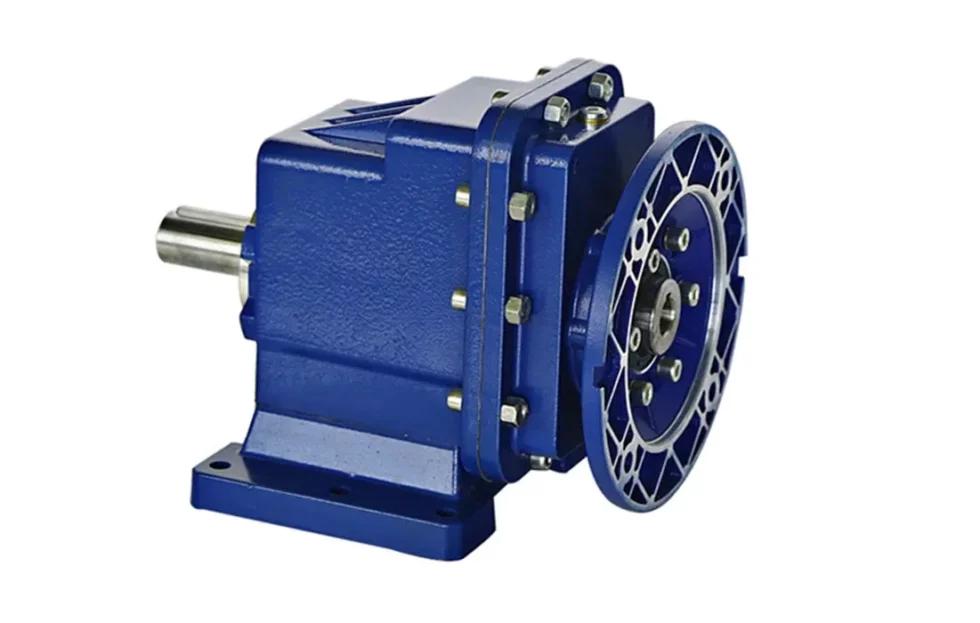

RC Series Aluminum Alloy Housing Helical Gearbox with Foot Mounted
The high degree of modularity is a design feature of the RC helical gearboxes range(RC Series Helical Gearbox with Foot Mounted). It can be connected respectively with motors such as normal motors, brake motors, explosion-proof motors, frequency conversion motors, and servo motors. IEC motor, and so on. This kind of product is widely used in drive fields such as textile, foodstuff, ceramics packing, logistics plastics, and so on. It is possible to set up the version required using flanges or feet.
RC Series Foot-mounted Helical Gearbox Specifications
|
Model No
|
Output torque
|
Rated input speed
|
Max input speed
|
Ratio
|
Rated Power
|
|
RC01
|
116N.m
|
≤1500rpm
|
3000rpm
|
3.82-53.33
|
120-1500W
|
|
RC02
|
197N.m
|
≤1500rpm
|
3000rpm
|
3.66-54
|
180-1500W
|
|
RC03
|
300N.m
|
≤1500rpm
|
3000rpm
|
3.74-51.3
|
370-4000W
|
|
RC04
|
491N.m
|
≤1500rpm
|
3000rpm
|
3.74-51.3
|
750-4000W
|
RC Series Foot-mounted Helical Gearbox Parts Structure
RC Series Helical Gearbox Components Parameter
| Housing: | Aluminum Alloys |
| Gears: | Hardened Helical Gears |
| Input Configurations: | Hollow Shaft with IEC Normalized Motor Flange /Solid Shaft Input |
| Applicable Motors: | IEC-normalized Motors and Brake Motors/Explosion-proof Motors/Inverter Motors/Servo Motors |
| Output Configurations: | Solid Shaft with B5 Output Flange/Solid Shaft with B14 Output Flange |
| Models: | RC(Foot-mounted): RC01,RC02,RC03,RC04 |
| Applications: | Textile, Food, Ceramics, Packaging, Logistics, Plastics Industry |
| Installation: | Foot-mounted |
| Lubrication: | Oil-bath and Splash Lubrication/Cooling:/Natural Cooling |
RC Series Foot-mounted Helical Gearbox Characteristics
- Ground-hardened helical gears
- Modularity can be combined in many forms
- Aluminum casing, lightweight
- Gears in carbonized hard, durable
- Universal mounting
- Refined design, space effective, and low noise.
RC Series Foot-mounted Helical Gearbox Mounting Position
We Also Provide Other Series of Helical Gearbox
 |
 |
 |
| BRC(IEC) | BRC(IEC) | BRC(IEC) |
| FOOT-MOUNTED HELICAL GEAR UNIT | B14 FLANGE-MOUNTED HELICAL GEAR UNIT | FLANGE-MOUNTED HELICAL GEAR UNIT |
 |
 |
 |
| BRC(HC) | BRC(HC) | BRC(HC) |
| SHAFT INPUT FLANGE-MOUNTED HELICAL GEAR UNIT | SHAFT INPUT B14 FLANGE-MOUNTED HELICAL GEAR UNIT | SHAFT INPUT FLANGE-MOUNTED HELICAL GEAR UNIT |
Helical Gearbox Manufacturer in China
As one of the top helical gearbox manufacturers in china, Power-trans offers superior efficiency helical gearboxes widely used in applications where high shock load is required. The helical gearbox includes a set of helical gears. These helical gears are used as power transmitting gears, cylindrical gears, with the slanted form of tooth trace. These teeth are cut at an angle to the hole (axis), and the line of contact between the two teeth is inclined. This gradual engagement of teeth from one end of the tooth to the other makes the gears function smoothly without noise.
In comparison with spur gears, helical gears have a higher contact level; because of their lower dynamics, they can carry larger loads. The helical gearbox is manufactured with high-quality material and excels in quietness as its noise and vibration levels are very low. We also produce RV series worm gearboxes, WP series worm gearboxes, R/F/S/K series helical gearboxes,etc.
We manufacture gearboxes and geared motors for mining, rolling mills, conveyors, crushers, cranes, thermal power plants, larger ball mills, mixers, agitators, plastic extruders, fin cooler drives, etc. Our products are widely used in applications like material handling, presses, elevators/escalator drive systems, feeders, small ball mills, cooling towers, filters, stirrer units, hoists, lapping tables, steel cooling beds, plastic machinery, goods & personnel lifts, machine tools, derrick & dockyard slewing drives; truck mounted mobile cranes, etc. dredging equipment, automotive, road making machinery, sugar crystallizers, wind turbines, medical equipment, robotics machinery, aviation equipment, packaging equipment, and mill drives.
| Main Products | ||
|
 |
 |

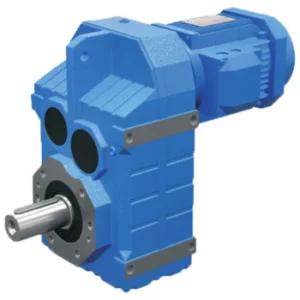

| RV Series | WP Series | F Series |
 |
 |
 |

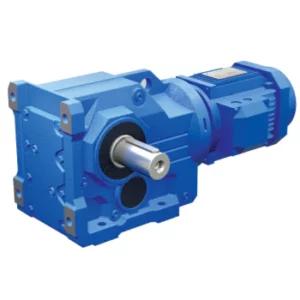

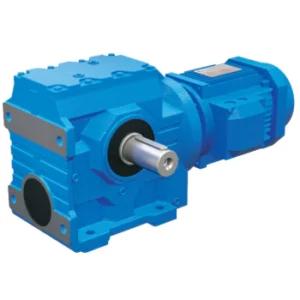

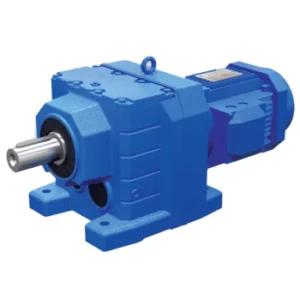

| K Series | R Series | S Series |
