Rotary Cutter Gearbox – Replacement of Omni Gearbox RC61
Descriptions of Rotary Cutter Gearbox
A RC61 rotary cutter gearbox is a mechanical device that is designed to transfer power from the tractor to the rotary cutter. The gearbox contains a system of gears, bearings, and seals that work together to transmit power and regulate the speed of the rotary cutter blade.
One of the main functions of a rotary cutter gearbox is to change the direction of the power flow from the tractor to the rotary cutter. The gearbox takes power from the PTO (power take-off) shaft of the tractor and converts it into a rotational force that is then transmitted to the rotary cutter through the driveshaft.
The rotary cutter gearbox also regulates the speed of the rotary cutter blade. The blade speed must be matched to the mowing conditions in order to achieve optimal performance. If the blade is rotating too slowly, it may not cut the grass effectively. Conversely, if the blade is rotating too quickly, it may cause unnecessary wear and tear on the cutter.
To ensure smooth and efficient operation, a rotary cutter gearbox must be properly lubricated. The gearbox contains oil and grease that help to reduce friction between the gears, bearings, and seals. Proper lubrication is essential to prevent excessive wear and tear on the gearbox components.
Overall, a rotary cutter gearbox is a critical component of any rotary cutter system. It helps to ensure that the machine operates safely, efficiently, and effectively, providing a powerful and reliable solution for cutting grass and weeds.
RC61 Rotary Cutter Gearbox Specifications

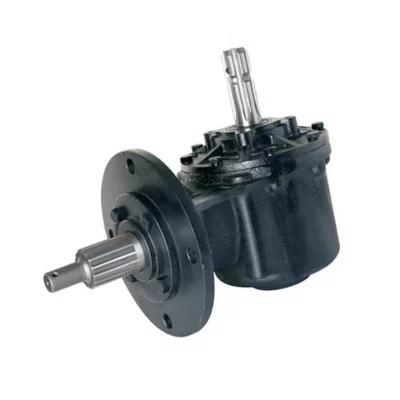

Model: T-RC61
RC61 Rotary Cutters Gearbox Torque | 4,803 – 9,683 lb.-in. |
(461 – 1,903 Nm.) | |
Ratios | 1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.93 |
Gear Type | Bevel |
Seal Type | Triple Lip Spring Loaded |
Bearing Type | Tapered Roller |
Oil Capacity | 32 oz. |
(0.95 L) | |
Weight | 81 lbs. |
(36.7 kg.) |
75 HP Rotary cutter gearbox with 1-3/8″ 6-spline input shaft and a gear ratio of 1:1.46. Cast iron housing is sealed to protect the gears and bearings. The mounting plate has four bolt holes spaced 5.5″ square. Ships without oil (16 oz of 80-90 W)
The gearbox has a piloted flange bottom to fit in a 5-5/8″ pilot hole in the mower/cutter deck.

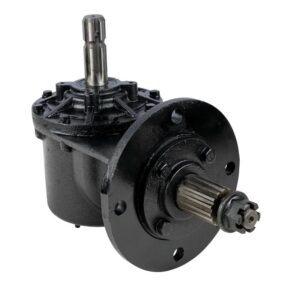

RC61 75HP Rotary Cutter Gearbox Features
The RC61 75HP rotary cutter gearbox features several important elements:
- Heavy-duty construction: The rotary cutter gearbox is constructed with a durable housing to protect internal components and withstand heavy use.
- High-performance bearings: Precision bearings provide smooth operation and long-lasting performance.
- Sealed oil bath: The rotary cutter gearbox is lubricated with oil that is sealed inside, providing constant lubrication and reducing the need for maintenance.
- Shock load protection: The rotary cutter gearbox is designed to handle sudden, heavy loads without damage to the internal components.
- Easy maintenance: The rotary cutter gearbox is designed for easy access to internal components, making maintenance and repairs easier and more efficient.
- Multiple output shaft options: The RC61 rotary cutter gearbox can be configured with a range of output shaft sizes and styles to fit different cutting applications.
- Protection against overloading: The rotary cutter gearbox is designed with a slip clutch or shear bolt to protect against damage from overloading.
All of these features make the RC61 75HP rotary cutter gearbox a reliable and durable solution for cutting tasks in a variety of industries.

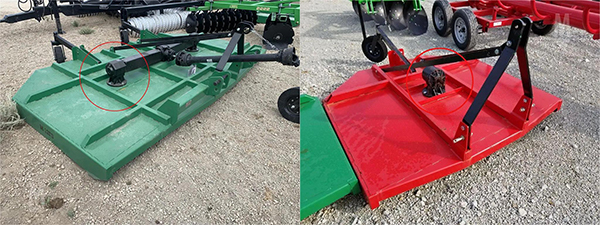

Rotary Cutter Gearbox Used in Agriculture Application
A rotary cutter gearbox is a necessary component in many agricultural applications such as mowing, tilling, and cutting crops. These gearboxes are designed to handle the harsh conditions found in farming, including dirt, debris, and heavy loads.
The rotary cutter gearbox is typically mounted to the cutting blade assembly and is powered by an external power source, such as a tractor’s PTO (power take-off) shaft. The gearbox contains a set of gears that transfer power from the PTO shaft to the cutting blades. The gearbox also helps to regulate the speed and torque of the blades, ensuring that they rotate at a consistent rate.
The design of a rotary cutter gearbox varies depending on the specific application, but generally, they are made of durable materials such as cast iron or steel for maximum strength and longevity. They are also engineered to withstand the high stresses and loads that come with agricultural work.
Overall, a rotary cutter gearbox is a crucial component in agricultural applications that require the use of cutting equipment. They provide reliable power transfer and help to ensure consistent cutting performance, making them essential tools for farmers and ranchers.

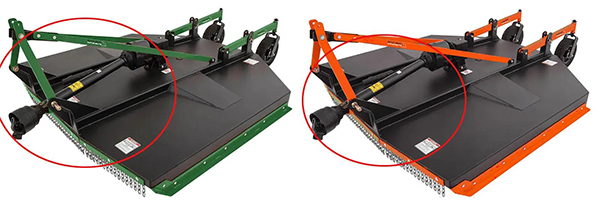

PTO Shafts for Rotary Cutters Gearboxes
PTO (Power Take-Off) shafts for rotary cutters are an important component when it comes to agriculture and farming. A gearbox is responsible for transferring power from the tractor engine to the rotary cutter, which in turn helps to mow grass or clear vegetation.
When selecting a PTO shaft, there are a few factors to consider. Firstly, the size of the tractor and the horsepower of the engine will determine the size and strength of the PTO shaft. It’s important to choose a shaft that is strong enough to handle the power output of the tractor without breaking.
Secondly, the length of the PTO shaft must be determined based on the distance between the tractor and the rotary cutter. It’s important to get the length right to ensure there’s enough flexibility without risking damage to the shaft.
Lastly, it’s essential to choose a PTO shaft that fits the specific gearbox model that is being used. Different gearboxes require different types of PTO shafts, so it’s important to get the right match.
When maintained and used properly PTO shafts for rotary cutters are reliable and durable components that help improve farming efficiency and effectiveness.
RC61 75HP Rotary Cutter Gearbox Repair
Over time, a rotary cutter gearbox can experience wear and tear due to the harsh conditions of agricultural work. However, many gearbox issues can be repaired by following these steps:
- Inspect the gearbox: The first step is to inspect the rotary cutter gearbox thoroughly to identify the issues. Look for signs of wear, such as loose or broken gears, leaking seals, or damaged bearings.
- Disassemble the gearbox: Once you have identified the problem, disassemble the rotary cutter gearbox carefully. Follow the manufacturer’s guidelines or repair manual to ensure that you do not cause further damage.
- Clean the individual components: After disassembling the rotary cutter gearbox, clean the individual components thoroughly. Use a parts cleaner or solvent to remove any dirt, debris, or grease.
- Replace the damaged parts: Replace any worn or damaged components, including gears, bearings, and seals. Make sure that you use the correct parts for your specific rotary cutter gearbox model.
- Reassemble the gearbox: Once you have replaced the damaged parts, reassemble the rotary cutter gearbox, following the manufacturer’s guidelines. Make sure that all components are installed correctly and that the gearbox is properly lubricated.
- Test the gearbox: After reassembling the rotary cutter gearbox, test it to ensure that it is functioning correctly. Check the gearbox for leaks, unusual noises, or vibrations, and ensure that the blade is rotating at the correct speed.
In conclusion, repairing a rotary cutter gearbox requires careful inspection of the gearbox. Disassembling it. Cleaning the individual components, replacing the damaged parts, reassembling the gearbox. And testing it to ensure that it functions correctly. It is essential to follow the manufacturer’s guidelines or repair manual to avoid causing further damage.
Other Agricultural Gearboxes
The agricultural gearbox is designed to change the output speed of a PTO drive shaft. It can be used as a decreasing or increasing ratio gearbox. The decreased ratio gearbox reduces the PTO shaft’s speed from 1000 rpm to 540 rpm. Allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.
