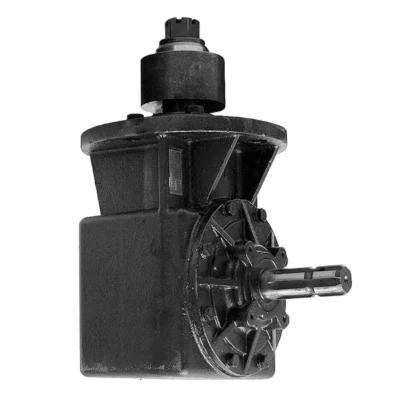

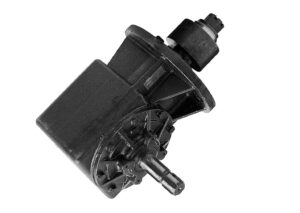

Replacement of Omni Code RC71 Rotary Cutters Gearbox
An RC71 rotary cutter gearbox is a component that is working in agricultural equipment such as rotary cutters or slashers. It is typically located at the point where the power is transferring from the tractor to the cutting equipment. The RC71 gearbox contains a series of gears and bearings. Work together to transfer power from the PTO (power take-off) shaft of the tractor to the blades or cutters of the rotary cutter.
The purpose of the RC71 rotary cutter gearbox is to provide a stable, consistent transfer of power to the cutting equipment, ensuring that it can cut through tough vegetation and other materials without losing power or getting damaged. The RC71 rotary cutter gearbox also helps to protect the tractor and the cutting equipment from excessive wear and damage by reducing the shocks and vibrations that can occur during operations.
Different models of rotary cutter gearboxes may have different features, such as different gear ratios, torque capabilities, and lubrication systems. Proper maintenance of the rotary cutter gearbox, including regular inspections and lubrication, is essential to ensure its longevity and effective performance over time.

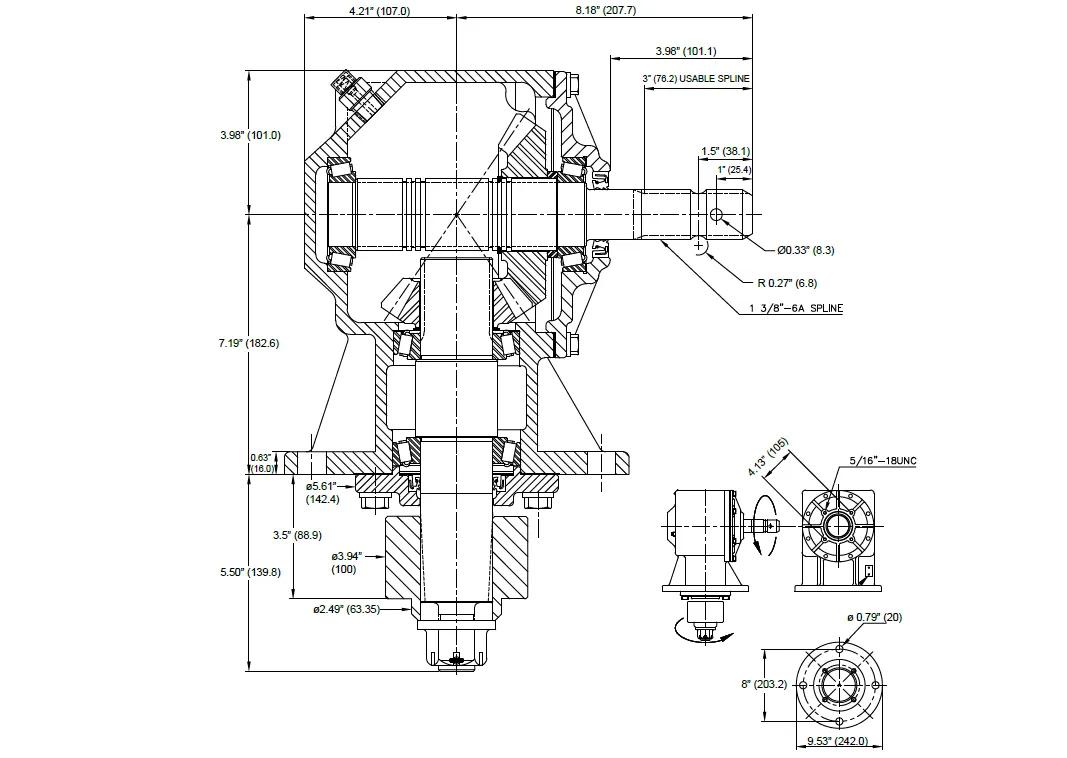

RC71 Rotary Cutter Gearbox Specifications
Model | T-RC71 Rotary Cutter Gearbox |
Torque | 4,083 – 9,683 lb.-in. (461 – 1,093 Nm.) |
Ratios | 1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.93 |
Gear Type | Bevel |
Seal Type | Triple Lip Spring Loaded |
Bearing Type | Tapered Roller |
Oil Capacity | 35 oz. (1.04 L) |
Weight | 83 lbs. (37.7 kg.) |
RC71 Rotary Cutter Gearbox Design Features
The RC71 rotary cutter gearbox is a heavy-duty gearbox. Designed for using in a variety of applications, including agriculture, construction, and forestry. The gearbox is available in a variety of ratios so that it can be matched to the specific application. The gearbox is making with high-quality materials and construction, so it is durable and reliable. It features a high-strength housing, a durable gear train, and a reliable lubrication system. The RC71 rotary cutter gearbox is also easy to install and maintain. Here are some of the design features of the RC71 rotary cutter gearbox:
- Durable housing: The housing of the RC71 rotary cutter gearbox is making of high-quality materials such as cast iron. Aluminum or steel to ensure durability, prevent corrosion and resist wear and tear.
- Sealed Lubrication System: The RC71 rotary cutter gearbox comes with a sealed lubrication system that helps to protect the gearbox from dirt. Debris and other contaminants that could affect its performance.
- High Gear Ratio: The RC71 rotary cutter gearbox has a high gear ratio to increase the torque and cutting power of the rotary cutter. This feature enables the equipment to handle challenging cutting tasks such as cutting thick vegetation or trees.
- Easy Maintenance: Designed to be easily maintained with features such as grease fittings, drain and fill plugs for the lubricant.
- Safety Features: Fitted with safety features such as a protective shield to prevent operators from coming into contact with the rotating components and driveline protection guards to prevent damage to the driveline.
- Multiple Input and Output Shaft Options: Designed with multiple input and output shaft options, allowing it to be connected to different types of equipment depending on the customer’s needs.
Overall, the design features of an RC71 rotary cutter gearbox are aimed at ensuring long-term durability, easy maintenance, and excellent performance even in the most challenging terrain environments.

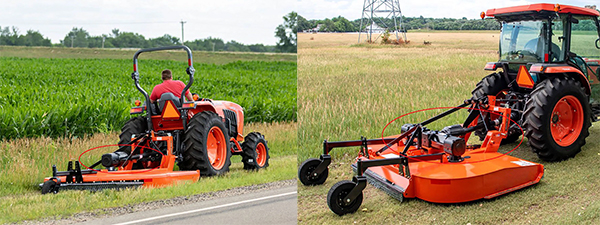

Usage Scenarios
The RC71 rotary cutter gearbox canworks in various scenarios, and some of the most common usage scenarios include the following:
Agricultural Applications: The RC71 rotary cutter gearbox is commonly used in agricultural applications for cutting and clearing fields, pastures, and fence lines. The rotary cutter gearbox’s high gear ratio and cutting power make it suitable for handling tough vegetation and terrain.
Landscaping Applications: Landscaping professionals can use the RC71 rotary cutter gearbox to maintain and clear landscaping areas such as parks, golf courses, or municipal areas.
Forestry Applications: The RC71 rotary cutter gearbox works in forestry applications for clearing land and maintaining trails. The high cutting power of the rotary cutter gearbox can be useful in clearing away thick or unwanted vegetation.
Overall, the RC71 rotary cutter gearbox is a versatile piece of equipment. It is working in various applications where land clearing or vegetation management. Its durability, high gear ratio, and cutting power make it perfect for challenging terrain environments, and it also has the added benefit of easy maintenance and multiple input and output shaft options for multiple applications.

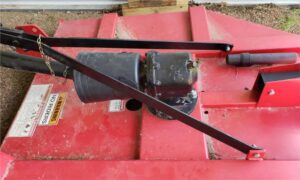

How to Replacement RC71 Rotary Cutters Gearbox for Rotary Cutter?
Replacing a rotary cutter gearbox can be a challenging task. Done with the right tools and procedures. Here are the general steps. How to involve in replacing a rotary cutter gearbox:
- Remove the PTO shaft: Disconnect the PTO shaft from the tractor or any other equipment.
- Remove the blade pan: Remove the blade pan and disconnect the blades from the rotary cutter gearbox. This will involve removing any bolts and nuts that secure the blades and blade pan to the gearbox.
- Remove the old gearbox: Use a wrench or socket to remove the bolts. Secure the old gearbox to the deck of the rotary cutter. Be careful when removing the rotary cutter gearbox since it may be heavy.
- Install the new gearbox: Position the new rotary cutter gearbox onto the deck of the rotary cutter. And secure it using the bolts that came with the new gearbox.
- Reinstall the blade pan: Reinstall the blade pan and secure the blades to the new rotary cutter gearbox.
- Attach the PTO shaft: Reattach the PTO shaft to the new rotary cutter gearbox. Connect it to the tractor or equipment.
- Test the rotary cutter: Turn on the tractor or equipment and test the rotary cutter to ensure proper rotary cutter gearbox function and alignment.
It is important to refer to the manufacturer’s instructions when replacing a rotary cutter gearbox to avoid damage or injury. Also, ensure that you have the appropriate tools and personnel to carry out the task safely and efficiently. If you are unsure or uncomfortable replacing the rotary cutter gearbox. It is best to seek the help of a trained professional.
