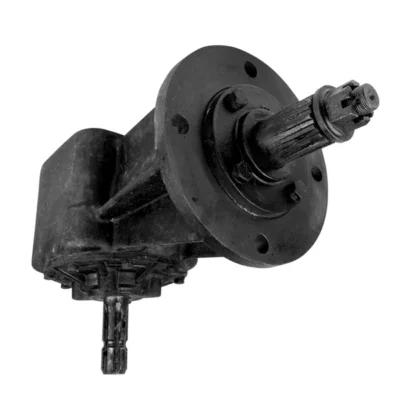

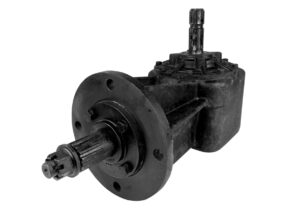

Rotary Cutters Gearbox – Replacement of Omni Code RC81 RC-81

The RC81 rotary cutter gearbox is a gearbox designed to be used with rotary cutters, including mowers and other agricultural equipment. It is a high-precision gearbox that is built for heavy-duty use and can withstand large amounts of torque and shear forces. The RC81 rotary cutter gearbox is made from high-quality materials such as cast iron, steel, and precision gears and bearings to ensure long-lasting and reliable performance. It is designed to fit a range of rotary mowers and other agricultural applications, and it can be easily installed and maintained.

Description

Rotary Cutter Gearbox – Replacement of Omni Code RC81 RC-81 Gearbox

The RC81 rotary cutter gearbox is a gearbox. Which is designing to be working in rotary cutters, including mowers and other agricultural equipment. It is a high-precision gearbox. That is built for heavy-duty use and can withstand large amounts of torque and shear forces. Made from high-quality materials such as cast iron, steel, and precision gears and bearings to ensure long-lasting and reliable performance. Design it to fit a range of rotary mowers and other agricultural applications, and easily installed and maintained.
Known for its strength, durability, and reliability. And it is commonly working in agricultural and industrial settings. If you are looking for a reliable and durable gearbox for your rotary cutter, the RC81 rotary cutter gearbox is a great option.

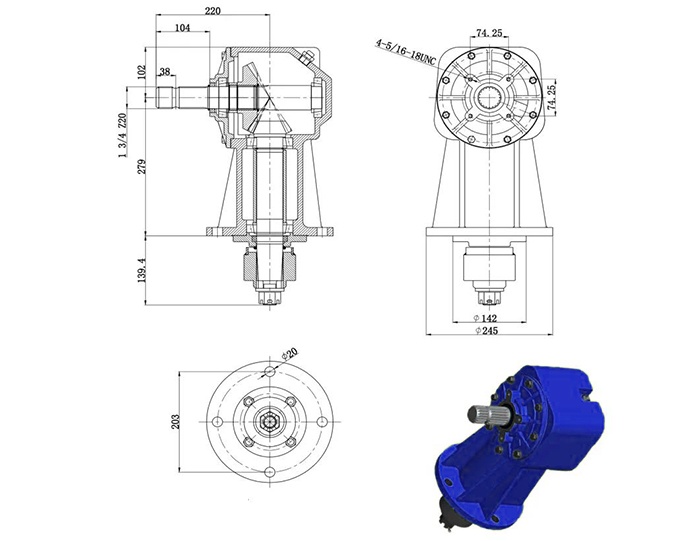

RC81 Rotary Cutter Gearbox Specifications

Use	Part Number	Input Parameters					Output Parameters
		Ratio	Rotational Speed	Power	Horse Power	Torque	Torque	Rotational Speed
		Ratio	R.P.M	KW	HP-CV	N.M	N.M	R.P.M
Rotary Cutter	RC81-01	1:1.92	540	74	100	1308	680	1038
Rotary Cutter	RC81-02	1:1.46	540	74	100	1308	680	788

Model	T-RC-81 Rotary Cutter Gearbox
Torque	5,483 – 12,133 lb.-in. (619 – 1,370 Nm.)
Ratios	1.21:1, 1:1, 1:1.21, 1:1.46, 1:1.92
Gear Type	Bevel
Seal Type	Triple Lip Spring Loaded
Bearing Type	Tapered Roller
Oil Capacity	62 oz. (1.8 L)
Weight	98 lbs. (44.5 kg.)

RC81 Rotary Cutter Gearbox Parts Structure

The RC81 rotary cutter gearbox is a complex piece of machinery with many different parts. Here is a brief overview of the major parts:

Input Shaft: The input shaft is the part of the rotary cutter gearbox that receives power from the tractor or motor.

Bearings: The bearings support the input shaft and allow it to rotate smoothly.

Gears: The gears inside the rotary cutter gearbox transfer power from the input shaft to the output shaft.

Output Shaft: The output shaft is the part of the rotary cutter gearbox that delivers power to the rotary cutter blade.

Seals: The seals prevent oil and grease from leaking out of the rotary cutter gearbox.

Housing: The housing protects the internal parts of the rotary cutter gearbox from damage.

The RC81 rotary cutter gearbox is a precision-engineered product that requires all of its parts to work together perfectly in order to function properly. If any of the parts have problem(damaged or worn), it can cause the gearbox to fail. It is important to inspect the rotary cutter gearbox regularly for signs of damage and to replace any worn or damaged parts immediately.

China Rotary Cutter Gearbox Manufacturers

As one of the experienced rotary cutter gearbox manufacturers, we offer a variety of high-performance rotary cutter gearboxes to meet your needs. There are several rotary cutter gearboxes for sale. You can find 40 HP rotary cutter gearboxes, 60 HP rotary cutter gearboxes, 75 HP rotary cutter gearboxes, 100 HP rotary cutter gearboxes, and rotary cutter gearbox seals 90 HP. You can also find PTO shafts used in agriculture applications. Prices vary depending on the make and model, so be sure to compare prices and features before making your purchase.

We Also Provide Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. If you want to buy rotary cutter gearboxes, please get in touch with us.
