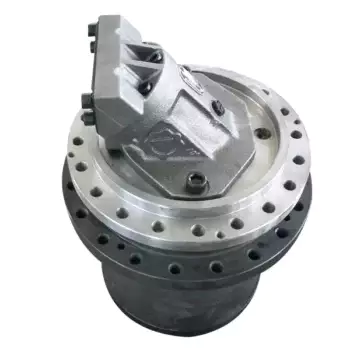

Feature of RCW Series Winch Drive
The modern RCW Series Winch Drive design concept adopts high-strength materials and tapered roller bearings to maximize performance. The first-class torque density can meet the highest standards at sea and sea. Perfect solution for mobile and fixed applications.
- Heavy duty range features Eight sizes.
- Marine-resistant paint
- Up to 330,000 Nm FEM standard torque rating @25rpm
- tapered roller bearings
- suitable for hydraulic or electric motors
- Spring applied/hydraulic release and multi-disc static brake
| Size | Output Torque* [Nm] |
Max Input Speed [rpm] |
Weight [kg] |
| 908 | 53.000 | 5.000 | 260 |
| 910 | 74.000 | 5.000 | 333 |
| 913 | 104.000 | 5.000 | 427 |
Alternative Brand/Model Inquiry
Note: the installation dimensions of our planet gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox are entirely consistent with the following brands, and their performance parameters are very close to them, which can be used instead of their products.
If you are interested, you can click here to find the specific models that can be replaced.
| Trasmital Bonfiglioli | Brevini Riduttori | Bosch Rexroth | Comer Industries |
| Reggiana Riduttori | Rossi | Zollern |
Application of RCW Series Winch Drive
 |
 |

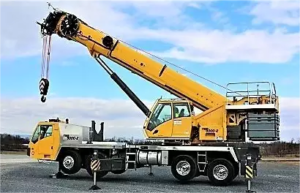

| Drilling machines: track, slew, winch, rotary head drives | Truck-mounted cranes: slew, winch drives |
 |
 |

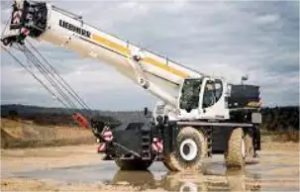

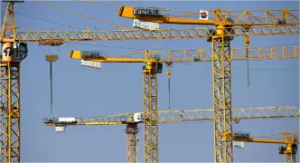

| Rough terrain cranes: slew, winch drives | Building cranes: slew, winch drives, trolley, lifting drives |
 |
 |

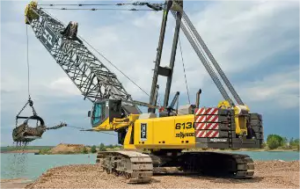

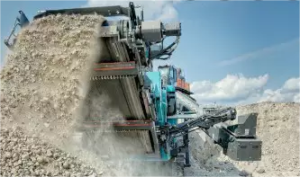

| Crusher & screeners: track, conveyor drives | Crawler cranes: track, slew, winch drives |
RCW Series Winch Drive Manufacturer
This wheel drive gearbox can Replace Brevini Riduttori wheel-type gearboxes on performance and dimensions. Besides, we can also offer replacements to Rexroth, Brevini, RR, O&K, Tejin, NACHI, KYB, Fairfield, or Sauer, according to unique demands and design. Our planetary gearbox’s applications in a wide area, mining machinery, construction machinery, engineering machinery, shipbuilding, agricultural machinery, and light industry. Our products have been supplied to some first-class heavy machinery manufacturers in China, such as SANY, ZOOMLION, XCMG, etc. We have also cooperated with some military industry factories and institutes.
We have the most advanced testing equipment, such as a spectrum analyzer, tensile strength tester, impact value tester, hardness tester, magnetic particle flaw detector, sand blasting machine, and heat treatment equipment for the detection of the chemical composition of rubber materials. In addition, the precision machining workshop has advanced equipment: 23 CNC lathes, 10 vertical CNC boring and milling machines imported from Korea and 1 horizontal boring and milling center, 2 ordinary milling machines, 2 general lathes, 1 grinder, 10 drilling machines, and taps, 2 semi-automatic saws, 1 coordinate measuring machine, 1 projector, 1 processing surface quality testing machine, 1 mahr altimeter. We controll the tolerance of our products below 0.01mm.
