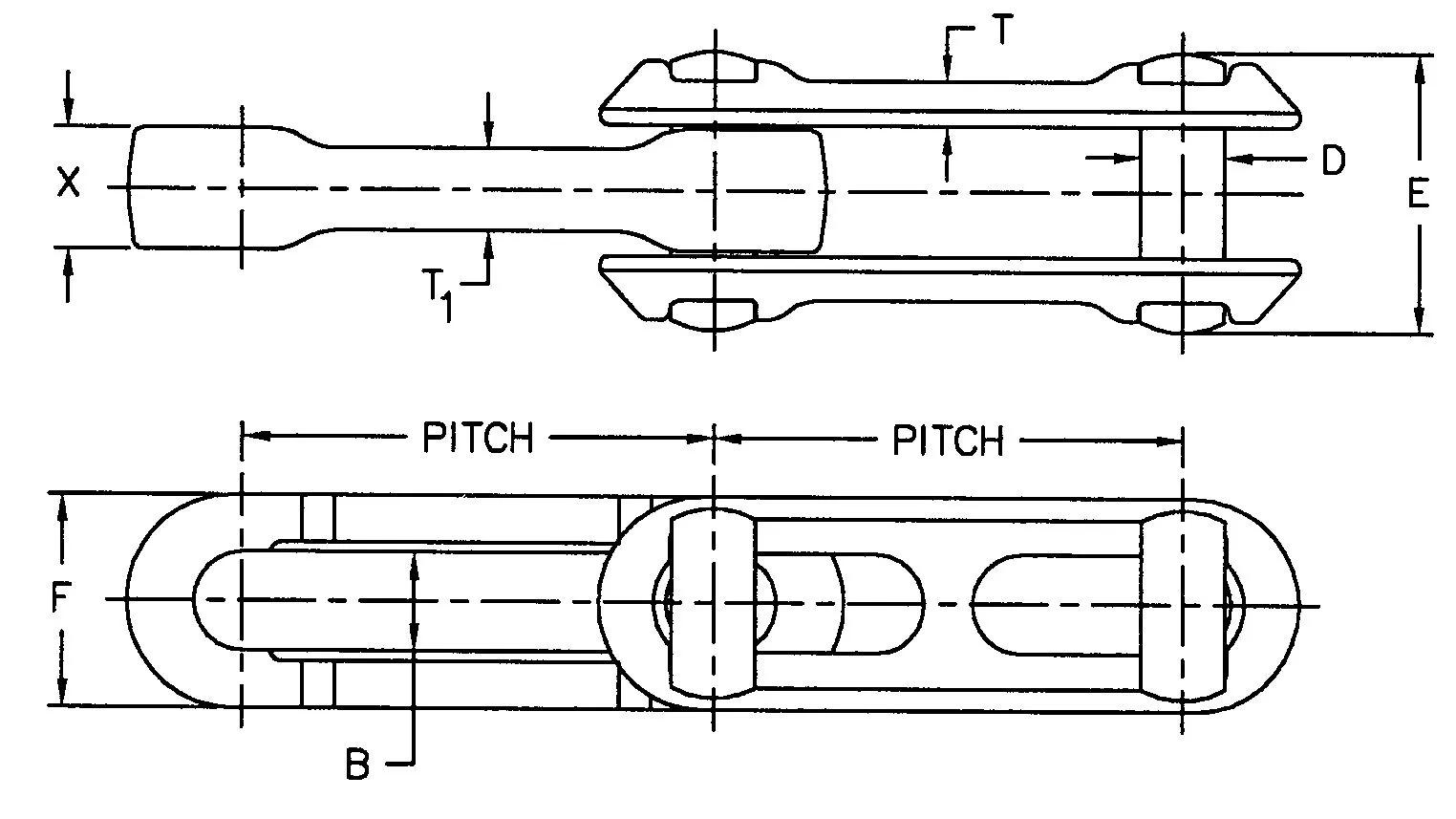

Bar Loop Chains With T Head Pin Regular Type Rivetless Drop Forged Chain
Regular Type Rivetless Drop Forged Chain
The Regular Type is furnished with only the T-head pins heat treated. These pins are symmetrical and may be reversed when worn.
A-L CHAIN NO.
|
PITCH IN INCHES
|
LINKS PER
10 FEET |
WEIGHT PER FOOT LBS.
|
AVERAGE ULTIMATE STRENGTH—LBS.
Head Treated Steel* |
CHAIN CONSTRUCTION
|
|
3.031″ PITCH CHAIN
|
X348
|
3.031
|
40
|
2.2
|
24,000
|
Special Pin
|
4.031″ PITCH CHAIN
|
X458
|
4.031
|
30
|
3.2
|
48,000
|
Special Pin
|
468
|
4.031
|
30
|
7.5
|
70,000
|
Special Pin
|
|
6.031″ PITCH CHAIN
|
X658
|
6.031
|
20
|
2.6
|
48,000
|
Special Pin
|
X678
|
6.031
|
20
|
6.7
|
85,000
|
Special Pin
|
|
698
|
6.031
|
20
|
11.4
|
130,000
|
Special Pin
|
|
9.031″ PITCH CHAIN
|
998
|
9.031
|
13.3
|
9.0
|
130,000
|
Special Pin
|
9118
|
9.031
|
13.3
|
16.0
|
220,000
|
Special Pin
|
|
9148
|
9.031
|
13.3
|
27.0
|
300,000
|
Special Pin
|
|
3.031″ PITCH CHAIN
|
S348
|
3.031
|
40
|
2.4
|
24,000
|
Riveted
|
4.031″ PITCH CHAIN
|
S458
|
4.031
|
30
|
3.5
|
48,000
|
Riveted
|
4.031″ PITCH CHAIN
|
S468
|
4.031
|
30
|
7.9
|
80,000
|
Riveted
|
9.031″ PITCH CHAIN
|
S9118
|
9.031
|
13.3
|
20.4
|
220,000
|
Riveted
|
Rivet free fall forging chains are considered to be one of the most powerful chains ever made and are widely used in many industries. Since the material does not tend to pack in its open structure, rivetless drop forged chains are widely used in flying conveyors. Its design allows both horizontal and vertical running on irregular routes, making it particularly suitable for trolley delivery services.
The chain features include maximum strength without excessive weight and resistance to elongation even after extensive handling.
