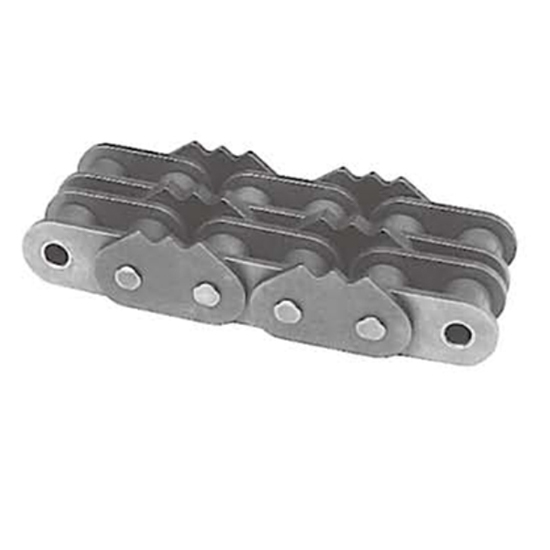

REP series sharp top chains
Application
- Conveyor Systems: Used in various types of conveyor systems to handle materials efficiently and with minimal slippage.
- Power Transmission: Ideal for applications where robust and precise power transmission is critical, such as in heavy machinery and automotive systems.
- Food Processing: Often used in the food industry where minimizing contamination and maintaining cleanliness is crucial.
- Textile Machinery: Utilized in textile manufacturing where precise control and durability are required.

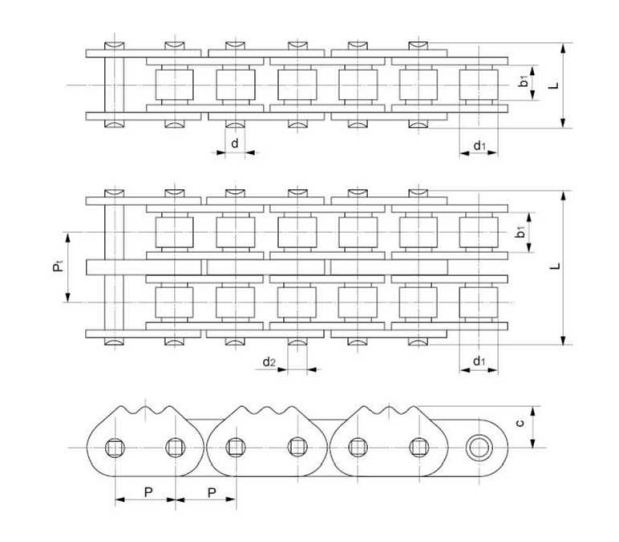

Diameter Data
chain
NO. |
Pitch
P mm |
diameter of Roller d1 mm | Inner Width of Inner Link b1(mim) mm | diameter of Bearing d2 mm | Length of Pin L
mm |
Row
d1stance Pt mm |
Height of Tooth C
mm |
Tensile Strength Q(min) KN | Weight per Meter
q kg/m |
80-1-5PEP | 25.4 | 15.9 | 15.93 | 7.92 | 32.5 | 35.76 | 17.35 | 69 | 3.30 |
80-2-5PEP | 25.4 | 15.9 | 15.93 | 7.92 | 61.5 | 29.29 | 17.35 | 138 | 6.42 |
80H-2-5PEP | 25.4 | 15.9 | 15.93 | 7.92 | 64.8 | 29.29 | 17.35 | 138 | 7.23 |
100-2-5PEP | 31.75 | 19.05 | 19.05 | 9.52 | 75.2 | 35.76 | 20.69 | 173.5 | 9.73 |
100-1-PEP | 31.75 | 19.05 | 19.05 | 9.52 | 39.5 | 35.76 | 17.35 | 86.6 | 4.88 |
