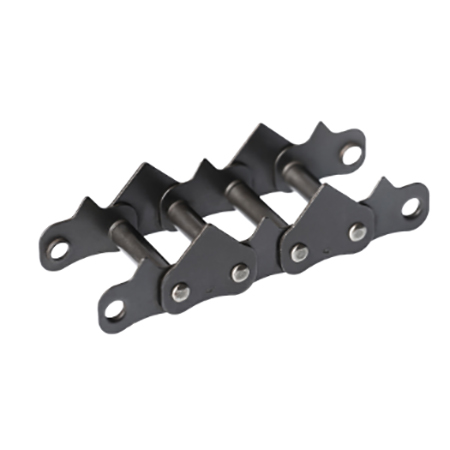

Rice harvester chains S3358T-5K151 S3358T-3653 S3358T-762 S3322T-63203 S3330T-66103
Rice harvester chains S3358T S3322T S3330T

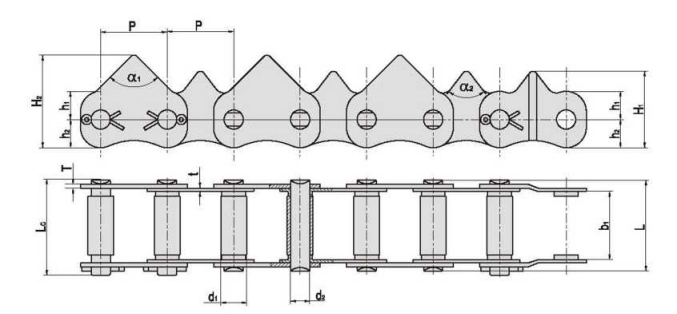

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin
diameter |
Pin length | Tooth
angle |
Plate
dimension |
Plate thickness | Ultimate tensile strength | Average tensile strength | ||||
P | d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
α1/α2 | h1 | h2 | H1 | H2 | t/T
max |
Q
min |
Qo | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||
S3358T-5K151 | 33 | 12.8 | 58 | 9.5 | 69.9 | 73.1 | 90°/75° | 15 | 13 | 38 | 46 | 1.6/2.03 | 19.62 | 22.5 |
S3358T-3653 | 33 | 12.8 | 58 | 9.5 | 69.9 | 73.1 | 90°/90° | 16 | 12 | 38 | 48 | 1.6/2.03 | 19.60 | 22.5 |
S3358T-762 | 33 | 12.8 | 58 | 9.5 | 69.9 | 73.1 | 90°/75° | 15 | 13 | 38 | 46 | 1.6/2.03 | 19.60 | 22.5 |

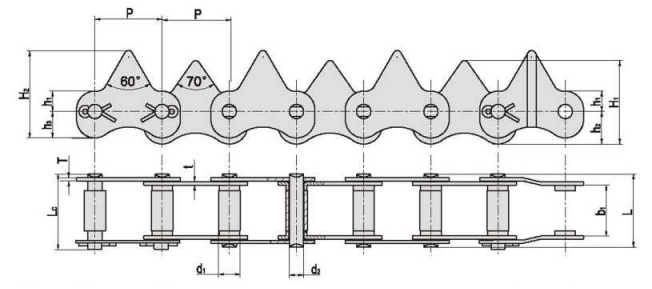

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin
diameter |
Pin length | Plate
dimension |
Plate thickness | Ultimate tensile strength | Average
tensile strength |
|||||
P | d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
h1 | h2 | H1 | h3 | H2 | t/T
max |
Q
min |
Qo | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | |
S3322T-63203 | 33 | 10.1 | 22 | 7.0 | 33.0 | 35.7 | 10 | 16 | 36 | 13 | 43 | 1.6/2.0 | 19.6 | 23.0 |
S3330T-66103 | 33 | 10.1 | 30 | 7.0 | 40.9 | 43.7 | 10 | 16 | 36 | 13 | 43 | 1.6/2.0 | 19.6 | 23.0 |
● Products are widely used in semi-feeding rice harvesting equipment.
●Using high-quality raw materials, high-efficiency process equipment, advanced heat treatment, shot peening treatment on the surface of the chain plate, and high-quality anti-rust oil on the entire chain, the product quality meets the requirements of users.
