Rice harvester chains S3558T-48001 S3558T-48001Y1 S3558T-48002
●Rice harvester chains include 415 series lifting chains with finger attachments and tine feeding chains with pitches of 33mm and 35mm;
● Products are widely used in semi-feeding rice harvesting equipment.
●Using high-quality raw materials, high-efficiency process equipment, advanced heat treatment, shot peening treatment on the surface of the chain plate, and high-quality anti-rust oil on the entire chain, the product quality meets the requirements of users.

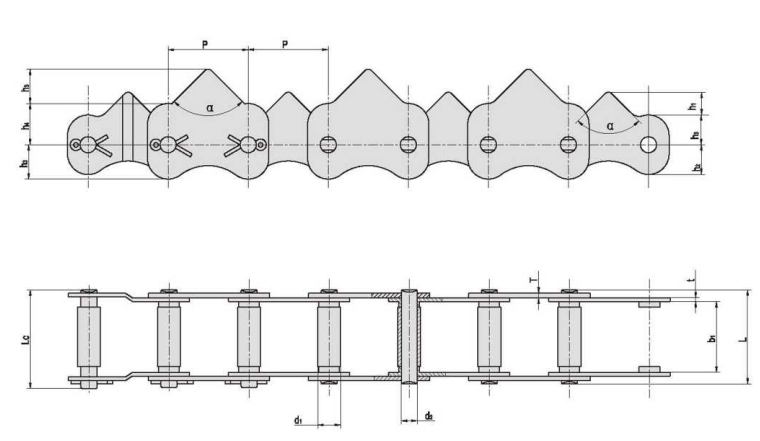

Diameter Data
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin
diameter |
Pin length | Tooth
angle |
plate
dimension |
Plate thickness | Ultimate tensile strength | Average tensile strength | ||||
P | d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
α | h1 | h2 | h3 | h4 | t/T
max |
Q
min |
Qo | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||
S3558T-48001 | 35 | 10.1 | 58 | 7.0 | 69.4 | 72.0 | 90° | 10 | 13 | 15 | 18 | 1.6/2.03 | 19.6 | 23.0 |
S3558T-48001Y1 | 35 | 12.6 | 58 | 10.0 | 69.4 | 71.2 | 90° | 10 | 13 | 15 | 18 | 1.6/2.03 | 19.6 | 23.0 |
S3558T-48002 | 35 | 12.8 | 58 | 7.0 | 69.4 | 72.0 | 90° | 10 | 13 | 15 | 18 | 1.6/2.03 | 19.6 | 23.0 |
