Rivetless Drop Forged Chain With T Head Pin S Type S348 S458 S468 S9118
S Type S348 S458 S468 S9118 Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin</p>
S Type S348 S458 S468 S9118 Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin
Rivetless Drop Forged Chain (T Head Pin Chain) is highly regarded as one of the most robust chains ever developed and has found widespread application in many industries. Because materials do not tend to pack in its open structure, Rivetless Drop Forged Chain is used extensively for flight conveyors. Its design permits both horizontal and vertical operation over irregular routes, making it particularly adapt- able for trolley conveyor service. Special features of this chain include maximum strength without excessive weight, and resistance to lengthening even after the extensive operation.
|
 |

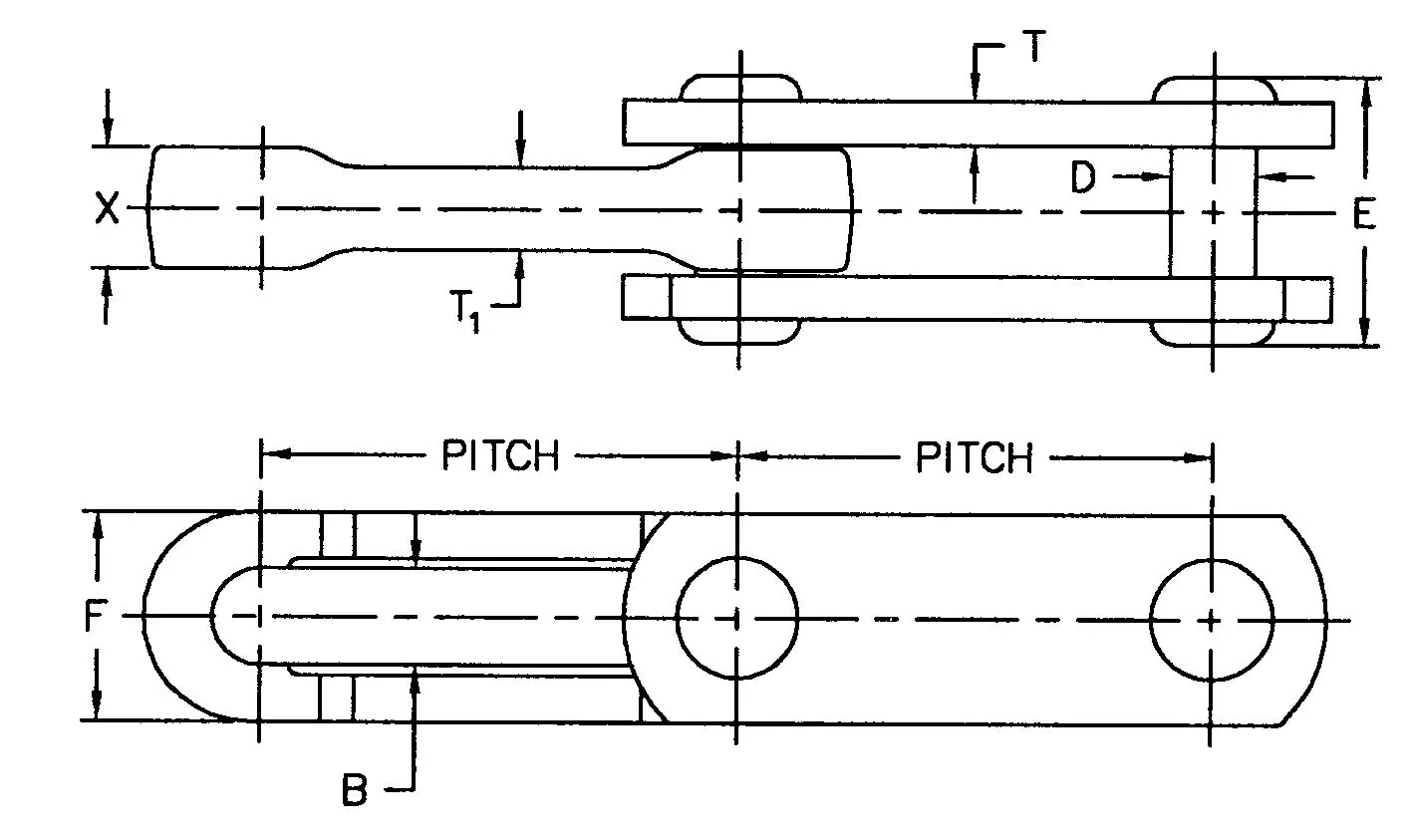

S-TYPE Barloop chain is manufactured with a standard rivet-less block link and fabricated steel sidebars. Barloop chains offer the advantage of a flat steel sidebar for welding attachments. The pins are a riveted style to keep the sidebars locked, eliminating the chance of the chain coming apart when slack is present and reducing wear between the pin and sidebar.
|
A-L CHAIN NO.
|
PITCH IN INCHES
|
LINKS PER
10 FEET |
WEIGHT PER FOOT LBS.
|
AVERAGE ULTIMATE STRENGTH—LBS.
Heat Treated Steel* |
CHAIN CONSTRUCTION
|
|
|
3.031″ PITCH CHAIN
|
X348
|
3.031
|
40
|
2.2
|
24,000
|
Special Pin
|
|
4.031″ PITCH CHAIN
|
X458
|
4.031
|
30
|
3.2
|
48,000
|
Special Pin
|
|
468
|
4.031
|
30
|
7.5
|
70,000
|
Special Pin
|
|
|
6.031″ PITCH CHAIN
|
X658
|
6.031
|
20
|
2.6
|
48,000
|
Special Pin
|
|
X678
|
6.031
|
20
|
6.7
|
85,000
|
Special Pin
|
|
|
698
|
6.031
|
20
|
11.4
|
130,000
|
Special Pin
|
|
|
9.031″ PITCH CHAIN
|
998
|
9.031
|
13.3
|
9.0
|
130,000
|
Special Pin
|
|
9118
|
9.031
|
13.3
|
16.0
|
220,000
|
Special Pin
|
|
|
9148
|
9.031
|
13.3
|
27.0
|
300,000
|
Special Pin
|
|
|
3.031″ PITCH CHAIN
|
S348
|
3.031
|
40
|
2.4
|
24,000
|
Riveted
|
|
4.031″ PITCH CHAIN
|
S458
|
4.031
|
30
|
3.5
|
48,000
|
Riveted
|
|
4.031″ PITCH CHAIN
|
S468
|
4.031
|
30
|
7.9
|
80,000
|
Riveted
|
|
9.031″ PITCH CHAIN
|
S9118
|
9.031
|
13.3
|
20.4
|
220,000
|
Riveted
|
 |
 |
| X-TYPE: X-Type is furnished with all components heat-treated and is designed to have increased flexibility, transverse strength, and better operating performance. | REGULAR TYPE: Regular Type is furnished with only the T-head pins heat treated. These pins are symmetrical and may be reversed when worn.56 |
