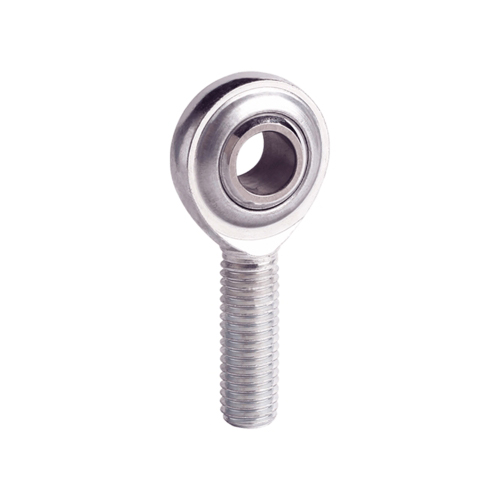

Rod Ends Bearing CM Maintenance required, inch dimensions Rod Ends CM,CM..S,CM..C
– Rod body is pressed around inner ring. – Lubricating hole or grease nipple isn’t available for the sizes marked “*”.When grease nipple is required for other sizes please use the sign CLM..C. – If assembling with rod, please add suffix “S” , e.g.CM 8S. – Load ratings only apply to rod ends without grease nipple. – For left-hand thread, please add suffix “L” ,e.g.CML 8. – All with turn part. Material and surface treatments: – Body: medium carbon steel 45, zinc plating; steel ball:bearing steel with hard chrome plating. – Body: stainless steel 304,stainless steel 303 or stainless steel316 is optional with surface passivation. Steel ball:alternative stainless steel 440C. |
Detail
Part No. |

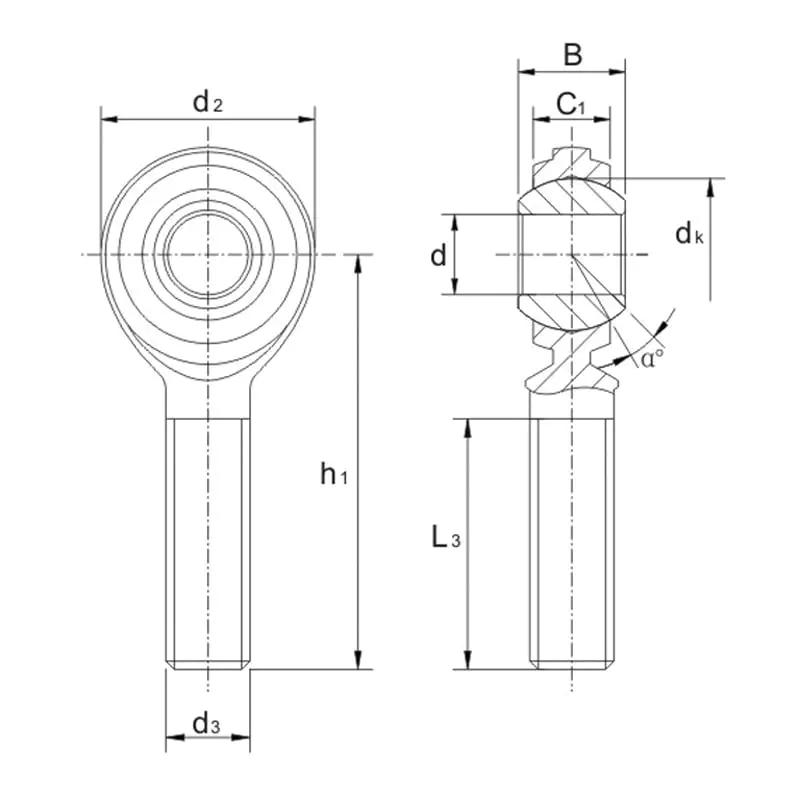

Rod Ends Bearing CM Dimensions |
Load ratings | Weight | ||||||||
d | B | C1 | h1 | d2 | dk | L3
min |
d3
3A |
a
≈ |
Kg≈ | ||
CM3* | 0.1900 | 0.312 | 0.234 | 1.250 | 0.625 | 0.437 | 0.750 | 10-32 | 10 | 5.355 | 0.014 |
CM4* | 0.2500 | 0.375 | 0.250 | 1.562 | 0.750 | 0.500 | 1.000 | 1/4-28 | 13.5 | 9.839 | 0.018 |
CM5* | 0.3125 | 0.437 | 0.312 | 1.875 | 0.875 | 0.625 | 1.250 | 5/16-24 | 11 | 15.910 | 0.032 |
CM6 | 0.3750 | 0.500 | 0.359 | 1.938 | 1.000 | 0.719 | 1.250 | 3/8-24 | 11 | 22.542 | 0.050 |
CM7 | 0.4375 | 0.562 | 0.406 | 2.125 | 1.125 | 0.812 | 1.375 | 7/16-20 | 10.5 | 28.223 | 0.068 |
CM8 | 0.5000 | 0.625 | 0.453 | 2.438 | 1.312 | 0.937 | 1.500 | 1/2-20 | 10 | 37.087 | 0.109 |
CM10 | 0.6250 | 0.75 | 0.484 | 2.625 | 1.500 | 1.125 | 1.625 | 5/8-18 | 13 | 43.203 | 0.163 |
CM12 | 0.7500 | 0.875 | 0.593 | 2.875 | 1.750 | 1.312 | 1.750 | 3/4-16 | 12 | 63.193 | 0.259 |
