Rotary Mowers Gearboxes – Replacement of Comer Code LF-140J/LF-140A

The rotary mower gearbox LF-140J is a gearbox designed for use in rotary mowers. Rotary mowers are commonly used in agricultural applications, particularly for cutting grass and other vegetation. The rotary mower gearbox LF-140J is made of high-quality materials and is built to withstand the rigors of everyday use. The rotary mower gearbox features a 1:1.93 gear ratio, which provides plenty of power to the mower’s blade. It also has a 6-spline input shaft and a 15-spline output shaft, which makes it compatible with a variety of different mowers. The rotary mower gearbox LF-140J is a reliable and durable product that is sure to provide years of trouble-free service.

Description

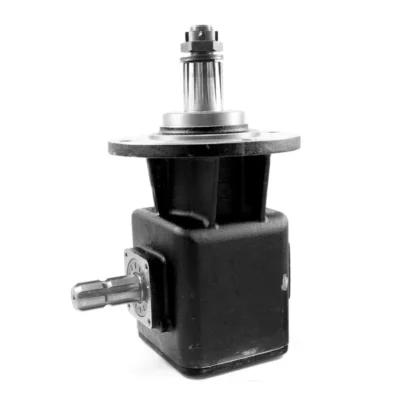

Rotary Mower Gearbox – Replacement of Comer Code LF-140J (1:1.93)

The rotary mower gearbox LF-140J is a gearbox designed for use in rotary mowers. Rotary mowers are commonly used in agricultural applications, particularly for cutting grass and other vegetation. The rotary mower gearbox serves as a power transmission device for the rotary mower.

Gearbox LF-140J is making of high-quality materials and is built to withstand the rigors of everyday use. The rotary mower gearbox features a 1:1.93 gear ratio, which provides plenty of power to the mower’s blade. It also has a 6-spline input shaft and a 15-spline output shaft, which makes it compatible with a variety of different mowers. The rotary mower gearbox LF-140J is a reliable and durable product that is sure to provide years of trouble-free service.

rotary mower gearbox LF-140J

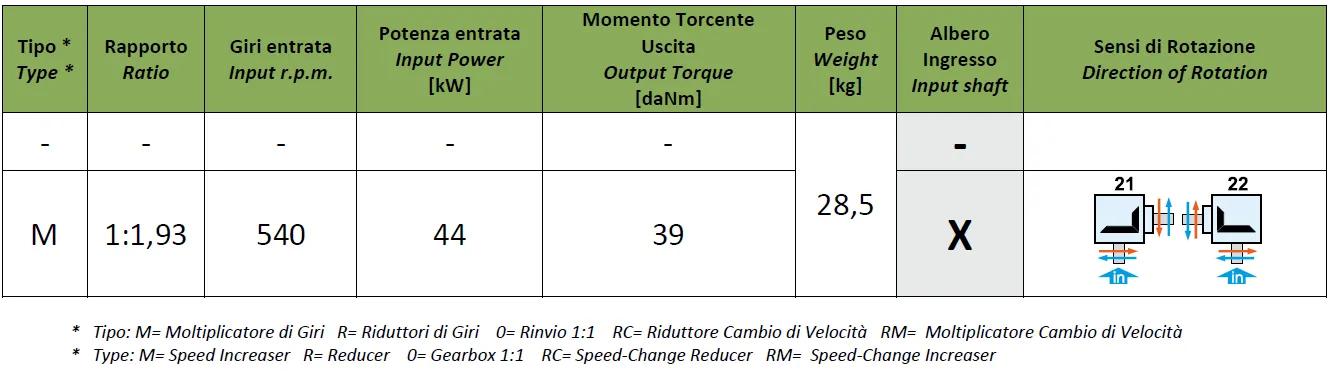

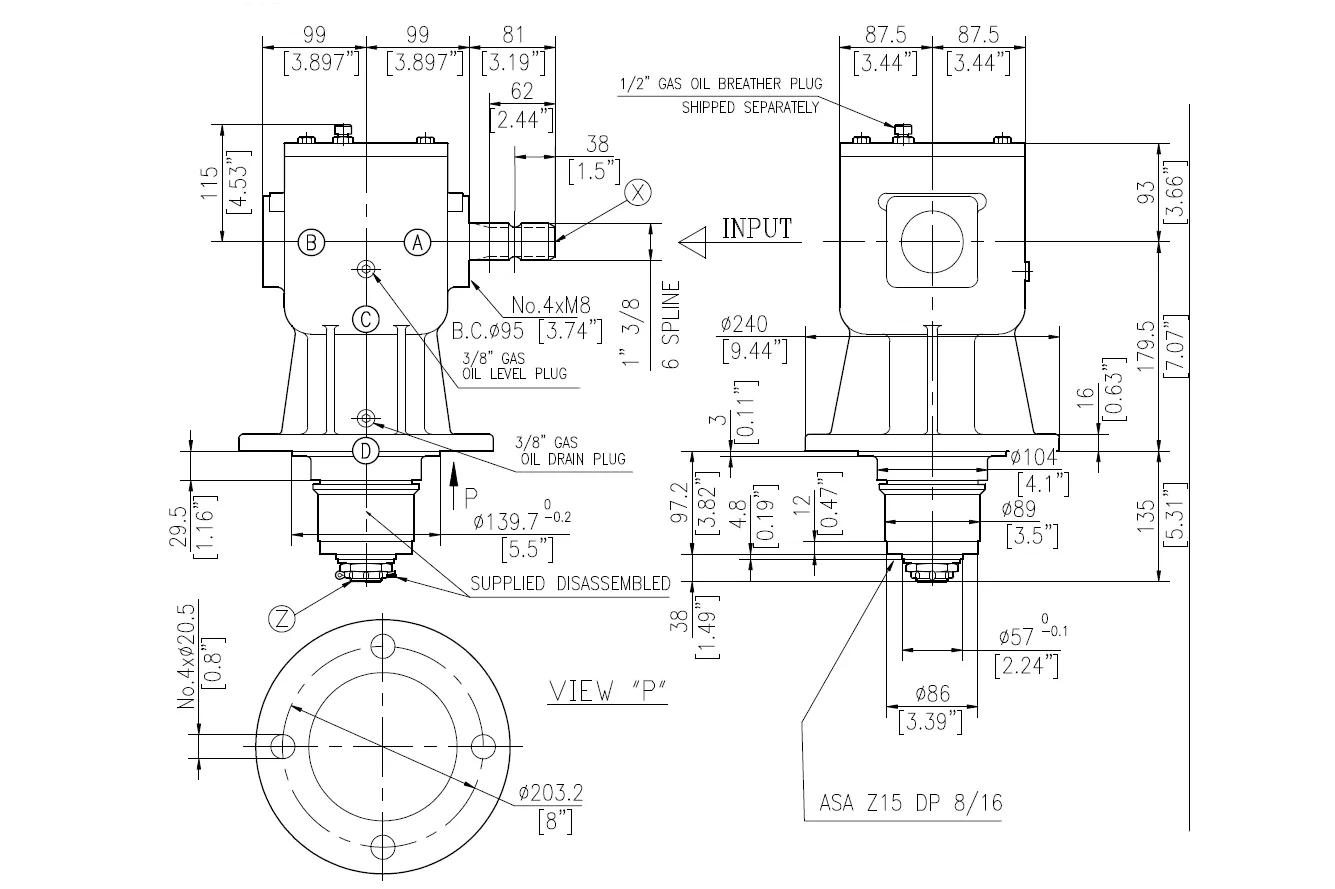

Specifications of Rotary Mower Gearbox LF-140J

rotary mower gearbox LF-140J
Product Description
Rotary Mower Gearbox – Replacement of Comer Gearbox LF-140J
Product details
  • Contact us for power at a different RPM
  • The gearbox is delivered without oil and must be filled before first use.
  • First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range
Mowers
Consists of
  • Gearbox
  • Without oil
Contains oil
No
Max. oil capacity
1.4 l
Max. oil change interval
500 h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GGG40
Weight
28.5 kg
Gear arrangement Increasing
3
Input power kW / HP Increasing
44 / 60 kW/HP
Input shaft Increasing
X
Output Torque DaNm Increasing
39 daNm
Ratio Increasing
1:1.93
Ratio Reducing
1.93: 1
Shaft X
1 3/8″ (6)
Shaft Z
ASA Z15 D.P. 8/16

LF-140J Rotary Mower Gearbox Parts

The rotary mower gearbox LF-140J is a complex piece of machinery that is made up of several parts that work together to ensure efficient power transmission and reliable performance. Here are some of the common parts that make up a rotary mower gearbox LF-140J:

Input Shaft: The input shaft is the component that receives the power from the PTO shaft and passes it on to the rotary mower gearbox’s internal gears.

Gears: The gears are the heart of the rotary mower gearbox, and they are responsible for transmitting the power from the input shaft to the output shaft. Gear sizes and teeth numbers can vary depending on the application for which the gearbox is intended.

Bearings: The bearings are located inside the rotary mower gearbox and support the shafts and gears, allowing them to turn smoothly.

Seals: Seals are used to prevent oil leakage from the rotary mower gearbox and to keep out dirt and other contaminants.

Output Shaft: The output shaft is responsible for transmitting the power from the rotary mower gearbox to the rotary mower’s blades or wheels.

Housing: The housing holds all of the internal components of the gearbox together and provides a protective shell for those components.

Oil Level Plug: This component allows the user to check the rotary mower gearbox’s oil level and add oil as needed.

Knowing the different parts of the rotary mower gearbox is essential for the maintenance and repair of the device. It is also important to use proper safety measures and follow the gearbox’s user manual while performing maintenance or repairs to avoid accidents.

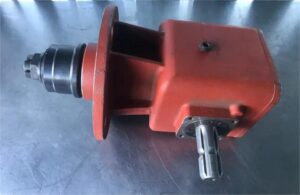

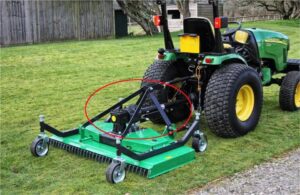

Advantages of Rotary Mower Gearbox LF-140J

The rotary mower gearbox LF-140J offers several advantages for those who use it in their agricultural or industrial applications. Here are some of the advantages of the rotary mower gearbox LF-140J:

  1. Efficient Power Transmission: The rotary mower gearbox LF-140J is designed to provide efficient power transmission, which means it can help to increase the overall efficiency of the rotary mower.
  2. Durable Design: The rotary mower gearbox LF-140J is made from high-quality materials, which makes it durable and able to withstand harsh operating conditions.
  3. Low Maintenance: The rotary mower gearbox LF-140J is designed for low maintenance, which means it requires less frequent maintenance and repair.
  4. High Gear Ratio: The rotary mower gearbox LF-140J has a high gear ratio of 1:1.93, which means it can provide greater torque and power to the rotary mower.
  5. Easy to Install: The rotary mower gearbox LF-140J is designed for easy installation, which means it can be quickly installed on the mower’s driveline without requiring any additional modifications.
  6. Versatile: The rotary mower gearbox LF-140J is compatible with a wide range of rotary mowers, which makes it a versatile choice for different applications.

Overall, the rotary mower gearbox LF-140J offers several advantages for those who use it in their agricultural or industrial applications. Its efficient power transmission, durable design, and low maintenance requirements make it a popular choice for rotary mowers in various applications.

Rotary Mower Gearbox LF-140J Common Uses

A Rotary Mower Gearbox is a critical component in a variety of agricultural and industrial applications. It is used to transmit power from the tractor’s PTO shaft to the mower blades, which makes it an essential component in any rotary mower. Rotary Mowers are the common uses of a rotary mower gearbox. A rotary mower is used to cut and maintain grass and vegetation. The mower blades are rotated by the gearbox that receives power from the tractor’s PTO shaft. A rotary mower gearbox is used in different types of mowers, such as finishing mowers, brush hogs, and flail mowers.

Rotary Mower Gearbox Replacement Precautions

Replacing a rotary mower gearbox can be challenging and potentially dangerous if proper safety precautions are not taken. Here are some precautions to keep in mind when replacing a rotary mower gearbox:

  1. Disconnect Equipment: The first step when replacing a rotary mower gearbox is to disconnect the equipment from the PTO shaft. This will prevent any unexpected movement from the mower blades or other attachments.
  2. Secure the Equipment: Before replacing the rotary mower gearbox, make sure to secure the equipment in place to prevent it from moving or falling. Use blocks or other means to secure the mower deck or other equipment in place.
  3. Use Appropriate Tools: Use the appropriate tools when removing the old rotary mower gearbox and installing the new one. Improper tools can cause damage to the equipment or harm to the operator.
  4. Observe Safety Precautions: Wear protective gear such as gloves and safety glasses to prevent any injury from debris or moving parts. Make sure to turn off the engine and disconnect the spark plug before starting any work.
  5. Follow Manufacturer’s Guidelines: Follow the manufacturer’s guidelines when installing the replacement rotary mower gearbox. Improper installation can result in damage to the equipment or injury to the operator.
  6. Lubricate and Test: After installing the new rotary mower gearbox, lubricate it according to the manufacturer’s instructions and conduct a test run to ensure everything is operating correctly.

By following these precautions, you can ensure the safe and effective replacement of your rotary mower gearbox, leading to efficient and reliable equipment operation.

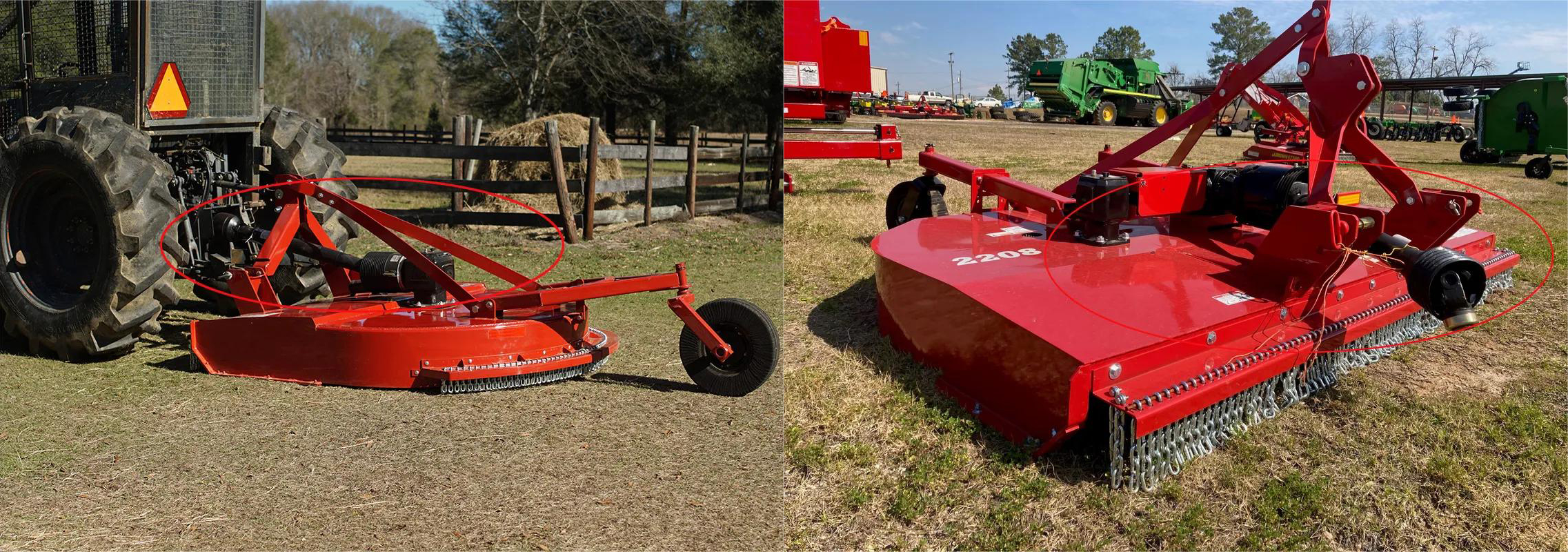

Agricultural PTO Shaft and Rotary Mower Gearbox

The Power Take-Off (PTO) shaft is a critical component in agricultural equipment such as tractors, and it plays an important role in delivering power from the tractor engine to operate other machinery, such as rotary mowers. The PTO shaft is connected to the tractor engine and rotates at high speed, transmitting rotational power to other equipment via a driveline that includes the rotary mower gearbox.

A rotary mower gearbox is essential in powering the rotary blades in a mower. It converts high-speed rotation from the PTO shaft to the low-speed and high-torque required to spin the mower blades. The rotary mower gearbox is mounted onto the rotary mower deck and is powered by the PTO shaft coming out of the tractor. The power is transferred from the PTO shaft, through the gearbox and driveshaft, and finally to the mower blades.

When utilizing a mower, one of the vital things to consider is the proper maintenance of the PTO shaft and the rotary mower gearbox. Regular maintenance helps improve performance, extend service life, and reduce the risk of downtime and repair costs. It includes greasing the PTO shaft and checking the gearbox oil level, among other things.

In summary, the PTO shaft and the rotary mower gearbox are crucial components in agricultural equipment that operate rotary mowers. Proper maintenance of both the PTO shaft and the gearbox is crucial to ensure efficient and reliable operation, leading to an extended service life of the equipment.

Rotary Mower Gearbox Oil Lubrication

The rotary mower gearbox is an essential component of the mower that helps in powering the rotary blades. It is crucial to ensure that it is properly lubricated with oil to ensure its smooth and efficient operation. Here are the steps to lubricate the rotary mower gearbox:

  1. Prepare the Gearbox: Before adding oil, make sure the mower is turned off and give the rotary mower gearbox sufficient time to cool. Also, ensure that the equipment is level so that the oil can fill the gearbox evenly.
  2. Check the Oil Level: Before adding any oil, check the oil level in the rotary mower gearbox. The oil level should be between the minimum and maximum marks on the dipstick. If the oil level is low, add the recommended oil to fill up to the required level.
  3. Check the Oil Viscosity: It is essential to use the recommended viscosity level of oil. Using the wrong viscosity may prevent proper lubrication of the rotary mower gearbox components, causing premature wear.
  4. Add the Oil: Slowly pour the oil into the fill hole of the gearbox. Use the level check plug to gauge the oil level. Do not overfill the rotary mower gearbox. Overfilling can cause oil to leak or aerate, which can lead to issues with lubrication and cooling.
  5. Inspect and Clean: Inspect the rotary mower gearbox and surrounding area for any oil leaks. Clean any drips or excess oil.
  6. Test the Rotational Movement: After oiling, start the mower and test the rotational movement of the blades to ensure smooth operation.

It is necessary to follow the manufacturer’s recommended oil type and viscosity for optimum performance and longevity of the rotary mower gearbox. Regularly inspecting the oil levels and changing the oil as recommended will help ensure the gearbox is always lubricated correctly.

We Also Provide Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearbox, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy rotary mower gearboxes, please get in touch with us.

Feed Mixer Gearbox Post Hole Digger Gearbox Agricultural Sprayer Gearbox Flail Mower Gearbox Cutter Bars Gearbox
Gearbox For Hay Tedders Rotary Mower Gearbox Rotary Cutter Gearbox Hydraulic Drive Gearbox Lawn Mower Gearbox
Fertilizer Spreader Gearboxes Agitators Gearbox For Sewage Angular Gearbox Irrigation Reels Gearbox Manure Spreader Gearbox
Micro Tiller Gearbox Parallel Gearbox Snowblower Gearbox Round Baler Gearbox Rotary Tiller Gearbox

Rotary Mower Gearbox Manufacturers & Suppliers

Our company is a prominent manufacturer of high-performance rotary mower gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom rotary mower gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing a rotary mower gearbox.

The first step in this procedure is to determine which sort of rotary mower gearbox is suitable for your application. We are one of the reputable rotary mower gearbox manufacturers and suppliers with years of expertise in farm equipment manufacturing and distribution. We provide high-quality agricultural equipment wholesale at a reasonable price. In addition, we also offer agricultural PTO shafts! Contact us now!
