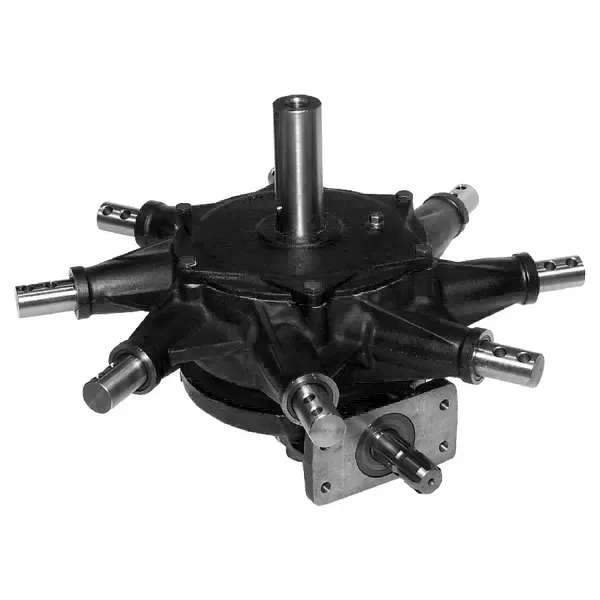

Rotary Rake Gearbox – Replacement of Comer Code K-789C
The rotary rake gearbox K-789C is a gearbox specifically made for use in rotary rakes, which are machines used in agriculture for gathering hay or other crops that have been cut from the field. The rotary rake gearbox K-789C is designed to provide efficient power transmission between the tractor and the rotary rake. It has a maximum torque of 390 Nm and is rated for the horsepower of up to 60 HP. This rotary rake gearbox has a gear ratio of 4.8:1 and is designed to work at a maximum speed of 540 RPM. It is also equipped with a friction disc slip clutch, which helps to protect the gearbox and the rest of the equipment from damage due to sudden loads or overloading.
Rotary Rake Gearbox – Replacement of Comer Code K-789C
The rotary rake gearbox K-789C is a gearbox specifically made for use in rotary rakes, which are machines used in agriculture for gathering hay or other crops that have been cut from the field. The rotary rake gearbox K-789C is designed to provide efficient power transmission between the tractor and the rotary rake. It has a maximum torque of 390 Nm and is rated for the horsepower of up to 60 HP. This rotary rake gearbox has a gear ratio of 4.8:1 and is designed to work at a maximum speed of 540 RPM. It is also equipped with a friction disc slip clutch, which helps to protect the gearbox and the rest of the equipment from damage due to sudden loads or overloading.
The rotary rake gearbox K-789C is made of high-grade materials and designed to withstand harsh operating conditions. It is also easy to install and maintain, making it an excellent choice for farmers and other agricultural professionals who are looking for a reliable and robust gearbox for their rotary rake equipment.

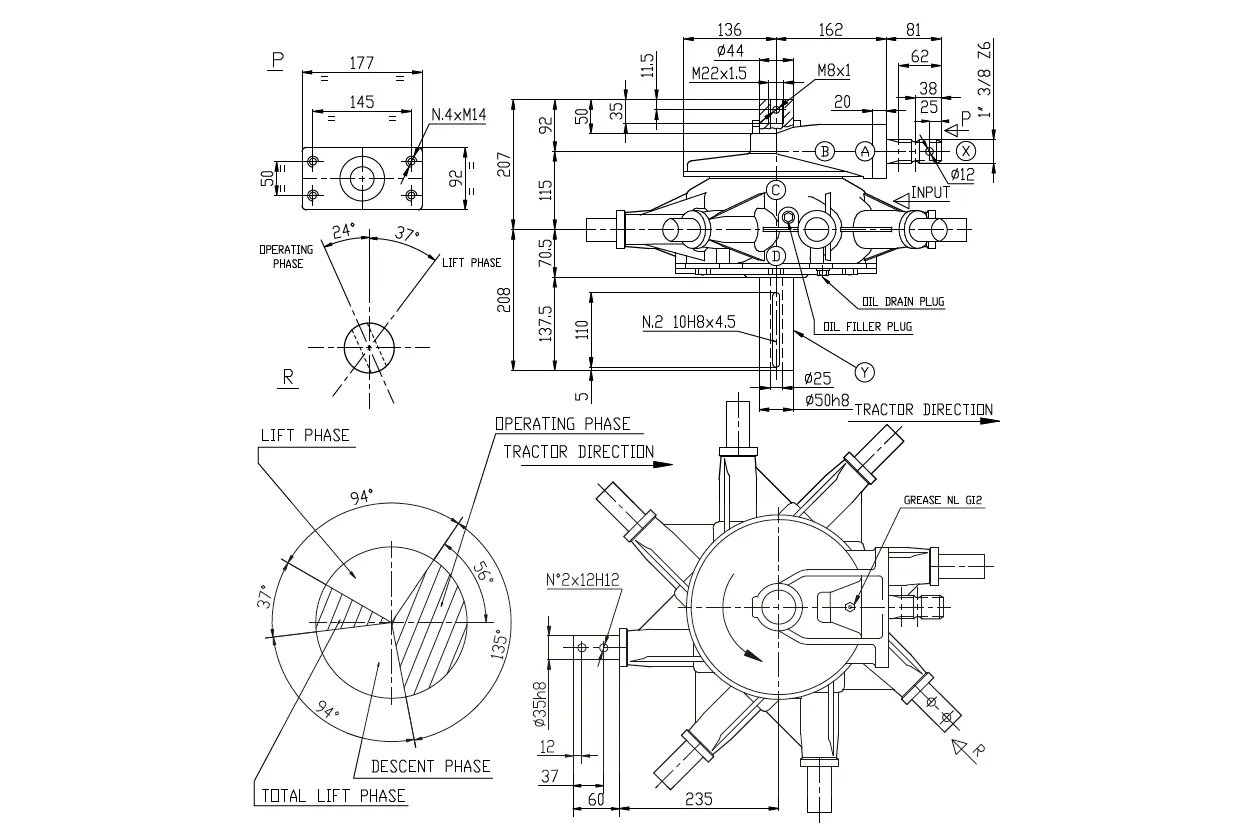

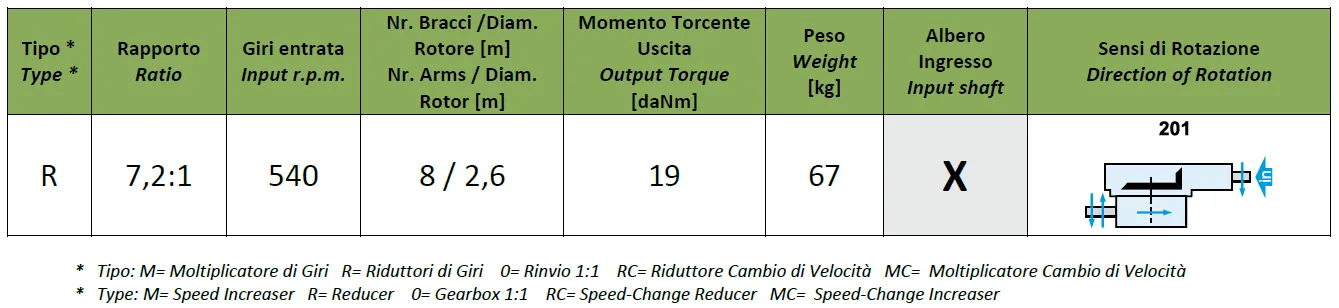

Specifications of Rotary Rake Gearbox K-789C
| Product Description |
Rotary Rake Gearbox – Replacement of Comer Gearbox K-789C
|
|---|---|
| Product details |
|
| Model |
K-789C
|
| Max. output torque |
190 nm
|
| Suitable for machine/vehicle brand |
|
| Contains oil |
No
|
| Oil SAE viscosity grade |
90EP
|
| Number of arms |
8
|
| Gear ratio |
7,2:1
|
| Input shaft |
1 3/8 Z6
|
| Shaft type |
1 x 1.3/8 (Z6)
|

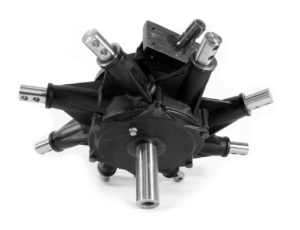

Features of Rotary Rake Gearbox K-789C
Sure, here are some of the common features of the rotary rake gearbox used in agricultural equipment:
(1) High torque transmission capability
(2) High-load carrying capacity
(3) Designed for low maintenance and long life
(4) Typically made of high-quality steel and other durable materials to withstand harsh outdoor conditions
(5) Designed to be oil-immersed for enhanced lubrication and cooling
(6) Equipped with a smooth, reliable clutch mechanism
(7) Easy to install and maintain
(8) Compatible with a variety of tractor models and hitch systems
(9) May be designed to integrate with other equipment, such as hay balers or mowers
Overall, the features of a rotary rake gearbox are geared towards providing efficient power transmission, durability, and ease of use for farmers and agricultural workers.
 |
 |

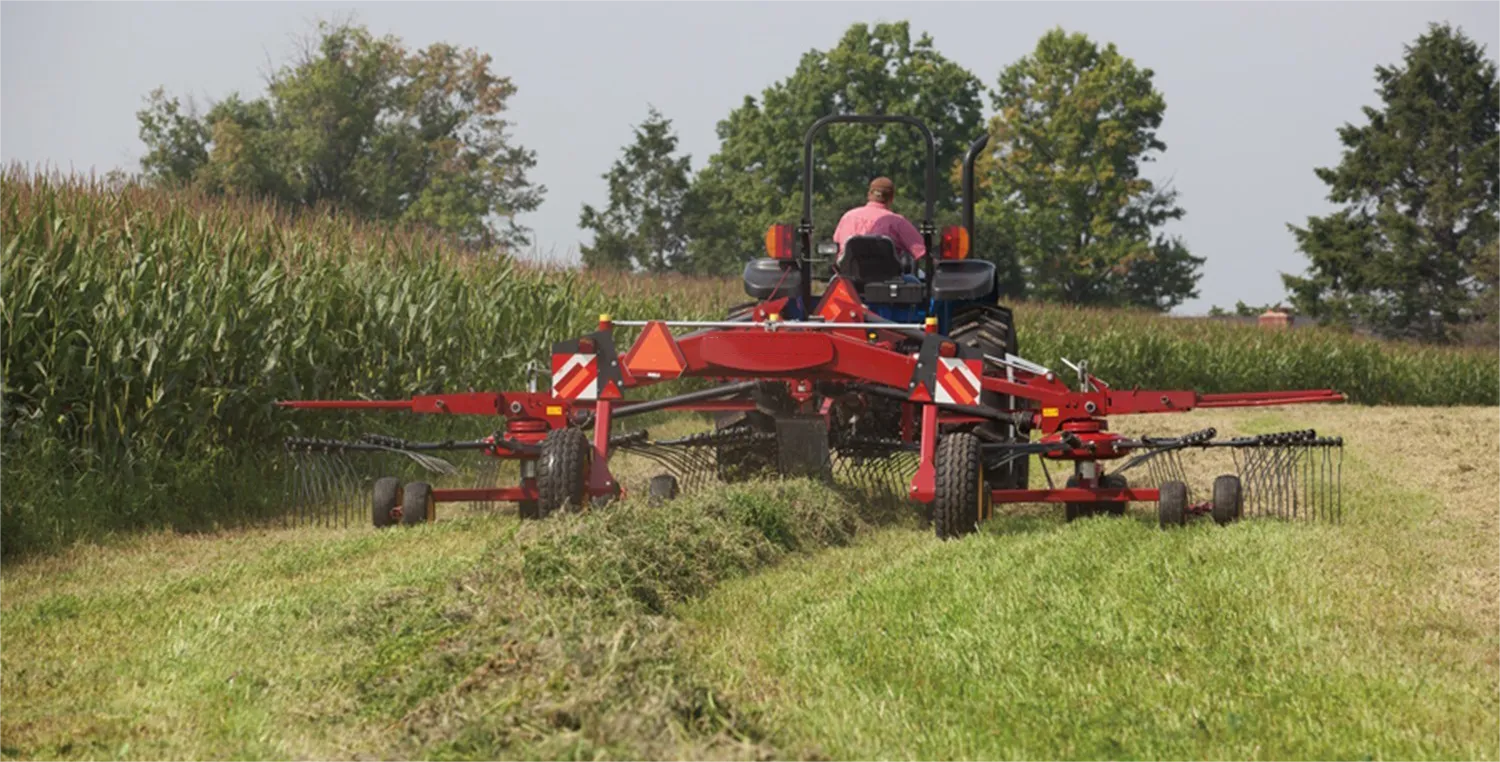

Where Are Rotary Rake Gearboxes Used?
Rotary rake gearboxes are commonly used in agricultural applications for the maintenance of hay fields and pastures. The rotary rake gearbox is an essential component of a rotary rake, which is used to gather and move hay into windrows for better drying and baling. These rotary rake gearboxes are also used in other industries, such as road maintenance and construction, where they can be used for grading and leveling soil or other materials. Overall, rotary rake gearboxes are used in any application that requires a machine to gather and move materials efficiently.
Rotary rake gearboxes are used in a variety of agricultural and industrial applications. Some of the other applications of rotary rake gearbox include:
Hay Raking: Rotary rake gearboxes are primarily used in hay raking applications to gather and move hay into windrows for easier baling.
Road Maintenance: Rotary rake gearboxes can be used for road maintenance, such as grading and leveling of dirt and gravel roads.
Construction: In the construction industry, rotary rake gearboxes are used for leveling and preparing sites for building construction.
Snow Removal: Rotary rake gearboxes can also be used in snow removal applications, such as clearing snow from roads and sidewalks.
Overall, rotary rake gearboxes are useful in any application that requires the gathering and movement of materials efficiently.
How to Choose the Right Rotary Rake Gearbox?
Choosing the right rotary rake gearbox can be a daunting task. Here are some factors to consider when selecting the right rotary rake gearbox for your needs:
Material to be raked: Consider the type and amount of material you will be raking. Different types of rotary rake gearboxes are designed for different materials and volumes. For instance, some rotary rake gearboxes are better suited for hay, while others are optimized for gravel, sand, or dirt.
Size of your implement: Ensure the rotary rake gearbox you select is appropriate for the size of your implement, such as your rake or baler. Choosing a gearbox that is too small can result in poor performance while choosing one that is too large can lead to unnecessary expense.
Speed: Different rotary rake gearboxes have different gear ratios, which can affect speed. Consider the speed requirements for your application, as well as the tractor’s horsepower, to ensure that you choose a gearbox that is appropriate for your specific needs.
Durability: Durability is also essential. Ensure that the rotary rake gearbox is made from high-quality materials that can withstand the rigors of your application. Look for gearboxes that are designed for heavy-duty use in demanding environments.
Cost: Cost is also important. Rotary rake gearboxes come in various price ranges. Consider your budget and compare the features and specifications of various gearboxes before making a purchasing decision.
In summary, consider the materials to be raked, and implement size, speed requirements, durability, and cost when choosing the right rotary rake gearbox for your needs.

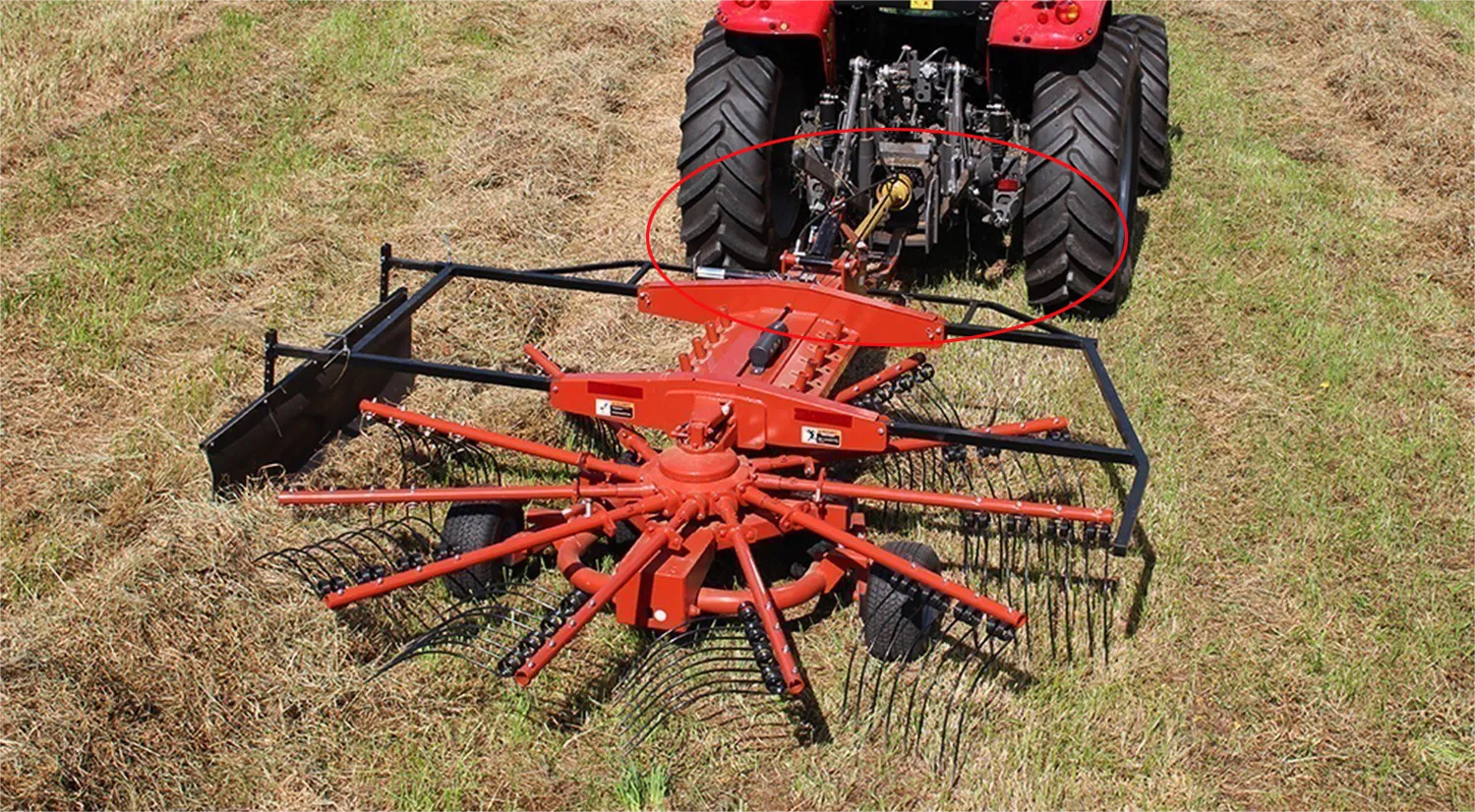

PTO Shaft for Rotary Rake Gearbox
A PTO shaft is an essential component that connects power from the tractor to the rotary rake gearbox. The PTO shaft is designed to transmit power from a tractor’s power take-off to the rotary rake gearbox, enabling it to operate.
The PTO shaft for a rotary rake gearbox is typically made of steel and is composed of two parts, the tractor side, and the implement side. The tractor side is connected to the tractor’s PTO shaft, while the implement side is connected to the rotary rake gearbox.
It is important to ensure that the PTO shaft for your rotary rake gearbox is the correct length and size to prevent equipment damage or injury to the operator. Proper maintenance and lubrication of the PTO shaft are also necessary to ensure its longevity and performance.
In conclusion, a quality PTO shaft is crucial for the efficient operation of a rotary rake gearbox, ensuring that the full power of the tractor is transmitted to the gearbox for optimal performance.
