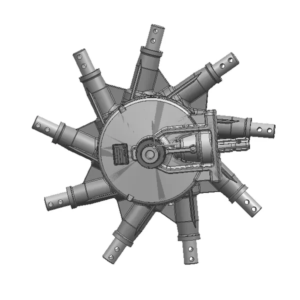

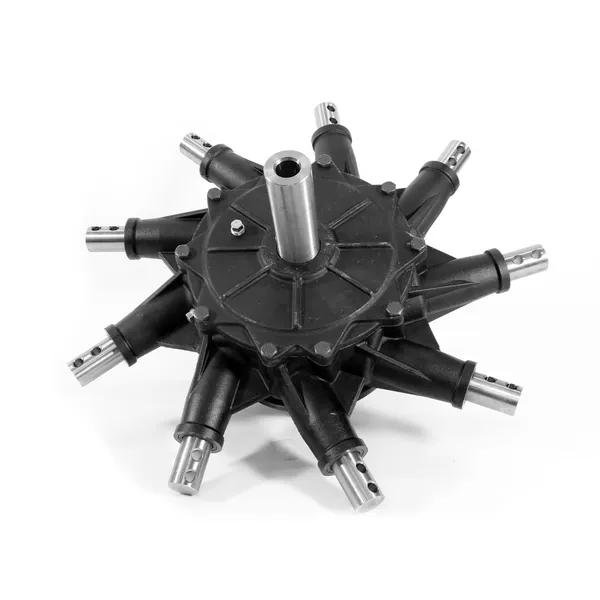

Rotary Rake Gearbox – Replacement of Comer Code K-791A 7.2:1
The rotary rake gearbox K-791A is a specific model of gearbox designed for use on rotary rakes. The rotary rake gearbox K-791A has several key features that make it a popular choice among farmers and agricultural professionals. Firstly, it is built with high-quality, hardened steel gears that ensure long-lasting durability and unmatched strength. Additionally, it comes equipped with an anti-friction bearing that provides smooth performance and helps to reduce wear and tear on the rotary rake gearbox.
Rotary Rake Gearbox – Replacement of Comer Code K-791A 7.2:1
The rotary rake gearbox K-791A is a specific model of gearbox designed for use on rotary rakes. The rotary rake gearbox K-791A has several key features that make it a popular choice among farmers and agricultural professionals. Firstly, it is built with high-quality, hardened steel gears that ensure long-lasting durability and unmatched strength. Additionally, it comes equipped with an anti-friction bearing that provides smooth performance and helps to reduce wear and tear on the rotary rake gearbox.
The rotary rake gearbox K-791A is capable of operating at high speeds due to its precision design and high-quality components. This makes it ideal for raking applications that require a constant and high-speed operation. It can be used with a wide range of implements and tractors, making it highly versatile and easily adaptable to various farming needs.
Overall, the rotary rake gearbox K-791A is a reliable and durable choice for those in need of a high-quality gearbox for their rotary rake. Its quality construction and performance make it a preferred choice of many farmers and agricultural professionals worldwide.
 |
 |

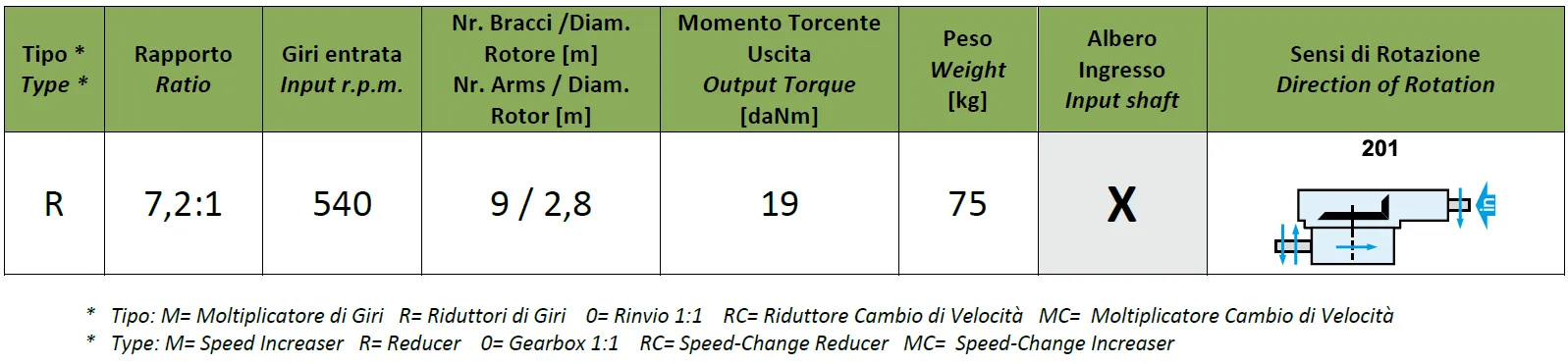

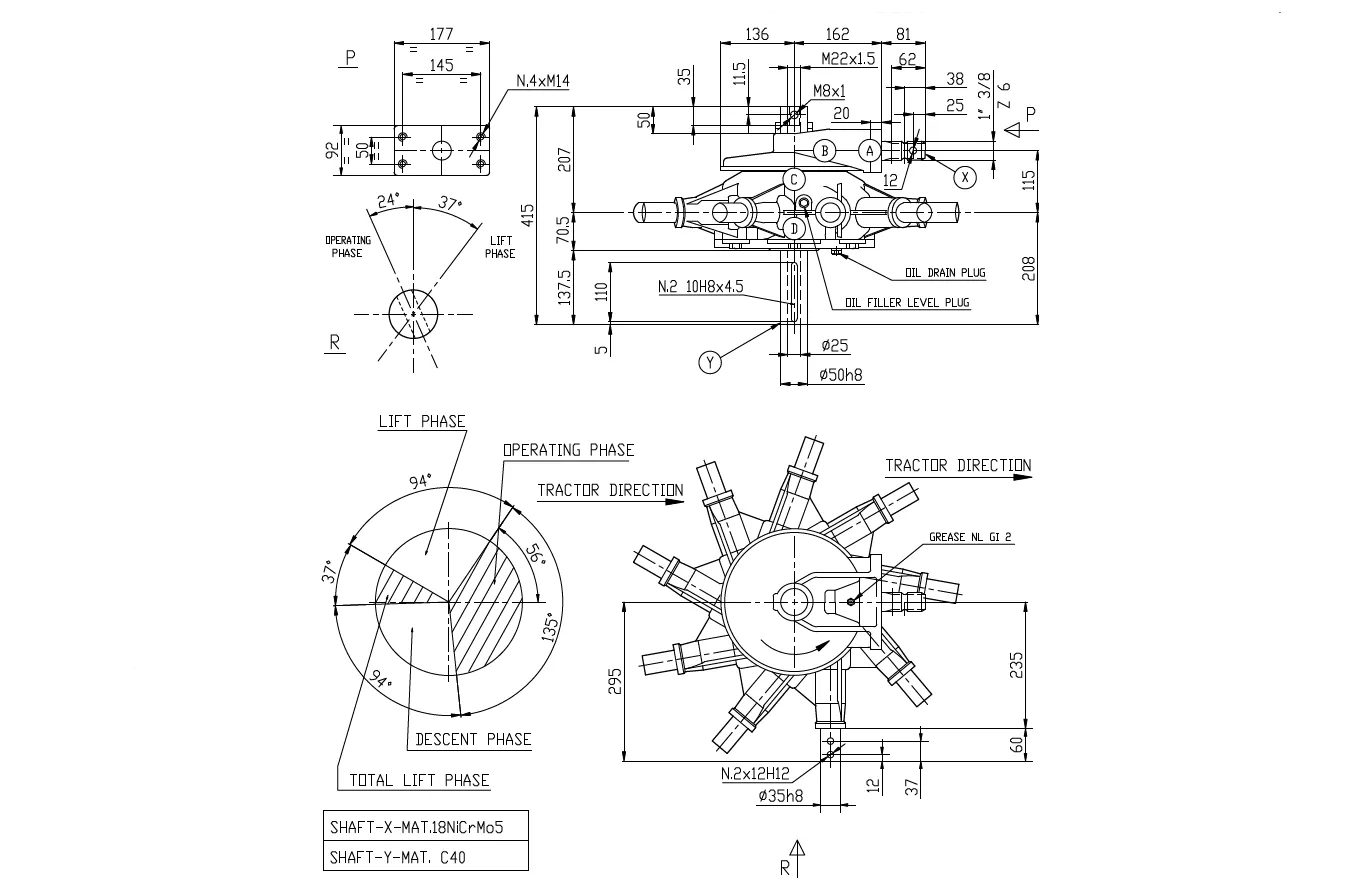

Specifications of Rotary Rake Gearbox K-791A (7.2:1)
| Product Description |
Rotary Rake Gearbox – Replacement of Comer Gearbox K-791A 7.2:1
|
|---|---|
| Product details |
|
| Model |
K-791A
|
| Max. output torque |
190 nm
|
| Suitable for machine/vehicle brand |
|
| Contains oil |
No
|
| Oil SAE viscosity grade |
90EP
|
| Number of arms |
9
|
| Gear ratio |
7,2:1
|
| Input shaft |
1 3/8 Z6
|
| Shaft type |
1 x 1.3/8 (Z6)
|
Benefits of Using a Rotary Rake Gearbox
There are several benefits of using a rotary rake gearbox in agricultural applications. Here are some of the key advantages:
Increased Efficiency: The rotary rake gearbox can increase efficiency by allowing the rake to operate at high speeds. This reduces the amount of time required to complete a task, which can increase productivity.
Consistent Raking Performance: The rotary rake gearbox ensures that the rake operates smoothly and consistently, resulting in a more uniform distribution of the material being raked. This can reduce the amount of waste and produce higher-quality output.
Improved Durability: The rotary rake gearbox is designed to withstand the rigors of heavy-duty use and is constructed from high-quality materials. This ensures that it will last longer and require less maintenance over time.
Versatility: The rotary rake gearbox is versatile and is capable of working with a wide variety of implements and tractors. This makes it an adaptable solution for various agricultural applications.
Reduced Wear and Tear: The rotary rake gearbox helps to minimize wear and tear on the rake by reducing friction and providing a smooth operation. This can extend the life of the rake and reduce the need for costly repairs and replacements.
Overall, using a rotary rake gearbox can help to improve efficiency, consistency, durability, and versatility in agricultural applications. By reducing wear and tear and improving performance, the gearbox can also provide a cost-effective solution for farmers and agricultural professionals.

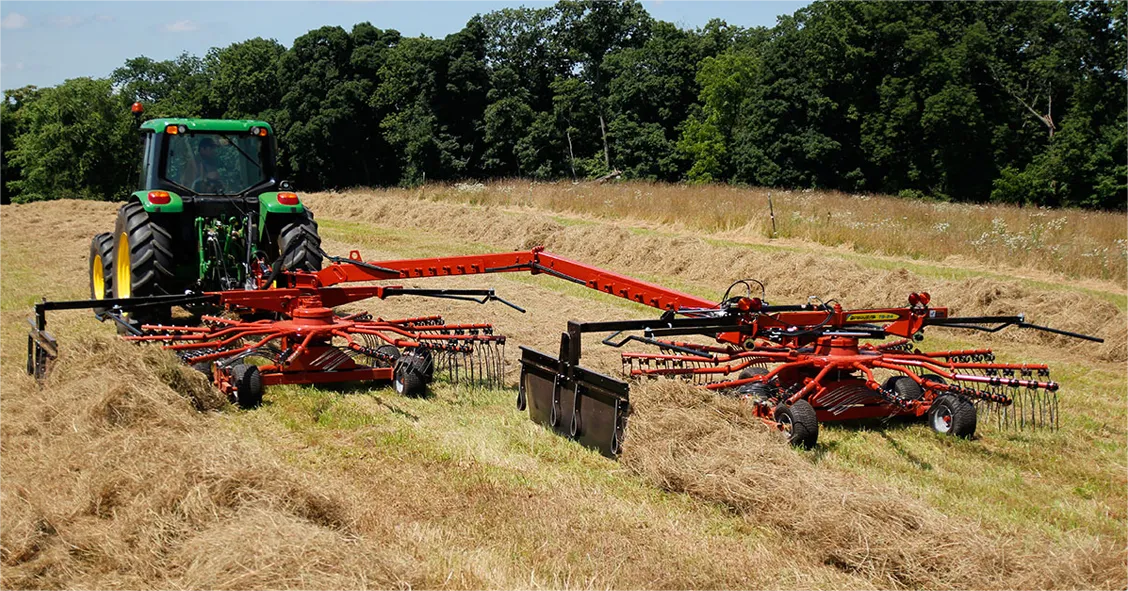

Applications of Rotary Rake Gearboxes
Rotary rake gearboxes are primarily used in the agriculture industry for raking and collecting hay, straw, and other plant materials. These gearboxes are essential in ensuring the efficient and effective collection of plant material, which can be used as animal feed or bedding. The following are the most common applications of rotary rake gearboxes:
Haymaking: Rotary rakes are used to collect and gather hay before it is baled. A rotary rake gearbox is used to power the rake, allowing it to collect more hay in a shorter time period.
Silage Production: Silage is used as a high-quality feed for livestock. Rotary rake gearboxes are used in the collection and transport of silage, ensuring that it does not spoil and maintains its nutritional quality.
Straw Collection: Straw is also an important agricultural product used as animal feed, bedding, and fuel. Rotary rake gearboxes are used in the collection and transport of straws to ensure efficient and effective collection.
Grass Collection: Rotary rake gearboxes can also be used to collect and transport grass, which is also used as animal feed.
Landscaping: Aside from agricultural purposes, rotary rake gearboxes can also be used in landscaping applications such as gathering leaves and debris.
Overall, rotary rake gearboxes are essential tools in the agriculture industry for the efficient collection of plant material, regardless of its end use.

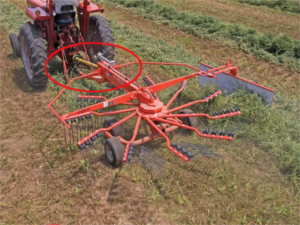

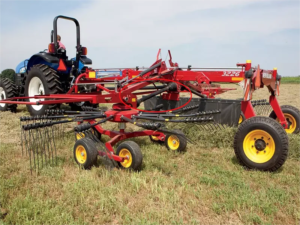

PTO Shaft and Rotary Rake Gearbox
A Power Take-Off (PTO) shaft is an essential component of a rotary rake gearbox. The PTO shaft is the mechanical device that transmits power from the tractor to the rotary rake gearbox, which in turn powers the rake to collect and gather hay or other plant materials.
The PTO shaft is connected to the tractor’s transmission and transfers the rotational energy to the gearbox through a drive shaft. The rotary rake gearbox then converts the rotational energy into linear motion, which powers the rake. Without the PTO shaft, the rotary rake gearbox would not be able to function.
It is important to match the appropriate PTO shaft to the rotary rake gearbox and tractor to ensure safe and efficient operation. The length, size, and operating speed of the PTO shaft must be compatible with the gearbox and tractor to prevent damage or injury.
Regular maintenance and inspection of the PTO shaft and rotary rake gearbox is also essential to prevent damage and ensure safe operation. Proper lubrication, alignment, and shielding of the PTO shaft can help to prevent accidents and prolong the life of both the shaft and the gearbox.
In summary, the PTO shaft is a critical component of a rotary rake gearbox, providing the power transmission for the effective collection of plant materials. Careful matching and maintenance of the shaft and gearbox are essential to ensure safe and efficient operation.
 |
 |
We also Offer Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearbox, corn headers gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy a fertilizer spreader gearbox, please get in touch with us.
 |
 |
 |
 |
 |
| Feed Mixer Gearbox | Post Hole Digger Gearbox | Agricultural Sprayer Gearbox | Flail Mower Gearbox | Cutter Bars Gearbox |
 |
 |
 |
 |
 |
| Gearbox For Hay Tedders | Rotary Mower Gearbox | Rotary Cutter Gearbox | Hydraulic Drive Gearbox | Lawn Mower Gearbox |
 |
 |
 |
 |
 |
| Fertilizer Spreader Gearboxes | Agitators Gearbox For Sewage | Angular Gearbox | Irrigation Reels Gearbox | Manure Spreader Gearbox |
 |
 |
 |
 |
 |
| Micro Tiller Gearbox | Parallel Gearbox | Snowblower Gearbox | Round Baler Gearbox | Rotary Tiller Gearbox |
