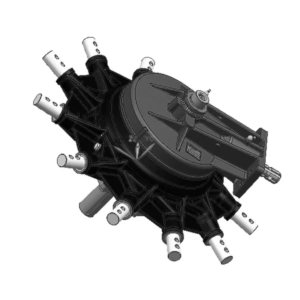

Rotary Rake Gearbox – Replacement of Comer Code K-792A 8.2:1

The rotary rake gearbox K-792A is a component that is commonly used in agricultural machinery, specifically in rotary rakes. It is designed to provide the gear reduction required to power the rotary rake and optimize its performance in terms of speed and power. The rotary rake gearbox K-792A is manufactured by leading agricultural gear manufacturers and is designed to be robust and durable, capable of withstanding the harsh conditions often encountered in agricultural applications. It has a high power density and offers a wide range of gear ratios to suit all rotary rake requirements.

Description

Rotary Rake Gearbox – Replacement of Comer Code K-792A 8.2:1

The rotary rake gearbox K-792A is a component that is commonly used in agricultural machinery, specifically in rotary rakes. It is designed to provide the gear reduction required to power the rotary rake and optimize its performance in terms of speed and power.

The rotary rake gearbox K-792A is manufactured by leading agricultural gear manufacturers and is designed to be robust and durable, capable of withstanding the harsh conditions often encountered in agricultural applications. It has a high power density and offers a wide range of gear ratios to suit all rotary rake requirements.

The rotary rake gearbox is typically mounted on the rotary rake and is driven by the PTO shaft of a tractor or similar equipment. It is designed to increase the torque and reduce the speed of the rotational output from the PTO shaft to match the ideal operating speed of the rotary rake.

The rotary rake gearbox K-792A is a vital component in many agricultural settings where efficient and reliable rotary rakes are required. It is important to ensure that the gearbox is correctly installed and maintained to enable optimal performance and protect against wear or damage.

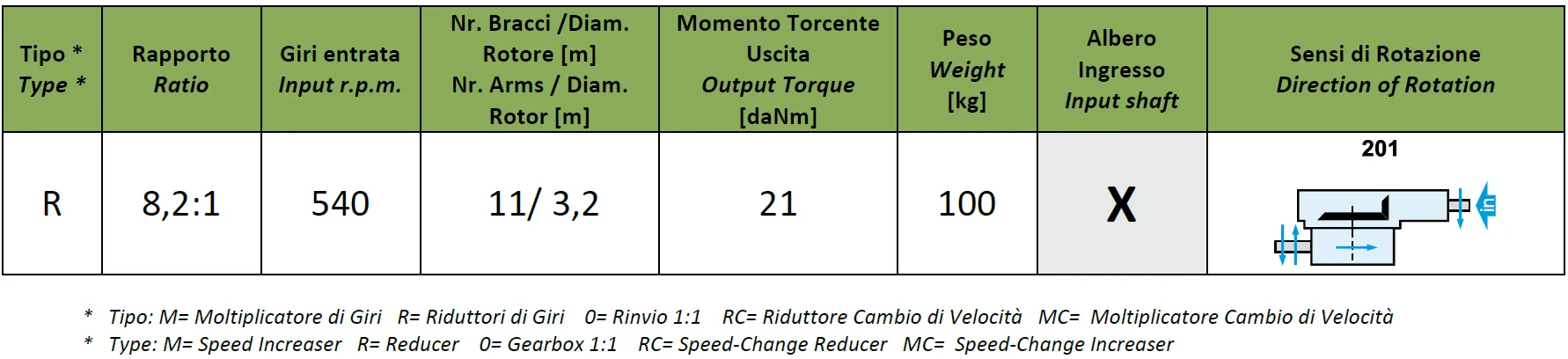

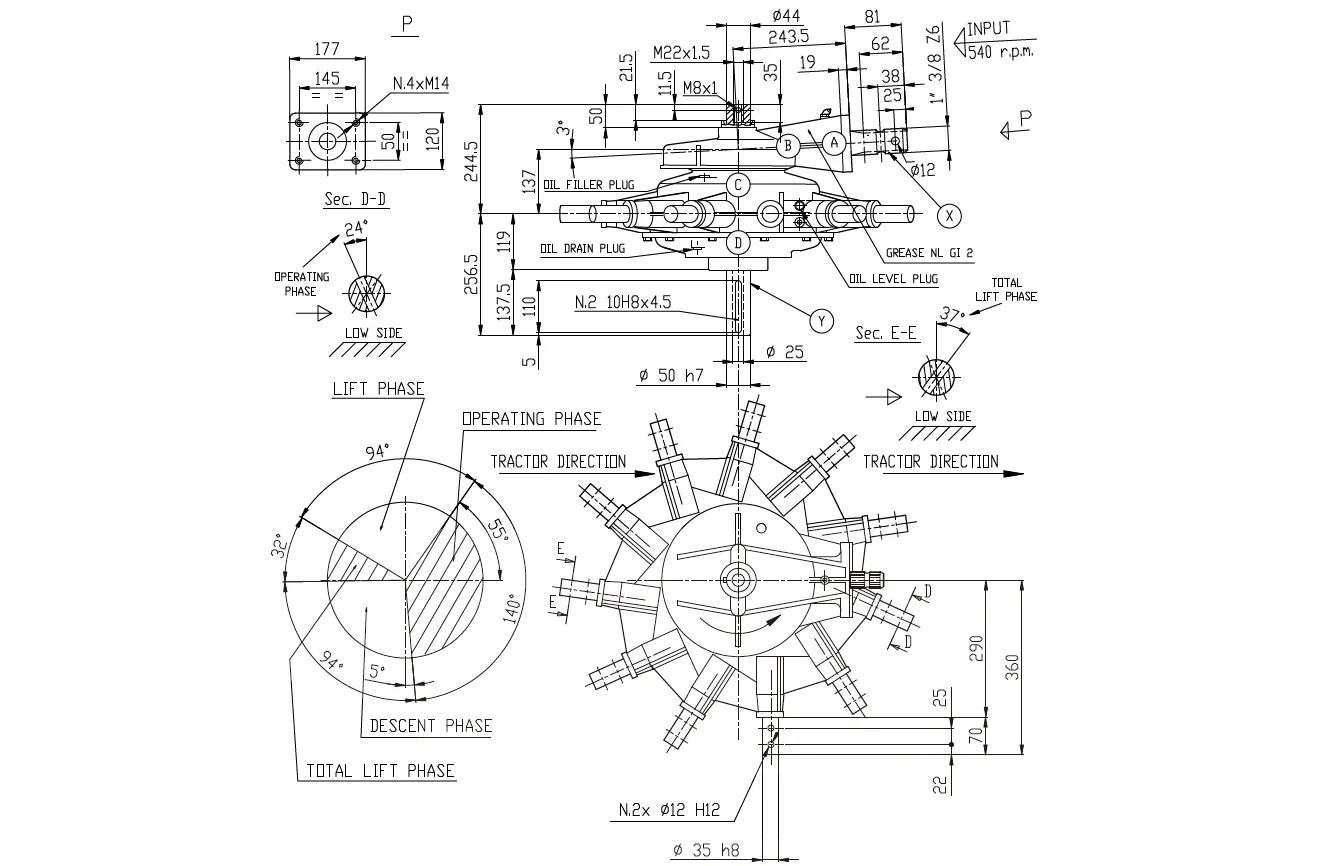

Specifications of Rotary Rake Gearbox K-792A (8.2:1)

Product Description
Rotary Rake Gearbox – Replacement of Comer Gearbox K-792A 8.2:1
Product details
  • All gearboxes are supplied without oil.
  • First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
  • Contact us for power at a different RPM.
Model
K-792A
Max. output torque
210 nm
Suitable for machine/vehicle brand
  • Armasz
  • Talex
  • Euro-Masz
  • Altro
  • Jar-Met
  • Inter-Tech
  • Mesko-Rol
  • Kowalski
  • Promar
  • Pronar
Rotation direction
n/a
Contains oil
No
Oil SAE viscosity grade
90EP
Housing material
Cast iron
Housing color
Brown
Number of arms
11
Gear ratio
8,2:1
Input shaft
1 3/8 Z6
Shaft type
1 x 1.3/8 (Z6)

Characteristic of Rotary Rake Gearbox K-792A (8.2:1)

Here are some characteristics of the rotary rake gearbox K-792A:

Durability: The rotary rake gearbox K-792A is designed to be tough and durable, capable of withstanding the harsh conditions encountered in agricultural applications.

High power density: This rotary rake gearbox has high power density which makes it an efficient and reliable component in rotary rakes.

Multiple gear ratios: The rotary rake gearbox K-792A offers a wide range of gear ratios, enabling farmers to choose the ideal ratio for their specific application.

Capacity: The rotary rake gearbox K-792A has a maximum torque capacity of 790 Nm and a maximum input speed of 500 rpm.

Easy installation: The rotary rake gearbox is designed for easy installation onto rotary rakes using standard-sized mounting bolts.

Lubrication: The rotary rake gearbox K-792A requires regular lubrication to ensure long-lasting performance and prevent wear and tear.

Minimal maintenance: The rotary rake gearbox has minimal maintenance requirements, making it an ideal choice for busy farmers and operators.

Overall, the rotary rake gearbox K-792A is a high-quality component that is vital in the efficient and reliable operation of rotary rakes in agriculture. Its robust design, multiple gear ratios, and ease of installation and maintenance make it an ideal choice for farmers and operators looking for a reliable gearbox for their rotary rakes.

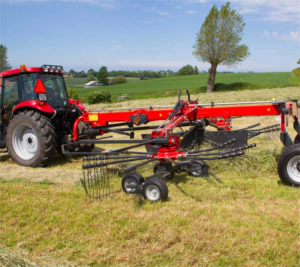

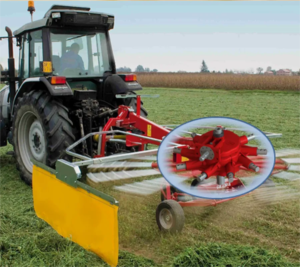

Rotary Rake Gearbox Usage Scenarios

The rotary rake gearbox is predominantly used in agricultural machinery, specifically in rotary rakes. Below are some usage scenarios for this rotary rake gearbox:

1. Hay harvesting: Rotary rakes are commonly used to collect and prepare hay for storage. The rotary rake gearbox is a vital component in the operation of rotary rakes during the hay harvesting season.

2. Silage making: Another popular use for rotary rakes is silage making. The rotary rake gearbox is used to optimize rotary rake performance, which ensures the best possible quality silage is produced.

3. Lawn maintenance: Some landscapers and groundskeepers use rotary rakes to collect grass clippings and other debris from lawns. The rotary rake gearbox is crucial in powering the rotary rake and ensuring it functions properly.

4. Golf course maintenance: Many golf courses use machinery with rotary rakes to maintain their greens and fairways. The rotary rake gearbox is an essential component in this machinery, enabling the efficient collection of debris and ensuring a clean and tidy golf course.

5. Snow removal: In some areas, snow plows are fitted with rotary rakes to collect snow and transport it. The rotary rake gearbox is used to power the rotary rake in these snow removal operations.

Overall, the rotary rake gearbox is versatile and can be used in various applications wherever rotary rakes are needed. Its durability, high power density, and multiple gear ratios make it an excellent choice for farmers, landscapers, and other professionals who need rotary rakes in their operations. It is a critical component in machinery used for hay harvesting, silage-making, lawn maintenance, golf course maintenance, snow removal, and more.

How to Maintain the Rotary Rake Gearbox?

Proper maintenance of the rotary rake gearbox is important to ensure its longevity and efficient performance. Here are some tips to help you maintain your rotary rake gearbox:

Lubrication: Regular lubrication is essential to keep the rotary rake gearbox functioning correctly. The manufacturer’s specifications will indicate the type and frequency of lubrication.

Inspection: Regular inspection of the rotary rake gearbox for signs of leaks, wear, or damage can help you identify problems early on and prevent costly breakdowns. Also, check to ensure that the bolts and nuts are tight.

Cleanliness: Keeping the rotary rake gearbox clean can help prolong its life. Avoid using high-pressure water to clean it, as this can force water and debris into the gearbox and cause damage.

Storage: If you store the rotary rake over winter or for an extended period, make sure you drain any fluids from the rotary rake gearbox as it can reduce the risk of corrosion.

Use quality replacement parts: When replacing gears or other essential components, always use quality replacement parts from reliable sources such as the original equipment manufacturer or authorized dealers.

Avoid overloading: Overloading the rotary rake gearbox can cause excessive wear, which could lead to major damage, so use the rotary rake gearbox within the manufacturer’s recommended specifications.

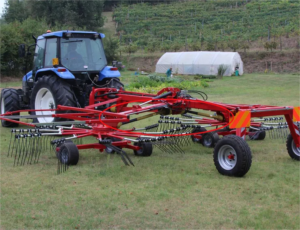

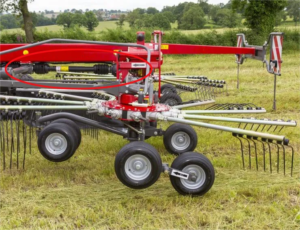

We Also Provide PTO Shaft for Rotary Rake Gearbox

The PTO shaft for the rotary rake gearbox is an important component that transfers power from the tractor to the gearbox, which then powers the rotary rake. The shaft connects to the tractor’s PTO output shaft on one end and to the rotary rake gearbox input shaft on the other end.

It is crucial to ensure that the PTO shaft is the correct size for both the tractor and the rotary rake gearbox to prevent damage or loss of power. PTO shafts come in different lengths and sizes, so it is essential to choose the appropriate one for your machinery. It’s also essential to take proper precautions when attaching and detaching the PTO shaft. This involves ensuring that the tractor and rotary rake are turned off before engaging with the PTO shafts. Additionally, the PTO shafts should be properly lubricated and maintained to prevent any accidents or breakdowns.

Overall, the PTO shaft is an integral part of the rotary rake gearbox system and plays a critical role in ensuring that the rotary rake operates efficiently and safely. So PTO shaft should be properly maintained to ensure its safety and effectiveness. The PTO shaft should be regularly inspected for signs of wear and tear and should be replaced if necessary.

Here are some tips for maintaining your PTO shaft:

  • Inspect the PTO shaft regularly for signs of wear and tear, such as cracks, dents, or loose bolts.
  • Replace the PTO shaft if it is damaged or worn.
  • Keep the PTO shaft clean and free of debris.
  • Lubricate the PTO shaft regularly with a grease gun.
  • Do not overload the PTO shaft.
  • Operate the tractor and rotary rake at the correct speed.
  • Use the correct type of PTO shaft for your rotary rake.
