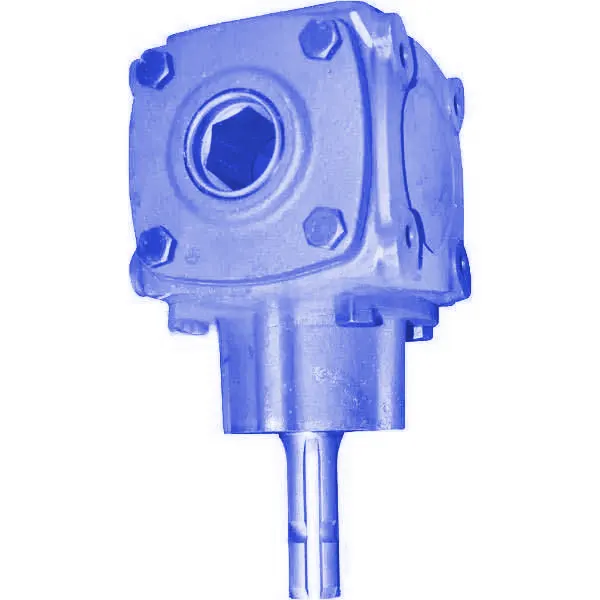

Rotary Tiller Gearboxes – Replacement of Comer Code TB-19J
A rotary tiller gearbox is a device that transfers power from a tractor or other power source to the tines or blades of a rotary tiller. The gearbox typically consists of housing, gears, bearings, and seals. As the power source rotates the input shaft, the gears inside the gearbox engage and transfer the rotational force to the output shaft, which in turn drives the tines of the tiller. The gearbox allows for efficient and precise control of the tines’ speed and direction, making it a critical component in the operation of a rotary tiller.

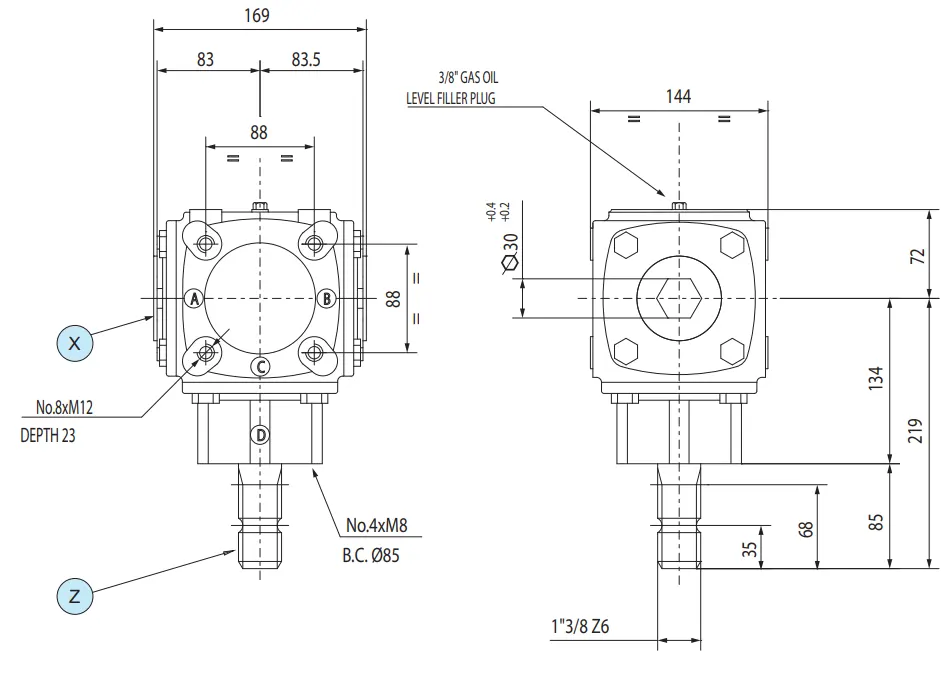

Rotary Tiller Gearbox TB-19J Details
i | 1.46 |
N1[rpm] | 540 |
P1[kW] | 16.9 |
M2[Nm] | 423 |
Shaft X | 30 |
Shaft Z | 1” 3/8 Z6 |
Input | Z |
PTO Shafts for Rotary Tiller Gearbox
A power take-off (PTO) shaft is often used to connect a rotary tiller gearbox to a tractor’s PTO. The PTO shaft transfers power from the tractor’s engine to the tiller gearbox, allowing for efficient and precise control of the tines’ speed and direction. The PTO shaft typically consists of an input yoke, drive shaft, and output yoke, and is designed to be easily attached and detached from the tractor and gearbox. It’s important to ensure that the PTO shaft is properly maintained and adjusted to prevent accidents and ensure optimal performance. Hangzhou Power-trans Transmission, also provides a wide range of PTO drive shafts for sale. Contact us now to get more information if you are interested.
