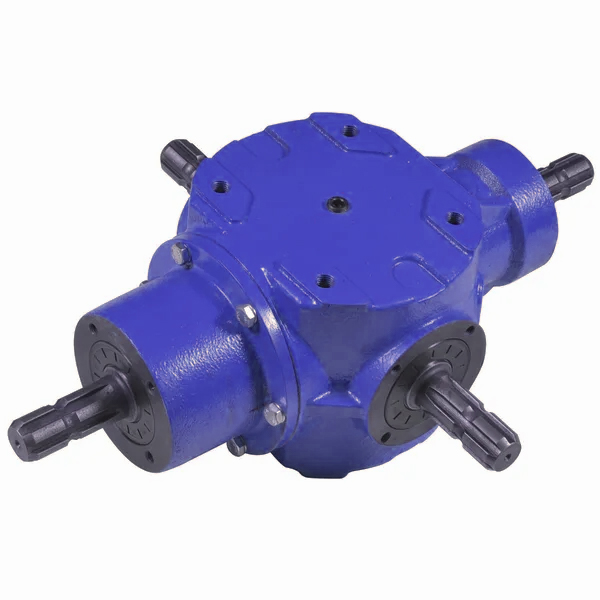

Round Baler Gearbox 2100-T3 for Round Baler and Harvester

Round Baler Gearbox 2100-T3 for Round Baler and Harvester

The round baler gearbox 2100-T3 is a type of gearbox specifically working for round balers and harvesters. It is an essential component in these agricultural machines. It helps facilitate the baling and harvesting processes. The round baler gearbox is responsible for transmitting power from the tractor’s power take-off (PTO) to the baler or harvester. It converts the rotational motion from the PTO into the appropriate speed and torque required for the baler’s operations. Designed to handle the high loads and stresses associated with baling and harvesting. Ensuring smooth and efficient operation.

Specifically engineered to meet the demanding requirements of modern round balers and harvesters. Built with robust materials and precision engineering to withstand the harsh conditions. Heavy workloads encountered in the field. The gearbox is typically constructing with high-strength gears, bearings, and shafts. Can handle the forces involved in the baling and harvesting processes.

The round baler gearbox’s design includes various gear ratios to provide the necessary speed and torque combinations for different tasks. This versatility allows the operator to adjust the machine according to the specific crop conditions and baling requirements. The 2100-T3 gearbox is engineered to deliver consistent performance and reliability, ensuring the smooth operation of the baler or harvester.

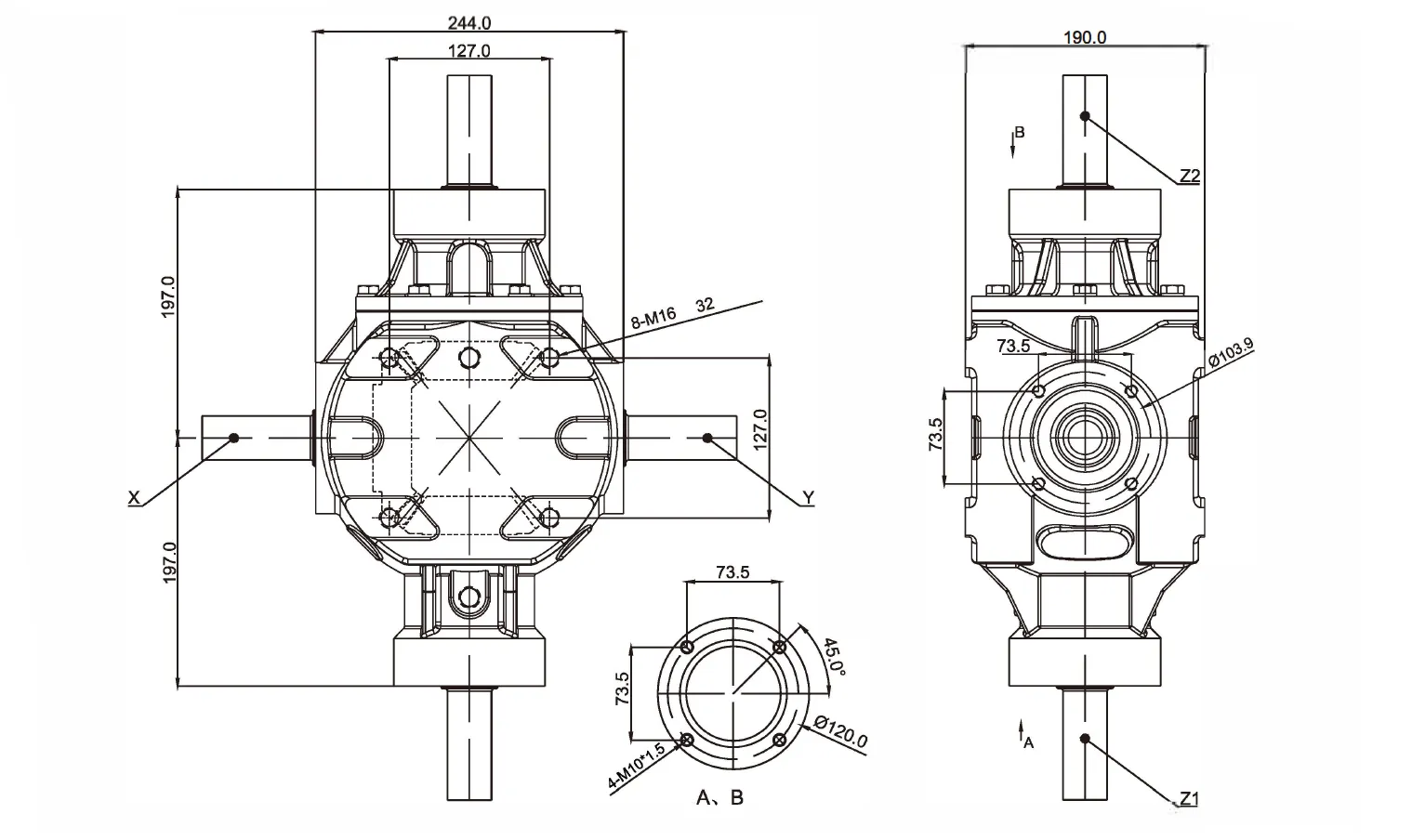

Dimensions

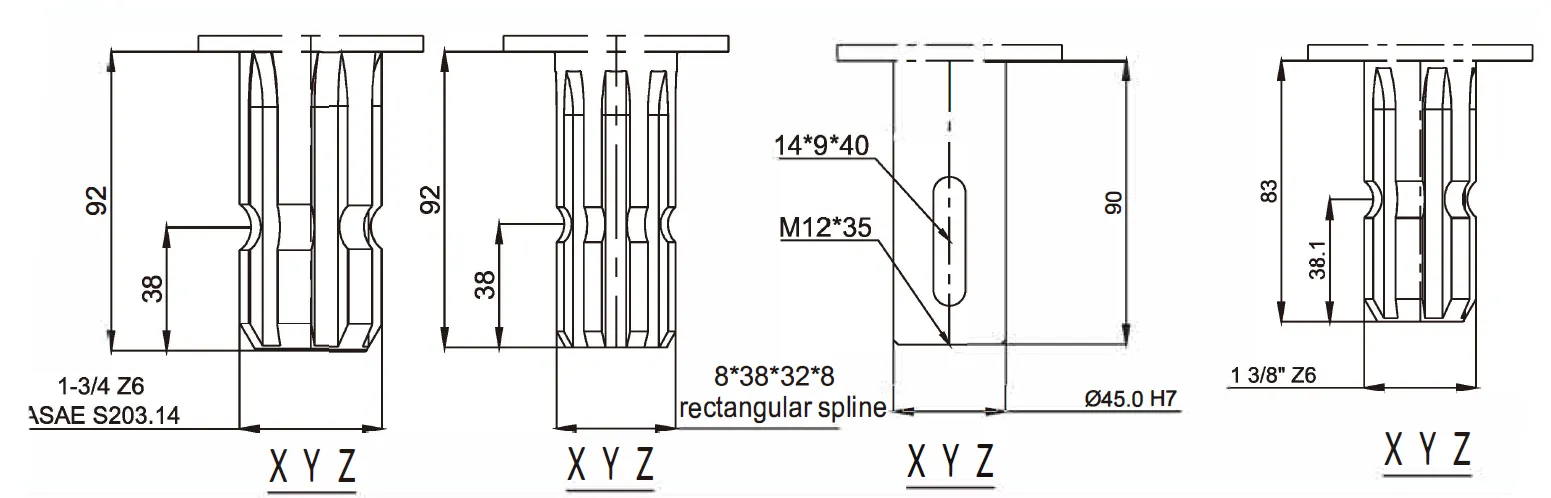

Shaft Dimensions

Technical Data

Component Structure

The round baler gearbox 2100-T3 consists of several key components that work together to transmit power and facilitate the baling process. While the specific design and configuration may vary depending on the manufacturer, here are the typical components you can find in a round baler gearbox:

1. Housing:

The gearbox housing is the outer casing that encloses and protects the internal components of the gearbox. It is typically made of durable materials such as cast iron or aluminum alloy to withstand the stresses and loads encountered during operation.

2. Input Shaft:

The input shaft is connected to the power take-off (PTO) of the tractor and receives rotational power from it. It transfers this power to the internal gears for further transmission.

3. Gears:

Gears are the primary components responsible for transmitting power and converting rotational motion. The 2100-T3 gearbox usually contains multiple gears, such as spur gears or helical gears, that are arranged in specific configurations to achieve the desired speed and torque ratios. The gears are precision machined and heat-treated to ensure strength, durability, and efficient power transmission.

4. Bearings:

Bearings are used to support and facilitate the smooth rotation of the gears and other rotating components within the gearbox. They reduce friction and allow for efficient power transmission while minimizing wear and tear.

5. Output Shaft:

The output shaft is connected to the baler or harvester mechanism and transfers the power from the gearbox to drive the baling process. It is designed to match the required speed and torque for the specific application.

6. Seals:

Seals are used to prevent the entry of contaminants, such as dirt, water, or debris, into the gearbox and to retain lubricating oil inside. They help maintain the proper lubrication and protect the internal components from damage.

7. Lubrication System:

The gearbox is equipped with a lubrication system to ensure proper lubrication of the gears and bearings. It typically includes an oil reservoir, oil pump, and oil passages that deliver lubricant to the critical areas of the gearbox, reducing friction and heat generation.

Advantages of Using the Round Baler Gearbox 2100-T3

The Round Baler Gearbox 2100-T3 offers several advantages that make it a preferred choice for round balers and harvesters. Here are some of the key advantages of using the 2100-T3 gearbox:

(1) Robust Construction: The 2100-T3 gearbox is built with high-quality materials and precision engineering to withstand the demanding conditions of baling and harvesting operations. Its robust construction ensures durability and longevity, even when subjected to heavy loads and stresses.

(2) Efficient Power Transmission: Designed to efficiently transmit power from the tractor’s power take-off (PTO) to the baler or harvester. It optimizes the speed and torque ratios to match the specific requirements of the machine, ensuring smooth and efficient operation.

(3) Versatile Gear Ratios: The 2100-T3 gearbox offers a range of gear ratios, allowing operators to adjust the machine’s performance according to different crop conditions and baling requirements. This versatility ensures optimal performance and productivity in various situations.

(4) Reliable Performance: Engineered to deliver consistent and reliable performance. Its precise gear arrangements and high-quality components minimize the risk of malfunctions, reducing downtime and maximizing productivity.

(5) Easy Maintenance: Designed for easy maintenance and serviceability. Routine inspections, lubricant checks, and part replacements can be performed with relative ease, ensuring that the gearbox remains in optimal condition and minimizing downtime.

(6) Compatibility: Designed to be compatible with a wide range of round balers and harvesters.

Round Baler Gearbox 2100-T3 Applications in Agriculture

The Round Baler Gearbox 2100-T3 is primarily designing for use in round balers and harvesters, playing a crucial role in the baling and harvesting processes in agriculture. Here are some specific applications of the 2100-T3 gearbox in agriculture:

1. Round Balers: Round balers are agricultural machines used to gather and compress crops, such as hay, straw, or silage, into round bales. The 2100-T3 gearbox is employed in round balers to transmit power from the tractor to the baling mechanism. It converts the rotational motion from the tractor’s power take-off (PTO) into the appropriate speed and torque required to drive the baler’s components, including the pickup, feeding system, and bale chamber.

2. Harvesters: Harvesters, also known as forage harvesters or choppers, are machines used to harvest and chop crops, such as corn or grass, for silage production. The 2100-T3 gearbox is utilized in harvesters to transfer power from the tractor to the cutting and chopping mechanisms. It enables the efficient conversion of rotational power from the PTO to drive the harvester’s components, including the cutting head, feeding system, and chopping unit.

In both round balers and harvesters, the 2100-T3 gearbox provides the necessary speed and torque ratios to match the specific requirements of the machine. It ensures smooth and reliable power transmission, allowing for efficient baling and harvesting operations in the field.

The 2100-T3 gearbox may also find applications in other agricultural machinery. where a similar power transmission and speed-torque conversion are requiring. However, its primary use and design are focused on round balers and harvesters due to their specific requirements in crop baling and harvesting.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.

Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
