Round Baler Gearbox 246 for Round Baler and Harvester
The Round Baler Gearbox 246 is a crucial component of a round baler machine used in agricultural operations. The gearbox plays a vital role in the baler’s functioning by transferring power from the tractor’s power take-off (PTO) to various components within the baler, enabling the baling process.
The 246 gearbox is specifically designed for round balers and is built to withstand the demanding conditions encountered during baling operations. It is typically located at the rear of the baler and is connected to the tractor’s PTO through a driveline. The gearbox consists of a series of gears and shafts that transmit rotational power from the tractor to different parts of the baler. These gears are carefully engineered to ensure efficient power transmission and to handle the high torque generated during baling.
One of the primary functions of the gearbox is to drive the pickup reel. The pickup reel collects the crop material from the ground and feeds it into the baler. The gearbox transfers power from the PTO to the pickup reel, enabling it to rotate and gather the crop efficiently. Additionally, the gearbox is responsible for driving the baling chamber, which compresses the collected crop material into a cylindrical shape to form the bale. The gearbox transfers power to the baling chamber, allowing it to rotate and apply the necessary force to create a tightly packed bale.
The Round Baler Gearbox 246 is designed to be durable and reliable, as it operates in challenging conditions with varying loads and speeds. It is typically constructed from high-quality materials and undergoes rigorous testing to ensure its performance and longevity.
Round Baler Gearbox 246 Double Output Dimensions

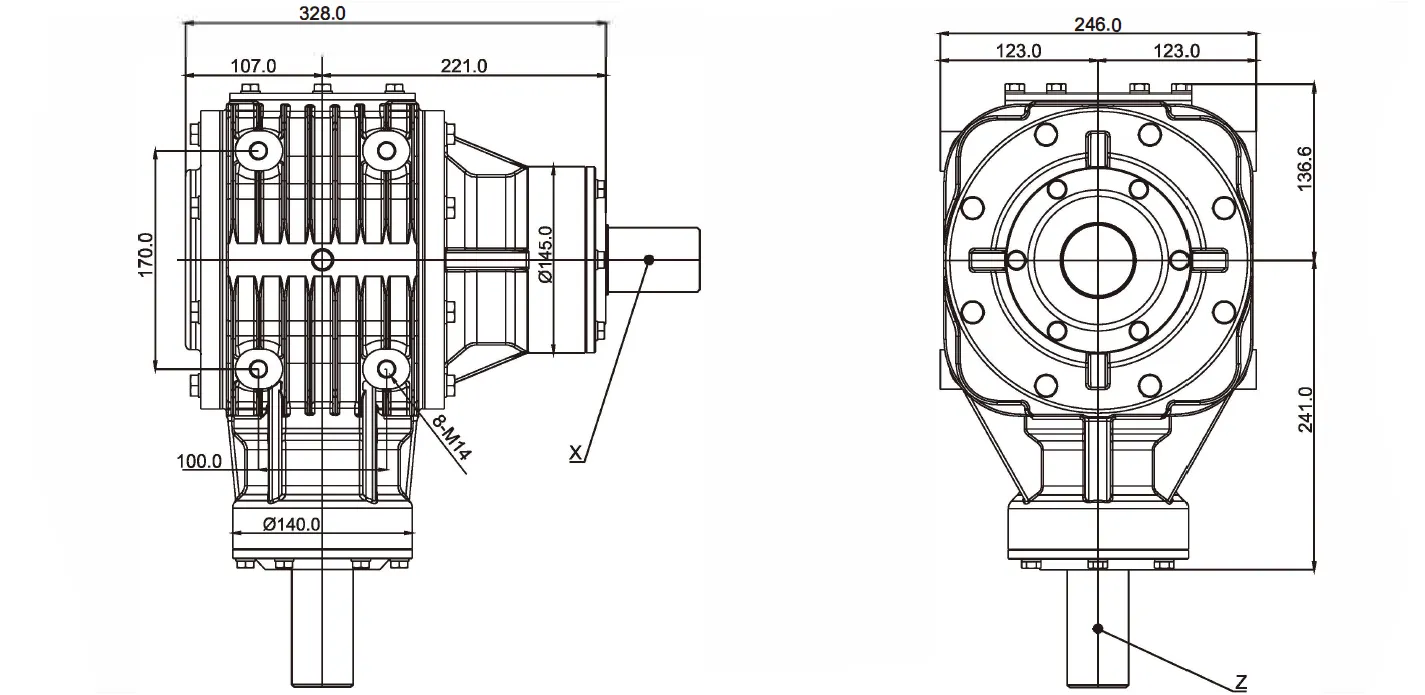

Round Baler Gearbox 246 Single Output Dimensions
Round Baler Gearbox 246 Technical Data
i | Suitable | Rpm input | Rpm output | KW(Nom) | Output torque | Toothing | |
r/min | r/min | hp | N.m | ||||
Decelerate | 1.92:1 | Round baler, harvester, etc | 540 | 282 | 100 | 2000 | Gleason Helical Teeth |
Remark: If you have any special require feel free let me know, we also accept custom. |

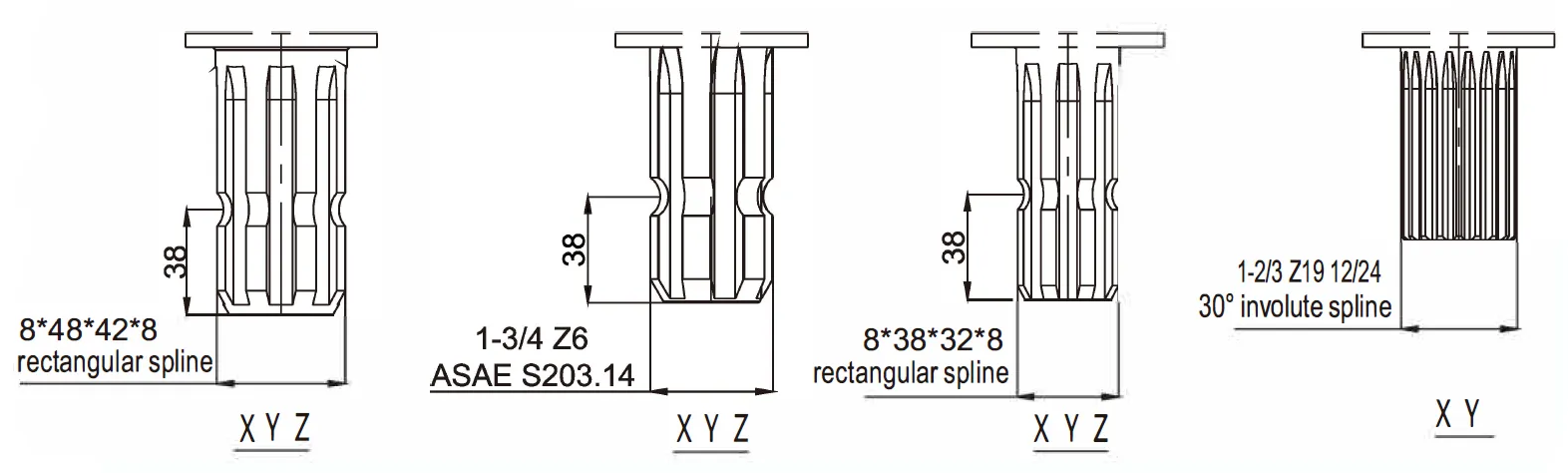

Round Baler Gearbox 246 Shaft Dimensions

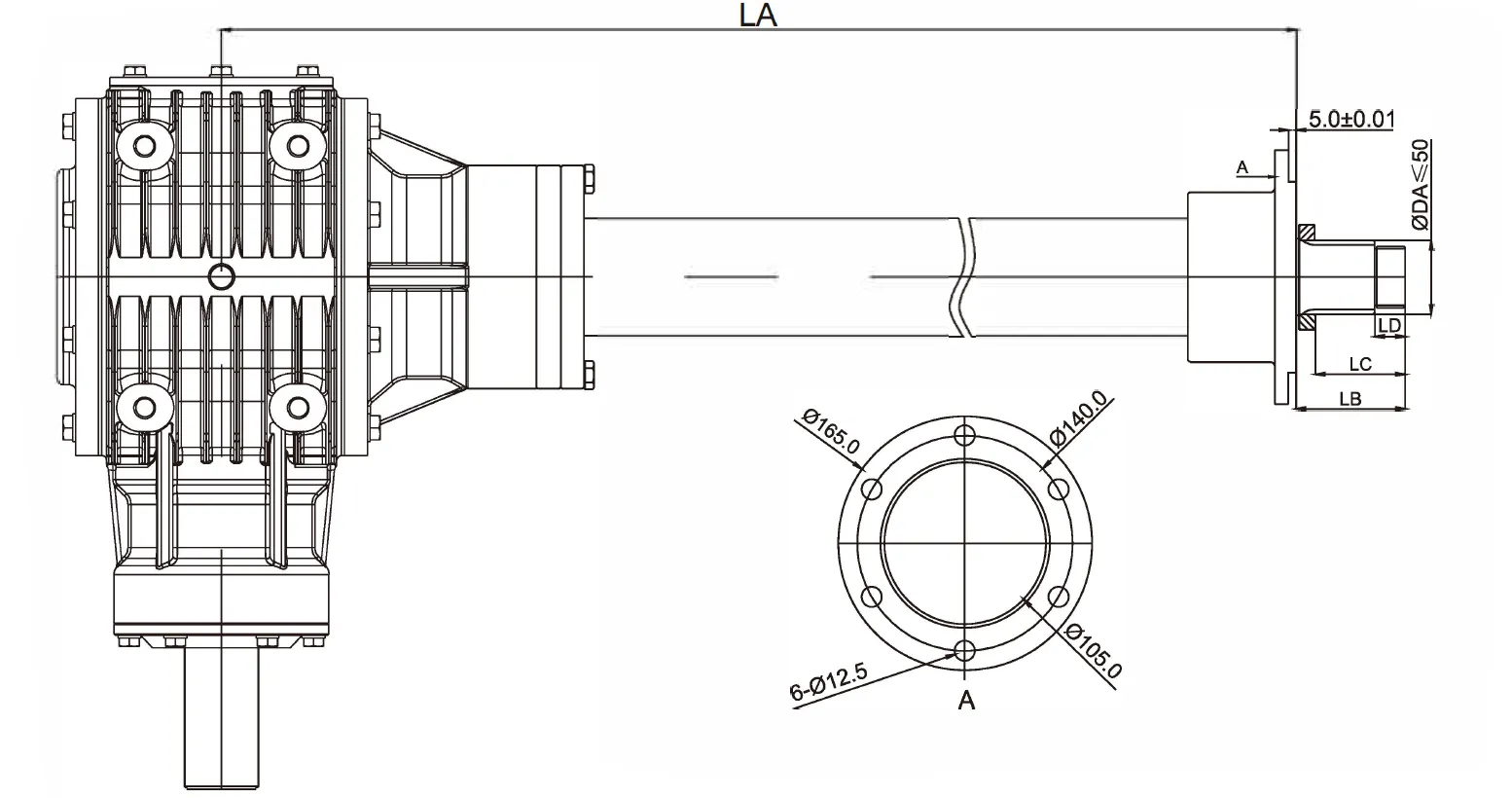

Round Baler Gearbox 246 Extension Pipe Dimensions
Round Baler Gearbox 246 Component Structure
The Round Baler Gearbox 246 consists of several key components that work together to transfer power and enable the functioning of a round baler machine. While specific designs may vary between manufacturers, here are the typical components found in a round baler gearbox:
1. Input Shaft: The input shaft is the component that receives power from the tractor’s power take-off (PTO). It is connected to the tractor through a driveline and transfers rotational power to the gearbox.
2. Gears: The gearbox contains a set of gears that transmit power from the input shaft to various components within the baler. The gears are carefully designed to handle the high torque generated during baling operations.
3. Output Shaft: The output shaft is responsible for transferring power from the gearbox to specific components within the baler. It connects to different parts of the baler, such as the pickup reel and the baling chamber, depending on the baler’s design.
4. Bearings: Bearings are essential for supporting the rotating shafts and gears within the gearbox. They reduce friction, allowing smooth movement and preventing excessive wear.
5. Seals: Seals are used to prevent lubricants from leaking out of the gearbox and to keep contaminants, such as dirt and moisture, from entering. They help maintain the integrity of the lubrication system and protect the gearbox’s internal components.
6. Housing: The gearbox is enclosed within a housing, which provides protection and support for the internal components. The housing is typically made from durable materials to withstand the harsh operating conditions encountered during baling operations.
7. Lubrication System: The gearbox contains an internal lubrication system to ensure proper lubrication of the gears and bearings. This system includes oil or grease reservoirs, oil seals, and channels to distribute lubricant to the necessary components, reducing friction and preventing premature wear.
Round Baler Gearbox 246 Advantages
The Round Baler Gearbox 246 offers several advantages that contribute to its reliable and efficient performance in round baler machines. Here are some key advantages of the 246 gearbox:
(1) Durability: The 246 gearbox is designed to withstand the demanding conditions encountered during baling operations. It is constructed from high-quality materials and undergoes rigorous testing to ensure its durability and longevity. This allows it to endure the high torque and loads associated with baling without premature wear or failure.
(2) Efficient Power Transmission: The gearbox’s design ensures efficient power transmission from the tractor’s power take-off (PTO) to the pickup reel and baling chamber. The gears and shafts within the gearbox are carefully engineered to minimize power loss and maximize the transfer of rotational force. This efficiency contributes to the overall performance of the baler, allowing for more productive baling operations.
(3) Versatility: The 246 gearbox is specifically designed for round baler machines, making it compatible with various baler models and brands. Its versatility allows it to be used in different agricultural applications, accommodating different crop types and field conditions.
(4) Reduced Maintenance: The 246 gearbox is designed to require minimal maintenance, reducing downtime and maintenance costs. However, regular inspection and proper lubrication are still necessary to ensure optimal performance and longevity. The gearbox’s robust construction and efficient design minimize the need for frequent repairs or component replacements.
(5) Smooth Operation: The 246 gearbox is engineered to provide smooth and consistent operation, contributing to the overall efficiency of the round baler. The use of high-quality bearings and seals helps reduce friction and vibration, resulting in smoother power transmission and quieter operation.
(6) Manufacturer Support: The 246 gearbox is typically backed by the manufacturer’s support and warranty. This provides assurance to users that they can rely on the gearbox’s performance and have access to technical assistance if needed.
(7) Compatibility with Balers: The 246 gearbox is designed to seamlessly integrate with various round baler models and brands. This compatibility ensures that the gearbox can be easily installed or retrofitted onto existing balers, minimizing any compatibility issues or modifications required.
Round Baler Gearbox 246 Agricultural Applications
The Round Baler Gearbox 246 is primarily used in agricultural applications that involve the operation of round baler machines. Round balers are widely used in the agricultural industry for harvesting and baling various crops, and the 246 gearbox plays a crucial role in their functioning. Here are some common agricultural applications where the 246 gearbox is utilized:
1. Hay Harvesting: The 246 gearbox is extensively used in hay harvesting operations. It enables the pickup reel to rotate and collect the cut hay from the ground, feeding it into the baler for baling. The gearbox transfers power from the tractor’s power take-off (PTO) to the pickup reel, ensuring efficient and smooth operation during the hay collection process.
2. Silage Production: Silage, which is fermented and preserved fodder, is a common feed source for livestock. The Round Baler Gearbox 246 is employed in round balers used for silage production. It drives the pickup reel to gather the chopped forage material and the baling chamber to compress it into a bale, facilitating the creation of tightly packed silage bales.
3. Straw Baling: The 246 gearbox is also utilized in baling straw, which is commonly used as bedding material for livestock or as a component in various agricultural applications. The gearbox drives the pickup reel to collect the straw and the baling chamber to form tightly compressed straw bales.
4. Crop Residue Baling: After the primary crop harvest, farmers may bale the leftover crop residue, such as corn stalks or wheat straw. The Round Baler Gearbox 246 is employed in round balers to gather and bale crop residue, facilitating its efficient collection and storage for various purposes, such as livestock feed or recycling.
We Also Offer Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.
Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
