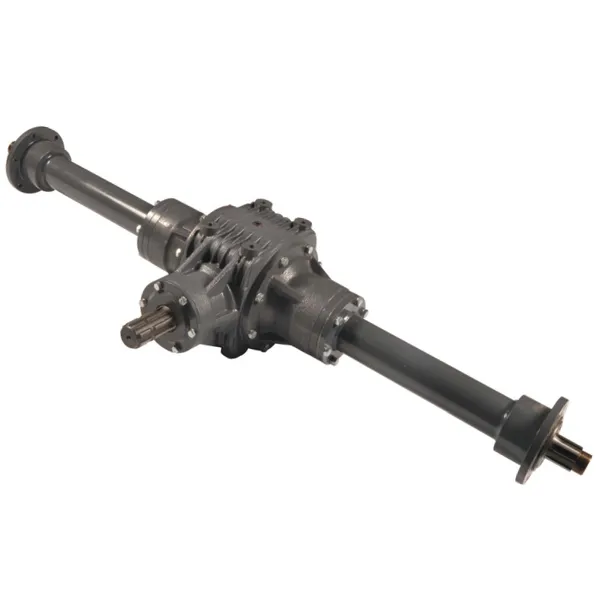

Round Baler Gearbox 250-YJ for Round Baler and Harvester
The Round Baler Gearbox 250-YJ is an essential component designed for integration into round balers and harvesters, machinery widely used in agricultural operations for compressing and packaging various types of crop materials into cylindrical bales. This gearbox model is engineered to meet the demands of these machines, ensuring efficient and reliable operation.
The 250-YJ Round Baler Gearbox is responsible for transmitting mechanical power from the tractor’s Power Take-Off (PTO) or harvester engine to the baler’s or harvester’s operational components. This includes driving mechanisms such as the rollers that form the round bales or the cutting and threshing components in harvesters. The gearbox regulates the operational speed and torque, ensuring that the machinery’s components operate at optimal speeds for efficient and consistent baling or harvesting.

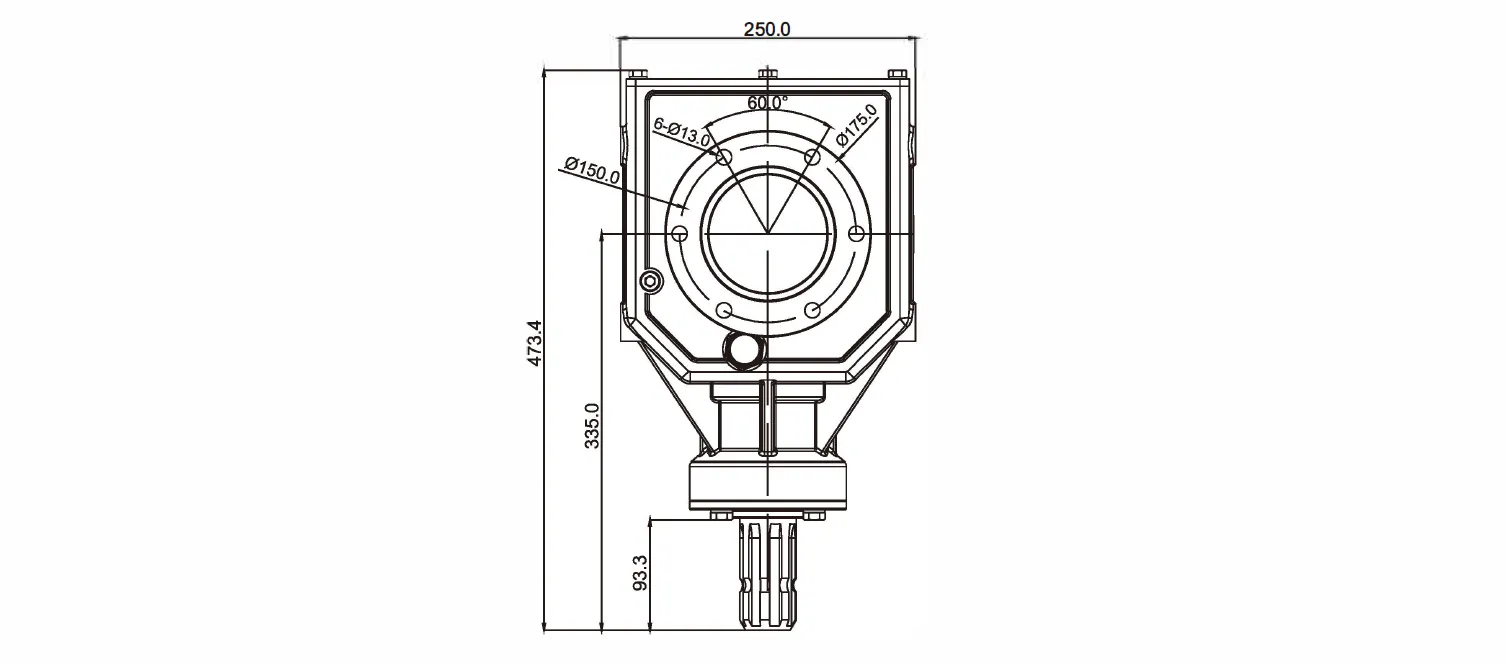

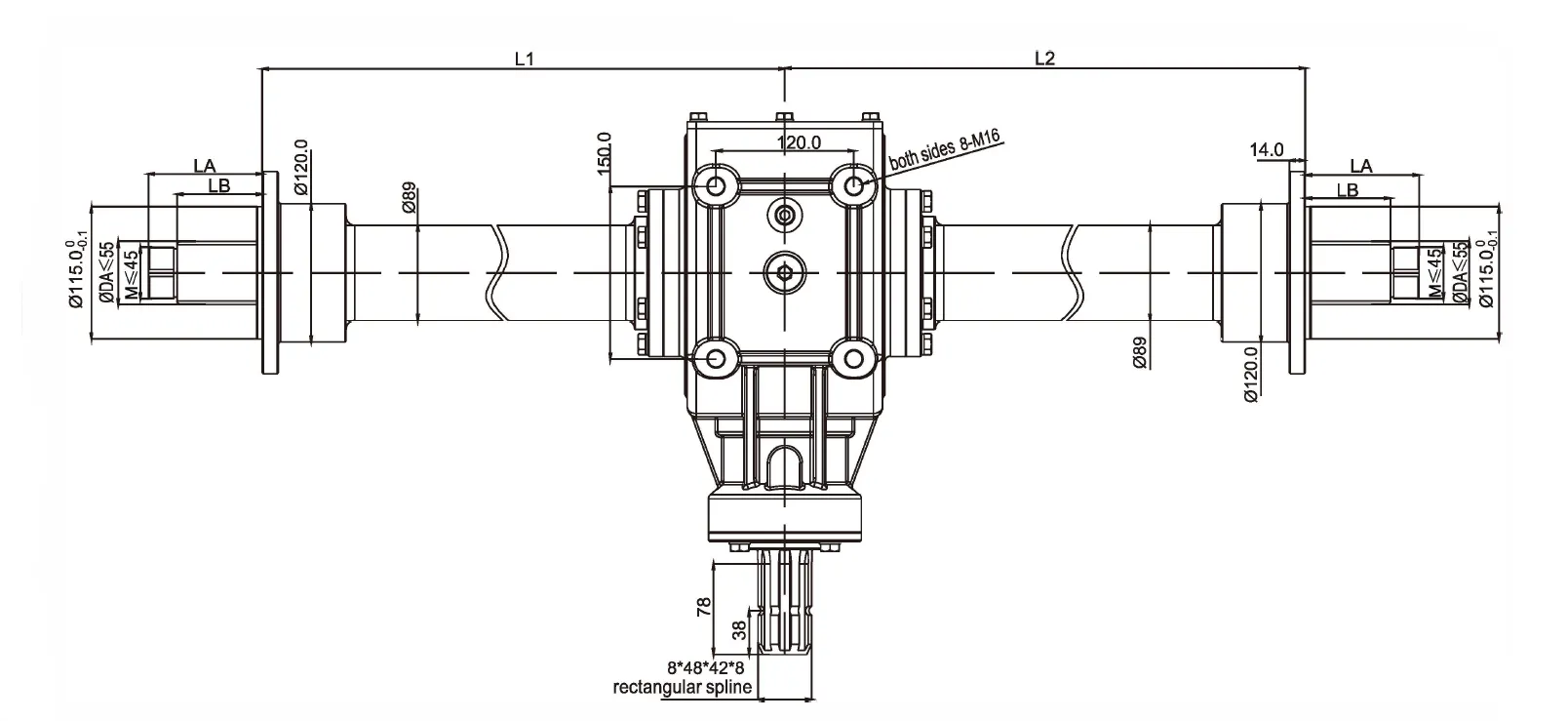

Round Baler Gearbox 250-YJ Dimensions
Round Baler Gearbox 250-YJ Technical Data
i | Suitable | Rpm input | Rpm output | KW(Nom) | KW(Max) | Toothing | |
r/min | r/min | hp | hp | ||||
Decelerate | 1.92:1 | Round baler, harvester, etc |
540 | 282 | 80 | 1800 | Gleason Helical Teeth |
Remark: If you have any special require feel free let me know, we also accept custom. |
Round Baler Gearbox 250-YJ Part Structure
The Round Baler Gearbox 250-YJ, specifically designed for round balers and harvesters, comprises various components that work together to ensure the efficient operation and durability of the machinery. Understanding the structure of the gearbox is crucial for maintenance, troubleshooting, and ensuring optimal performance. Here’s the primary components and their roles within the Round Baler Gearbox 250-YJ:
1. Housing: Encases and protects the internal components of the gearbox from external elements, dust, and debris.Typically constructed from high-strength materials like cast iron or heavy-duty steel for durability and to withstand the operational stresses.
2. Gears: May include different types of gears such as spur gears, helical gears, or bevel gears, depending on the design and operational needs. Engage with each other to transmit and modify the power received from the tractor’s PTO or harvester engine to the required speed and torque for the baler or harvester.
3. Bearings: Positioned at pivotal points where components rotate or move. Facilitate smooth operation by reducing friction between the moving parts, thereby minimizing wear and extending the lifespan of the gearbox.
4. Shafts: Input Shaft: Connects to the PTO of the tractor or the driving component of the harvester, receiving power. Output Shaft: Transfers the modified power from the gears to the operational components of the round baler or harvester, such as the rollers in balers or cutting mechanisms in harvesters.
5. Seals: Prevent lubricant leakage and protect the internal components from contamination and external elements. Includes various types of seals and gaskets located at crucial points like shaft entries and housing joins.
6. Lubrication System: Delivers lubricant to the gearbox’s internal components, reducing friction, wear, and the risk of overheating. Typically includes an oil reservoir, channels or tubes for oil distribution, and filters to ensure the lubricant remains clean and effective.
Round Baler Gearbox 250-YJ Common Applications
The 250-YJ round baler gearbox is commonly used in round balers and harvesters for various agricultural applications. Some of the common applications of this gearbox include:
1. Round Baler: The 250-YJ gearbox is a crucial component in round balers, which are used to collect and compress crops such as hay, straw, or silage into round bales. It facilitates the rotation and movement of components such as the pickup reel, feeding augers, bale chamber, and bale ejection system.
2. Harvester: The gearbox is also utilized in harvesters, which are agricultural machines used for cutting, gathering, and processing crops in the field. In this context, the 250-YJ round baler gearbox is involved in the operation of different parts of the harvester, including the cutting mechanism, crop conveyors, and bale formation systems.
3. Crop Cutting Mechanism: The 250-YJ round baler gearbox assists in driving the cutting mechanism, typically consisting of rotating blades or sickle bars, in both round balers and harvesters. It ensures smooth and efficient cutting of the crops, facilitating their subsequent processing and baling.
4. Crop Feeding and Conveying: The gearbox helps drive the feeding augers or conveyor systems that transport the harvested crops from the cutting mechanism to the baling or processing components. It ensures a steady and controlled flow of crops, aiding in the bale formation or processing operation.
5. Bale Formation and Ejection: The round baler gearbox 250-YJ plays a vital role in the bale formation process. It powers the mechanisms responsible for compacting and shaping the crops into round bales within the bale chamber. Additionally, it assists in the ejection of the formed bales from the baler, allowing for continuous operation.
6. Bale Wrapping or Processing: In certain balers or harvesters, the gearbox may also be involved in driving additional components for bale wrapping with plastic film or other processing activities, such as applying preservatives or additives to the bales.
Round Baler Gearbox 250-YJ Installation Operation
Installing and operating the Round Baler Gearbox 250-YJ correctly is crucial for ensuring optimal performance and longevity of the equipment. Here are general guidelines for the installation and operation of the 250-YJ gearbox in a round baler or harvester:
Installation Steps:
1. Read the Manuals: Before beginning, thoroughly read the manuals of the baler/harvester and the gearbox. Understand any specific instructions or safety warnings related to the 250-YJ.
2. Inspect the Gearbox: Check the gearbox for any signs of damage or wear that may have occurred during shipping. Confirm that all necessary parts and tools for the installation are available.
3. Align the Gearbox: Position the gearbox so that its input shaft aligns properly with the Power Take-Off (PTO) shaft of the tractor or the driving shaft of the harvester.
4. Securely Mount the Gearbox: Fasten the gearbox onto the baler or harvester using the appropriate bolts and brackets as specified by the manufacturer. Ensure all fastenings are tightened to the correct torque to prevent any movement or vibration during operation.
5. Connect the PTO or Drive Shaft: Carefully connect the PTO shaft or the primary drive shaft of the harvester to the input shaft of the gearbox. Ensure the connection is secure and that any locking pins or collars are properly engaged.
6. Safety Check: Verify that all safety guards and shields, especially those around the PTO shaft or moving parts, are in place and securely fastened. This is crucial to prevent accidents or injuries during operation.
Operation Guidelines:
(1) Pre-Operational Check: Before starting the baler or harvester, perform a comprehensive check to ensure that the gearbox and all connected components are secure and properly aligned.
(2) Slow Engagement: Engage the PTO or drive slowly at first, and gradually increase to the operating speed. This gradual approach helps prevent sudden shocks or stresses on the gearbox.
(3) Monitor Performance: During operation, keep an eye (and ear) on the gearbox’s performance. Listen for any unusual noises or vibrations that might indicate an issue.
(4) Operate Within Limits: Ensure that the operation stays within the specified limits for speed and torque as stated by the gearbox manufacturer. Exceeding these limits can cause excessive wear or damage.
(5) Post-Operation Inspection: After operation, inspect the gearbox for any signs of overheating, leakage, or other issues. Address any problems before the next use.
