Rubber buffer

Category:
Description

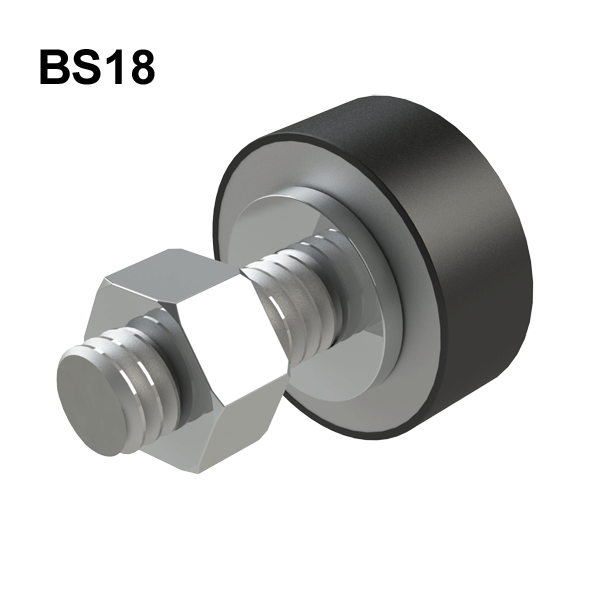

Rubber buffer

Rubber buffers, also known as vibration-damping elements, are essential components used to mitigate disruptive vibrations in industrial settings. They are crafted from Natural Rubber (NR) with steel base plates or AISI 304 stainless steel to ensure durability and effectiveness in various environments.

These buffers are available in different shapes and sizes to cater to specific damping needs:

  • Cylindrical rubber buffers: Provide general vibration damping.
  • Conical rubber buffers: Absorb vibrations and shocks effectively from different angles.
  • Hourglass rubber buffers: Designed for compact spaces and height-constrained installations.
  • Bell-type rubber buffers: Offer specialized damping properties for specific machinery requirements.
  • For applications demanding hygiene and regulatory compliance, grey rubber vibration-damping elements (MVQ) are particularly suitable,
  • commonly used in industries such as food and medical sectors.

Additionally, vibration-damping levelling feet are available for heavy loads, featuring galvanized steel base and levelling plate construction to ensure stability and reduce vibrations effectively.

These products collectively contribute to smoother machine operations by minimizing noise, shocks, and mechanical wear caused by unwanted vibrations.

Diameter Data

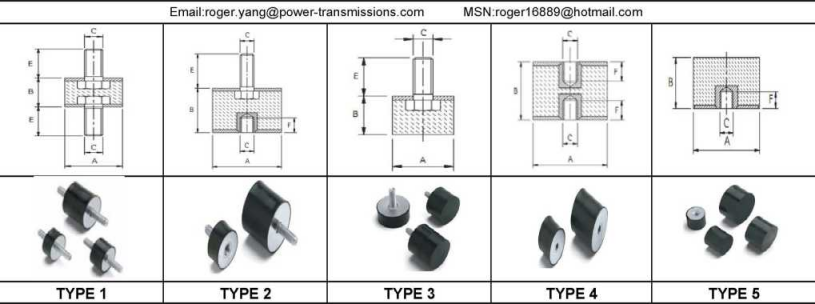

A： Diameter B： Height C: Thread E： Heightof thread F： Deep of thread
20 10 M6 18 ■…
20 15 M6 18 6
20 20 M6 18 8
20 30 M6 15or18 8
20 40 M6 18or18 10
25 10 M6 23 ——
25 20 M6 23 8
25 25 M6 23 8
25 30 M6 23 10
30 15 M8 23
30 20 M8 23 8
30 25 M8 23 8
30 30 M8 23 10
30 35 M8 23 10
32 25 M8 23 8
32 32 M8 23 10
40 20 M8 or M10 23 or 27 8
40 25 M8 or M10 23 or 27 8
40 30 M8 or M10 23 or 27 10
40 40 M8 or M10 23 or 27 10
50 20 M10 23 or 27 8
50 30 M10 23 or 27 10
50 40 M10 23 or 27 10
50 45 M10 23 or 27 12
50 50 M10 23 or 27 12
50 60 M10 23 or 27 12
60 35 M12 31 10
60 40 M12 31 12
60 45 M12 31 15
60 50 M12 31 15
60 60 M12 32 15
70 40 M12 36 15
70 45 M12 36 15
70 50 M12 36 15
70 55 M12 36 15
70 60 M12 36 15
75 40 M12 36 15
75 50 M12 36 15
75 60 M12 36 15
80 60 M12 36 15
100 40 M16 40 15
100 45 M16 40 15
100 50 M16 40 15
100 55 M16 40 15
100 60 M16 40 20
100 90 M16 40 20
120 60 M20 or M24 20
150 50 M16 45 20
150 75 M16 45 20
