Rubber synchronous belts
Rubber synchronous belts are typically made from a combination of rubber and reinforcing materials like fiberglass or aramid fibers. The belt’s inner surface has teeth that mesh with corresponding teeth on the pulleys, ensuring accurate movement and preventing slippage.
Rubber synchronous belts Advantages
- Precision: They provide exact timing and synchronization between shafts, which is crucial for applications requiring precise motion control.
- No Slippage: Unlike V-belts, synchronous belts do not slip, which helps maintain consistent speed and torque transmission.
- Low Maintenance: They generally require less maintenance compared to V-belts, as they don’t need regular tension adjustments.

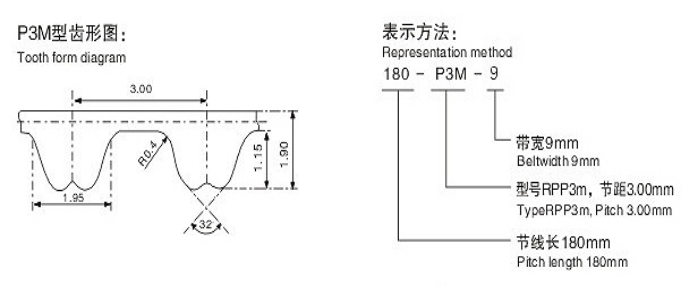

Diameter Data
Specification | Nodal line length | Number of teeth | Specification | Nodal line length | Number of teeth | Specification | Nodal line length | Number of teeth |
105-P3M | 105 | 35 | 288-P3M | 288 | 96 | 513-P3M | 513 | 171 |
129-P3M | 129 | 43 | 291-P3M | 291 | 97 | 522-P3M | 522 | 174 |
141-P3M | 141 | 47 | 297-P3M | 297 | 99 | 525-P3M | 525 | 175 |
144-P3M | 144 | 48 | 300-P3M | 300 | 100 | 531-P3M | 531 | 177 |
147-P3M | 147 | 49 | 318-P3M | 318 | 106 | 537-P3M | 537 | 179 |
150-P3M | 150 | 50 | 327-P3M | 327 | 109 | 564-P3M | 564 | 188 |
159-P3M | 159 | 53 | 330-P3M | 330 | 110 | 570-P3M | 570 | 190 |
168-P3M | 168 | 56 | 333-P3M | 333 | 111 | 576-P3M | 576 | 192 |
174-P3M | 174 | 58 | 336-P3M | 336 | 112 | 579-P3M | 579 | 193 |
177-P3M | 177 | 59 | 339-P3M | 339 | 113 | 597-P3M | 597 | 199 |
180-P3M | 180 | 60 | 345-P3M | 345 | 115 | 600-P3M | 600 | 200 |
186-P3M | 186 | 62 | 354-P3M | 354 | 118 | 621-P3M | 621 | 207 |
195-P3M | 195 | 65 | 357-P3M | 357 | 119 | 621-P3M | 621 | 211 |
201-P3M | 201 | 67 | 363-P3M | 363 | 121 | 621-P3M | 621 | 216 |
204-P3M | 204 | 68 | 375-P3M | 375 | 125 | 669-P3M | 669 | 223 |
210-P3M | 210 | 70 | 384-P3M | 384 | 128 | 711-P3M | 711 | 237 |
213-P3M | 213 | 71 | 390-P3M | 390 | 130 | 735-P3M | 735 | 245 |
225-P3M | 225 | 75 | 393-P3M | 393 | 131 | 756-P3M | 756 | 252 |
231-P3M | 231 | 77 | 405-P3M | 405 | 135 | 804-P3M | 804 | 268 |
240-P3M | 240 | 80 | 420-P3M | 420 | 140 | 882-P3M | 882 | 294 |
243-P3M | 243 | 81 | 432-P3M | 432 | 144 | 945-P3M | 945 | 315 |
246-P3M | 246 | 82 | 447-P3M | 447 | 149 | 1062-P3M | 1062 | 354 |
252-P3M | 252 | 84 | 474-P3M | 474 | 158 | 1125-P3M | 1125 | 375 |
255-P3M | 255 | 85 | 480-P3M | 480 | 160 | 1245-P3M | 1245 | 415 |
264-P3M | 264 | 88 | 486-P3M | 486 | 162 | 1263-P3M | 1263 | 421 |
267-P3M | 267 | 89 | 489-P3M | 489 | 163 | 1500-P3M | 1500 | 500 |
270-P3M | 270 | 90 | 501-P3M | 501 | 167 | 1530-P3M | 1530 | 510 |
276-P3M | 276 | 92 | 510-P3M | 510 | 170 | 1863-P3M | 1863 | 621 |
