S Series Solid Shaft Helical Worm Gearbox & Motor
S Series Solid Shaft Helical Worm Gearbox is a right-angle speed reducer with helical gear and worm gear combined drive system, designed and optimized according to international standards. Our helical worm gearboxes with simple mechanical structure design provide higher efficiency than worm gearboxes and also lower noise during operation.
They are widely applied in robots, CNC machines, welding equipment, plastic machines, packaging and printing machinery, textile and dyeing machinery, construction machinery, communications, and other fields, especially suitable for frequent starting occasions.
S Series Helical Worm Gearbox Specifications:
S Series Helical Worm Gearbox Specifications:| Product name: | S series helical gearbox |
| Model: | S37、S47、S57、S67、S77、S87、S97 SF37、SF47、SF57、SF67、SF77、SF87、SF97 SA37、SA47、SA57、SA67、SA77、SA87、SA97 SAF37、SAF47、SAF57、SAF67、SAF77、SAF87、SAF97 SAT37、SAT47、SAT57、SAT67、SAT77、SAT87、SAT97 SAZ37、SAZ47、SAZ57、SAZ67、SAZ77、SAZ87、SAZ97 |
| Mounting ways: | Foot mounted, flange mounted, torque arm |
| Input ways: | Motor input, AM (IEC) flange input, and shaft input |
| Output way: | Solid shaft output or hollow shaft output |
| Efficiency: | up to 96% |
| Housing material: | HT250 high-strength cast iron |
| Worm Gear material: | High quality copper |
| Gear material: | 20CrMnTi |
| Surface hardness of gears: | HRC58-62 |
| Input/Output shaft: | 40Cr steel |
| Heat treatment: | Carburizing and quenching |
| Bearing: | C&U or other brands |
| Oil seal: | NAK or other brands |
| Lubricating oil: | Gear oil |
| Packing: | Plywood case |
S Series Helical Worm Gearbox Parameters:
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 |
| Structure | S SA SF SAF SAT SAZ | ||||||
| Input power(kW) | 0.18-0.75 | 0.18-1.5 | 0.18-3 | 0.25-5.5 | 0.55~7.5 | 0.75-15 | 1.5-22 |
| Ratio | 10.27~165.71 | 11.46-244.74 | 10.75-196.21 | 11.55-227.20 | 96-241.09 | 11.83-223.26 | 12.75-230.48 |
| Permissible torque(N.m) | 90 | 170 | 300 | 520 | 1270 | 2280 | 4000 |
S Series Helical Worm Gearbox Features:
- simple design, cost-effectiveness
- strong vibration absorption, low-temperature rise
- low-noise operation
- wide range of speed ratios to choose from
- self-function under certain conditions
- good sealing, anti-corrosion, available in harsh conditions
- available to combine with the R series helical gear reducer
S Series Helical Worm Gearbox Types
(1) S Series Foot mounted helical worm gearbox with solid shaft
(2) SA Series helical worm gearbox with hollow shaft
(3) SAZ Series Small flange mounted helical worm gearbox with hollow shaft
(4) SA (S, SF, SAF, SAZ) Series Assemble users’ motor or special motor, the flange is required
(5) SF Series Flange mounted helical worm gearbox with solid shaft
(6) SAF Series Flange mounted helical worm gearbox with hollow shaft
(7) SAT Series Torque arm mounted Helical worm gearbox with hollow shaft
(8) S (SF, SA, SAF, SAZ) Serie Shaft input Helical worm gearbox
(9) SA (S, SF, SAF, SAZ)R Series Combined Helical worm gearbox
(10) SA (S, SF, SAF, SAZ)S Series Shaft input combined Helical worm gearbox

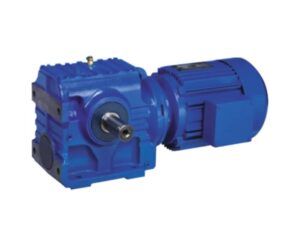

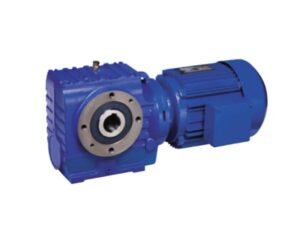

| S Series Foot Mounted Helical Worm Gearbox | SA Series Helical Worm Gearbox with Hollow Shaft |
 |
 |

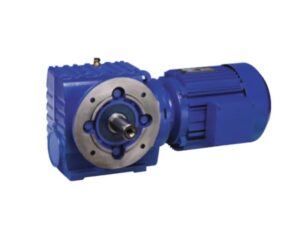

| SF Series Flange Mounted Helical Worm Gearbox | SAF Series Flange Mounted Helical Worm Gearbox |
 |
 |

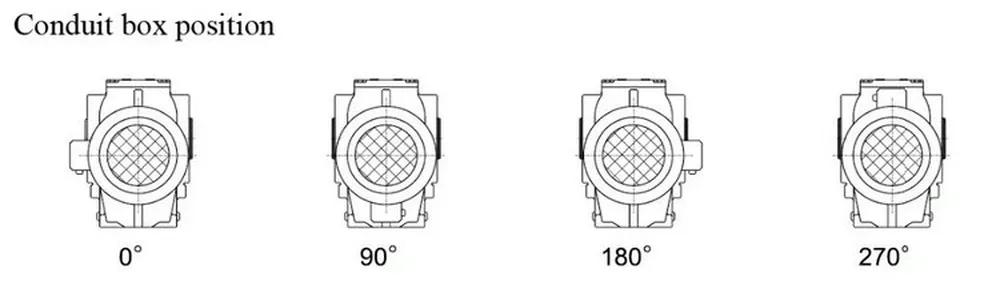

S Series Helical Worm Gearbox Mounting Position
Applications(S Series Helical Worm Gearbox):
The S series helical worm gearbox has high transmission accuracy and is especially suitable for working on occasions with frequent starting. It can be connected to various reducers and equipped with various types of motor drives and can be installed in a 90-degree transmission operating position. Its key components are made of highly wear-resistant materials and undergo special heat treatment, which has the characteristics of high accuracy, stable transmission, small size, large load capacity, and long service life.S series helical worm gearbox is suitable for the following industries:
- Chemical industry and environmental protection
- Metal processing
- Building and construction
- Agriculture and food
- Textile and leather
- Forest and paper
- Car washing machinery
Helical Worm Gearbox Packing and Transportation
- Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
- Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
- Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
- Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
