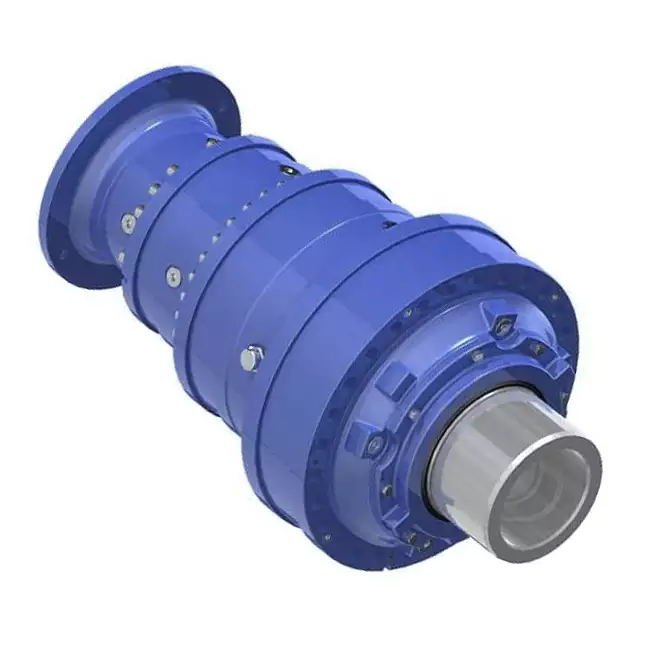

S Series Planetary Gearbox
S Series Industrial Planetary Gear unit, compared with the traditional spiral solution, our S-Series planetary gearbox can save 40% to 60% space and weight, and the modular design can provide better layout flexibility in various applications. The full range includes 34000 to 217000 nm torque values, standard models. Customized solutions is acceptable from standard components, making it an economically viable solution with a standard lead time. Our product series has passed the type approval of DNV certification. Non-standard versions or cases requiring certification by other institutions according to specific circumstances. All S-Series units can equip with negative multi-disc brakes, adapter flanges, and couplings to suit most electric and hydraulic motors.
Feature of S Series Planetary Gearbox
- The best solution for all applications requires high torque capacity and minimal size.
- Optimized torque distribution for all sizes in this range.
- Make full use of the gear capacity by improving the bearing capacity.
- The modular design enables us to customize the gearbox according to each application using standard components.
- Negative parking brake.
- DNV type approval and ABS product design assessment (PDA). The gear design complies with ISO6336, which enables us to obtain other certifications according to specific conditions.
Alternative Brand/Model Inquiry
Note: the installation dimensions of our planet gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox are entirely consistent with the following brands, and their performance parameters are very close to them, which can be used instead of their products.
If you are interested, you can click here to find the specific models that can be replaced.
| Trasmital Bonfiglioli | Brevini Riduttori | Bosch Rexroth | Comer Industries |
| Reggiana Riduttori | Rossi | Zollern |
Tech Data Of S Series Industrial Planetary Gear unit
| Size | Torque 10.000 h [Nm] |
Max Torque [Nm] |
|---|---|---|
| 300 | 34.000 | 76.000 |
| 400 | 40.000 | 84.000 |
| 600 | 63.000 | 140.000 |
| 850 | 88.000 | 195.000 |
| 1.200 | 120.000 | 293.000 |
| 1.800 | 168.000 | 390.000 |
| 2.500 | 300.000 | 570.000 |
| 3.500 | 430.000 | 810.000 |
| 5.000 | 490.000 | 1.100.000 |
| 7.500 | 712.000 | 1.800.000 |
| 10.000 | 1.035.000 | 2.600.000 |
| 15.000 | 1.500.000 | 3.750.000 |
| 20.000 | 2.170.000 | 5.400.000 |
Troubleshooting Of S Series Planetary Gearbox
For the wear problem, the traditional solution is repair welding or brush plating machining repair. Still, both of them have some shortcomings: the high-temperature thermal stress of repair welding can not eliminated, which is easy to cause material damage, resulting in bending or fracture of parts; Moreover, the thickness of the brush coating is limited, and it is easy to peel off. Moreover, the above two methods are metal repair metals, which cannot change the relationship between “hard and hard.” Under the combined action of external forces, it will still cause re-wear. Some large bearings cannot solve on-site.
For the leakage problem, the traditional method needs to disassemble the high torque planetary gearbox, replace the gasket or apply sealant, which is time-consuming and laborious, and also challenging to ensure the sealing effect and the leakage will lead to reoccurrence in operation.
In the long-term operation of high torque planetary gearbox, there are often wear, leakage, and other faults, mainly including the following:
-
High torque planetary gearbox bearing housing wear, including housing bearing housing wear, housing hole bearing housing wear, and gearbox bearing housing wear
-
The gear shaft diameter of the high torque planetary gearbox is worn, and the main worn parts are the shaft head, keyway, etc.
-
The bearing position of the transmission shaft of the high torque planetary gearbox is worn.
-
Water leakage on the assembly surface of ample torque planetary gearbox
