S150 engineering steel bush chain and attachment

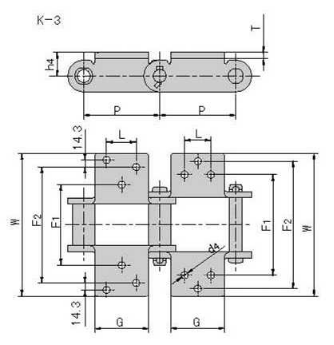

P | G | L | F1 | F2 | W | h4 | d4 | T | |
ANSI Chain No. | mm | mm | mm | mm | mm | mm | mm | mm | mm |
S150 | 153.67 | 109.5 | 69.9 | 190.5 | 292.1 | 347.5 | 47.8 | 13.5 | 13.5 |
S856 | 152.40 | 152.4 | 69.9 | 166.6 | 277.9 | 349.3 | 47.8 | 13.5 | 13.5 |

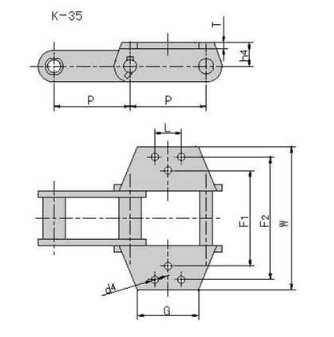

ANSI C ha n N o. | P
mm |
G
mm |
L
mm |
F1
mm |
F2
mm |
W
mm |
h4
mm |
d4
mm |
T
mm |
S856 | 152.4 | 146.1 | 63.5 | 184.2 | 298.5 | 349.3 | 47.8 | 16.8 | 13.5 |

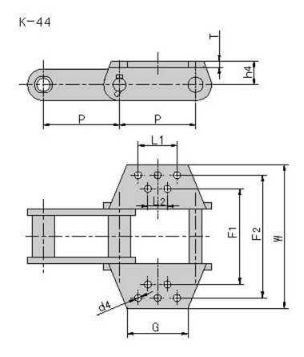

ANSI Chain No. | P
mm |
G
mm |
L1
mm |
L2
mm |
F1
mm |
F2
mm |
W
mm |
h4
mm |
d4
mm |
T
mm |
S857 | 152.4 | 146.1 | 88.9 | 88.9 | 177.8 | 304.8 | 355.6 | 63.5 | 13.5 | 13.5 |
S859 | 152.4 | 146.1 | 114.3 | 69.9 | 228.6 | 330.2 | 381.0 | 76.2 | 16.8 | 13.5 |
S864 | 177.8 | 146.1 | 139.7 | 95.3 | 228.6 | 330.2 | 381.0 | 76.2 | 16.8 | 13.5 |
