SB Series Side Bow Chains 40SB 43SB 50SB 60SB 63SB 80SB
A side bow chain is a type of roller chain with an unusual shape that allows for accentuated lateral bending. These chains are commonly used in power transmission systems and in conveyors with curvilinear motions. They are made with special pins and bushings to minimize the possibility of misalignment. Side bow chains are similar to roller chains except they don’t have a joint between the pin and bush. This feature allows for partial articulation of the chain in the horizontal plane.
SB Series Side Bow Chains

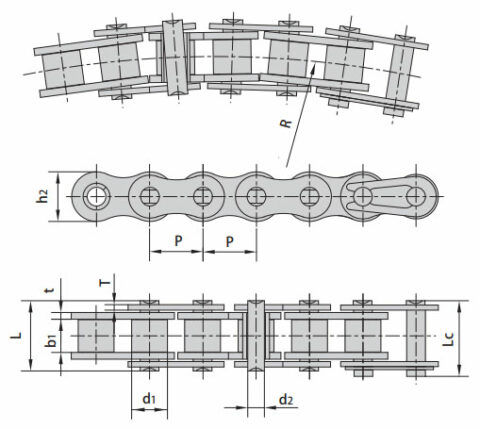

Specifications of SB Series Side Bow Chains
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Side bow radius | Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1 max |
b1 min |
d2 max |
L max |
Lc max | h2 max |
t/T max |
R | Q min |
Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
40SB | 12.700 | 7.95 | 7.85 | 3.96 | 16.9 | 18.1 | 11.7 | 1.50 | 350 | 13.8/3136 | 15.20 | 0.80 |
43SB | 12.700 | 7.95 | 7.85 | 3.45 | 18.3 | 19.5 | 11.7 | 1.50 | 305 | 12.0/2727 | 13.20 | 0.64 |
50SB | 15.875 | 10.16 | 9.40 | 4.37 | 20.7 | 22.7 | 14.9 | 2.03 | 400 | 20.6/4681 | 22.70 | 1.09 |
60SB | 19.050 | 11.91 | 12.57 | 5.34 | 26.6 | 28.4 | 18.0 | 2.42 | 500 | 15.7/3568 | 17.30 | 1.54 |
63SB | 19.050 | 11.91 | 12.68 | 5.08 | 28.8 | 30.6 | 17.2 | 2.42/2.03 | 350 | 12.5/2840 | 20.00 | 1.40 |
80SB | 25.400 | 15.88 | 15.75 | 7.19 | 34.0 | 37.3 | 24.0 | 3.25 | 711 | 40.9/9201 | 42.00 | 2.60 |
#06BSBF1 | 9.525 | 6.35 | 5.72 | 3.05 | 13.5 | 15.0 | 8.2 | 1.30 | 300 | 8.0/1818 | 8.80 | 0.60 |
08BSB | 12.700 | 8.51 | 7.75 | 3.97 | 17.4 | 18.7 | 11.8 | 1.60 | 400 | 14.0/3182 | 15.40 | 0.70 |
08BSBF1 | 12.700 | 8.51 | 7.75 | 3.97 | 16.3 | 17.6 | 11.8 | 1.6/1.2 | 400 | 12.8/2909 | 14.10 | 0.65 |
10BSB | 15.875 | 10.16 | 9.65 | 4.50 | 20.1 | 21.5 | 14.7 | 1.70 | 400 | 15.6/3545 | 17.20 | 0.93 |
12BSB | 19.050 | 12.07 | 11.68 | 5.12 | 23.1 | 24.8 | 16.0 | 1.85 | 500 | 20.5/4658 | 22.60 | 1.16 |
16BSB | 25.400 | 15.88 | 17.22 | 7.90 | 36.5 | 39.7 | 21.0 | 3.7/3.0 | 500 | 55.6/12635 | 64.00 | 2.53 |
#C2050SB | 31.750 | 10.16 | 9.40 | 5.08 | 21.3 | 22.6 | 15.0 | 2.03 | 800 | 21.8/4954 | 24.00 | 0.84 |
#C2060SBF1 | 38.100 | 11.91 | 12.57 | 5.08 | 26.8 | 28.8 | 18.0 | 2.42 | 800 | 21.8/4954 | 24.00 | 1.17 |
#C2062F6SB | 38.100 | 22.23 | 12.57 | 5.34 | 26.6 | 29.0 | 23.0 | 2.42 | 1100 | 15.7/3568 | 17.30 | 2.27 |
#Straight side plates
Side Bow Chains Advantages
There are several advantages of Side bow chains. One of them is that they have a smaller centering projection. This is achieved by the inner link plate having a groove positioned in the middle of it. This groove allows the centering projection to pivot further into the transition region. In this way, the chain can bow sideways and be more stable. In addition, they are much cheaper than conventional designs. Here are some examples of their benefits.
Depending on the size of the sprocket, side bow chains can have a radius of R of less than half the width of the receiving sleeve. They are particularly applicable to screw lifting conveyors, turning machines, and conveyors of food and beverage products. They can also be used in conveyor technology and cleaning technology. And if you have a high-temperature plant environment, you should consider side bow chains.
Another advantage of Side bow chains is their flexibility. They can be adjusted to flex either to the left or the right. Choosing between a conical pin and a loose bush and pin depends on your preferences. The former is cheaper, but has a lower pitching accuracy. The latter has a longer life and is ideal for high-speed operations. Some chains can be customized to fit specific needs, so they can meet specific specifications.
Chains have many advantages. They are widely used for drag and conveyor chains. These chains can negotiate bends thanks to their smaller diameter. Biconical bushes and conical pins are also available. High-pretensioned Power-trans transmission roller chains provide a high level of corrosion protection. They are also highly wear resistant and have better fatigue strength than standard chain designs. And thanks to advanced technology and innovative design, these chains can withstand high loads without the risk of detaching.
SB Series Side Bow Chains 40SB 43SB 50SB 60SB 63SB 80SB
A side bow chain(SB Series Side Bow Chains) is a type of roller chain with an unusual shape that allows for accentuated lateral bending. These chains are commonly working in power transmission systems and in conveyors with curvilinear motions. They are making with special pins and bushings to minimize the possibility of misalignment. Side bow chains are similar to roller chains except they don’t have a joint between the pin and bush. This feature allows for partial articulation of the chain in the horizontal plane.
Because of the extra clearance between bushings, designed for flexible operation on curvy trails. They come in two basic versions, one with a conical pin and another with a loose fit bush and pin. The former is a less expensive option but has lower durability and less precise pitching. The latter offers increased durability and a longer lifespan. Other models can be custom-made according to customer requirements. To find out more about side bow chains, check out the following information.
Roller chains with a side bow are generally making from solid roller links, which have extra clearance between pins and bushings. The links of a side bow chain are generally narrower than those of a standard roller chain, so that they can fit through curved surfaces with ease. In addition, these chains can accommodate standard sprockets, which makes them a versatile solution for curved applications. Manufactured in stainless steel or different coatings to accommodate various needs.
