SD Series Mobile Slewing Drive Planetary Gearbox Replace Brevini Riduttori SD006 SD009 SD012 SD017 SD024 SD033 SD046 SD064 SD090 SD130 SD180 SD250 SD340 SD480

SD Series Mobile Slewing Drive

SD planetary rotary drive series is designed to compact design is suitable for mobile, architectural, marine, Material handling, and other demanding applications to ensure adequate performance and stable operation.

This extensive Brevini planetary gear unit is designed for pinion and slewing ring drives.

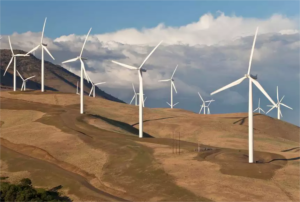

It has been successfully applied to the steering drive of tower cranes, marine and port cranes, wind turbines, and ship propulsion systems. It can be used in all applications requiring precise positioning. These motion system rotary drives suit the most demanding work in various environments.
The design of the planetary mechanism optimizes the torque performance and radial load capacity to achieve the perfect meshing between the pinion and the ring gear. For precise adjustment, some models have eccentric installation between the gear shaft and the housing shaft. With a wide range of transmission ratios, we can choose the size and type of motor that is most suitable for customer requirements and applications. ever-power is proud of its quality assurance policy, including DNV’s type approval certificate.

Tech Data Of SD Series Mobile Slewing Drive

Size	Max Torque [Nm]	Nominal Torque [Nm]
SD006	600	440
SD009	900	670
SD012	1.200	890
SD017	1.700	1.260
SD024	2.400	1.780
SD033	3.300	2.450
SD046	4.600	3.400
SD064	6.400	4.750
SD090	9.000	6.650
SD130	12.600	9.350
SD180	17.600	13.050
SD250	24.600	18.200
SD340	34.400	25.500
SD480	48.200	35.700
SD680	67.500	50.000
SD950	94.500	70.000

1. Including multiple planetary stages
2. Selection of wide gear ratio of 3.66:1 and above
3. Maximum rated torque 14 knm
4. The output assembly is suitable for extreme loads
5. The rotary pinion is suitable for customer specifications
6. The special positive and negative sahr braking system with two brake pistons and two brake ports can achieve the
7. best swing performance and enable the operator to easily “smooth” the boom for smooth operation
8. Including geroller LSHT motor

Alternative Brand/Model Inquiry

Note: the installation dimensions of our planet gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox are entirely consistent with the following brands, and their performance parameters are very close to them, which can instead of their products.
If you are interested, you can click here to find the specific models that can be replaced.

Application of SD Series Mobile Slewing Drive

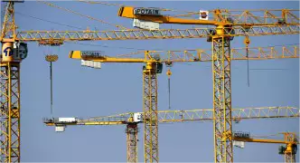

SD motion systems rotary drive gearbox manufactured by us is an important component to minimize the weight and size of tower cranes, aerial work platforms, unloading arms, excavation and construction equipment.

Application Area’s

Drive solutions for slewing drives

The rotary drive operates in a very harsh environment, and the space available for installation is often very small. We have specially designed a powerful and compact industrial reducer solution for this situation.
Flexible combination and super long durability: rotary drive industrial reducer
Solution of rotary drive industrial reducer

In many cases, require reducer to provide rotating torque and fix the load. These are mainly related to cranes (tower cranes and slewing cranes), bucket wheel excavators and palletizers. When rotating the bucket wheel arm, the bucket wheel excavator will directly transmit the impact load caused to the reducer.
Our industrial planetary reducer, industrial bevel gear reducer and Bevel Helical gear reducer are very suitable for such applications. They have strong functions and compact shells, and can cope with the harsh operating conditions of swing drive.
Our industrial reducer solutions are durable, powerful and flexible, and meet all your needs in all aspects – power rating and installation. We provide you with all the important components of swing drive at one time:

• Motor and motor bucket
• Equip the brake between the motor and the reducer, with a torque limiter to prevent excessive load
• protection cover
• Main reducer (helical gear or bevel gear helical gear)
• Planetary reducer with gear shaft and output expansion housing
• Output gear
