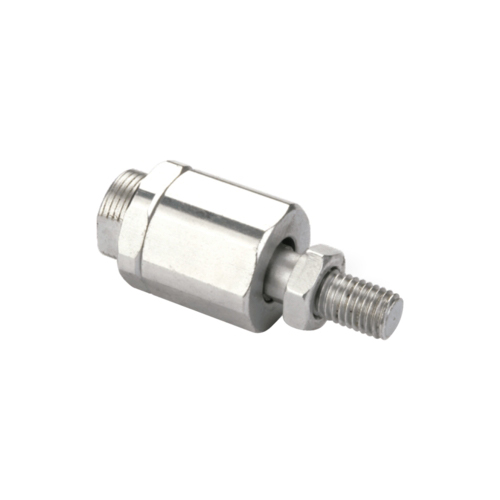

Self-aligned Articulated Couplings FI Series
Self-aligned Articulated Couplings FI Series
 |
Material and surface treatments:
Ball stud and spherical washer: 20CrMo; Heat treatment and zinc plating. Housing, threaded bushing and hex nut: low carbon steel Q235A; Zinc plating. Alternative material: stainless steel 304. Surface passivation. |

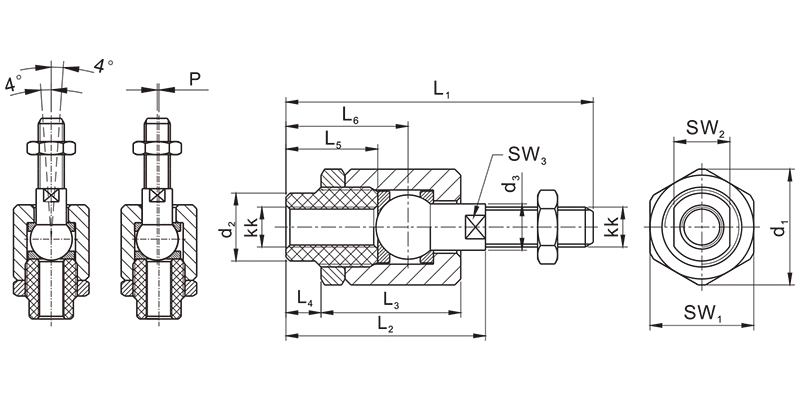

| Part No. | Dimensions | Weight | |||||||||||||
| d1 | d2 | d3 | kk | L1 | L2 | L3 | L4 | L5 | L6 | SW1 | SW2 | SW3 | P | ||
| FI-M4X0.7 | / | / | 3.8 | M4x0.7 | 33.0 | 24.0 | 16.5 | 4.5 | 12.5 | 16.0 | 11 | 11 | 3.2 | 0.5 | 0.015 |
| FI-6-32 | / | / | 3.8 | 6-32 UNC-2B | 33.0 | 24.0 | 16.5 | 4.5 | 12.5 | 16.0 | 11 | 11 | 3.2 | 0.5 | 0.015 |
| FI-10-32 | / | / | 3.8 | 10-32 UNF-2B | 33.0 | 24.0 | 16.5 | 4.5 | 12.5 | 16.0 | 11 | 11 | 3.2 | 0.5 | 0.015 |
| FI-M5X0.8 | 14.5 | 8.5 | 5.8 | M5x0.8 | 38.5 | 25.0 | 17.5 | 4.4 | 11.5 | 15.7 | 13 | 7 | 5 | 0.5 | 0.020 |
| FI-M6X1 | 14.5 | 8.5 | 5.8 | M6x1 | 37.0 | 25.0 | 17.5 | 4.4 | 11.5 | 15.7 | 13 | 7 | 5 | 0.5 | 0.023 |
| FI-M8X1.25 | 19.0 | 12.5 | 7.8 | M8x1.25 | 49.0 | 34.0 | 23.5 | 6.0 | 14.0 | 20.5 | 17 | 10 | 7 | 0.5 | 0.050 |
| FI-5/16-24 | 19.0 | 12.5 | 7.8 | 5/16-24 UNF-2B | 49.0 | 34.0 | 23.5 | 6.0 | 14.0 | 20.5 | 17 | 10 | 7 | 0.5 | 0.050 |
| FI-M10X1.5 | 32.5 | 21.4 | 13.8 | M10x1.5 | 67.5 | 49.5 | 34.0 | 9.0 | 23.0 | 31.0 | 30 | 19 | 12 | 0.7 | 0.210 |
| FI-M10X1.25 | 32.5 | 21.4 | 13.8 | M10x1.25 | 69.5 | 49.5 | 34.0 | 9.0 | 23.0 | 31.0 | 30 | 19 | 12 | 0.7 | 0.210 |
| FI-3/8-24 | 32.5 | 21.4 | 13.8 | 3/8-24 UNF-2B | 69.5 | 49.5 | 34.0 | 9.0 | 23.0 | 31.0 | 30 | 19 | 12 | 0.7 | 0.210 |
| FI-M12X1.75 | 32.5 | 21.4 | 13.8 | M12X1.75 | 70.5 | 49.5 | 34.0 | 9.0 | 23.0 | 31.0 | 30 | 19 | 12 | 0.7 | 0.210 |
| FI-M12X1.25 | 32.5 | 21.4 | 13.8 | M12x1.25 | 74.5 | 50.5 | 34.0 | 10.0 | 24.0 | 32.0 | 30 | 19 | 12 | 0.7 | 0.215 |
FI-1/2-20 |
32.5 | 21.4 | 13.8 | 1/2-20 UNF-2B | 74.5 | 50.5 | 34.0 | 10.0 | 24.0 | 32.0 | 30 | 19 | 12 | 0.7 | 0.215 |
| FI-M16X2 | 45.0 | 33.8 | 22.0 | M16X2 | 97.0 | 71.0 | 53.0 | 10.0 | 32.0 | 44.5 | 41 | 30 | 19 | 1.0 | 0.670 |
| FI-M16X1.5 | 45.0 | 33.8 | 22.0 | M16x1.5 | 103.0 | 71.0 | 53.0 | 10.0 | 32.0 | 44.5 | 41 | 30 | 19 | 1.0 | 0.650 |
| FI-5/8-18 | 45.0 | 33.8 | 22.0 | 5/8-18 UNF-2B | 103.0 | 71.0 | 53.0 | 10.0 | 32.0 | 44.5 | 41 | 30 | 19 | 1.0 | 0.650 |
| FI-M20X1.5 | 45.0 | 33.8 | 22.0 | M20x1.5 | 120.0 | 80.0 | 53.0 | 19.0 | 41.0 | 53.5 | 41 | 30 | 19 | 1.0 | 0.720 |
| FI-3/4-16 | 45.0 | 33.8 | 22.0 | 3/4-16 UNF-2B | 120.0 | 80.0 | 53.0 | 19.0 | 41.0 | 53.5 | 41 | 30 | 19 | 1.0 | 0.720 |
| FI-M27X2 | 62.0 | 61.7 | 27.9 | M27x2 | 156.9 | 102.9 | 79.0 | 12.2 | 42.0 | 62.6 | 55 | 55 | 24 | 1.0 | 2.100 |
| FI-1-12 | 62.0 | 61.7 | 27.9 | 1-12 UNF-2B | 156.9 | 102.9 | 79.0 | 12.2 | 42.0 | 62.6 | 55 | 55 | 24 | 1.0 | 2.100 |
| FI-M36X2 | 80.0 | 80.0 | 38.0 | M36x2 | 251.0 | 179.0 | 136.0 | 22.0 | 78.0 | 110.0 | 75 | 75 | 32 | 1.0 | 5.800 |
| FI-1 1/2-12 | 80.0 | 80.0 | 38.0 | 1 1/2-12 UNF-2B | 251.0 | 179.0 | 136.0 | 22.0 | 78.0 | 110.0 | 75 | 75 | 32 | 1.0 | 5.800 |
Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Leading manufacturer of Self-aligned Articulated Couplings suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Self-aligned Articulated Couplings FI Series are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
